OmniCell 2-Cell CTPC - Page 15

© 2011 Omnicell, Inc. 1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G
CT PC Box Parts 1-7
LCD Bezel Assembly

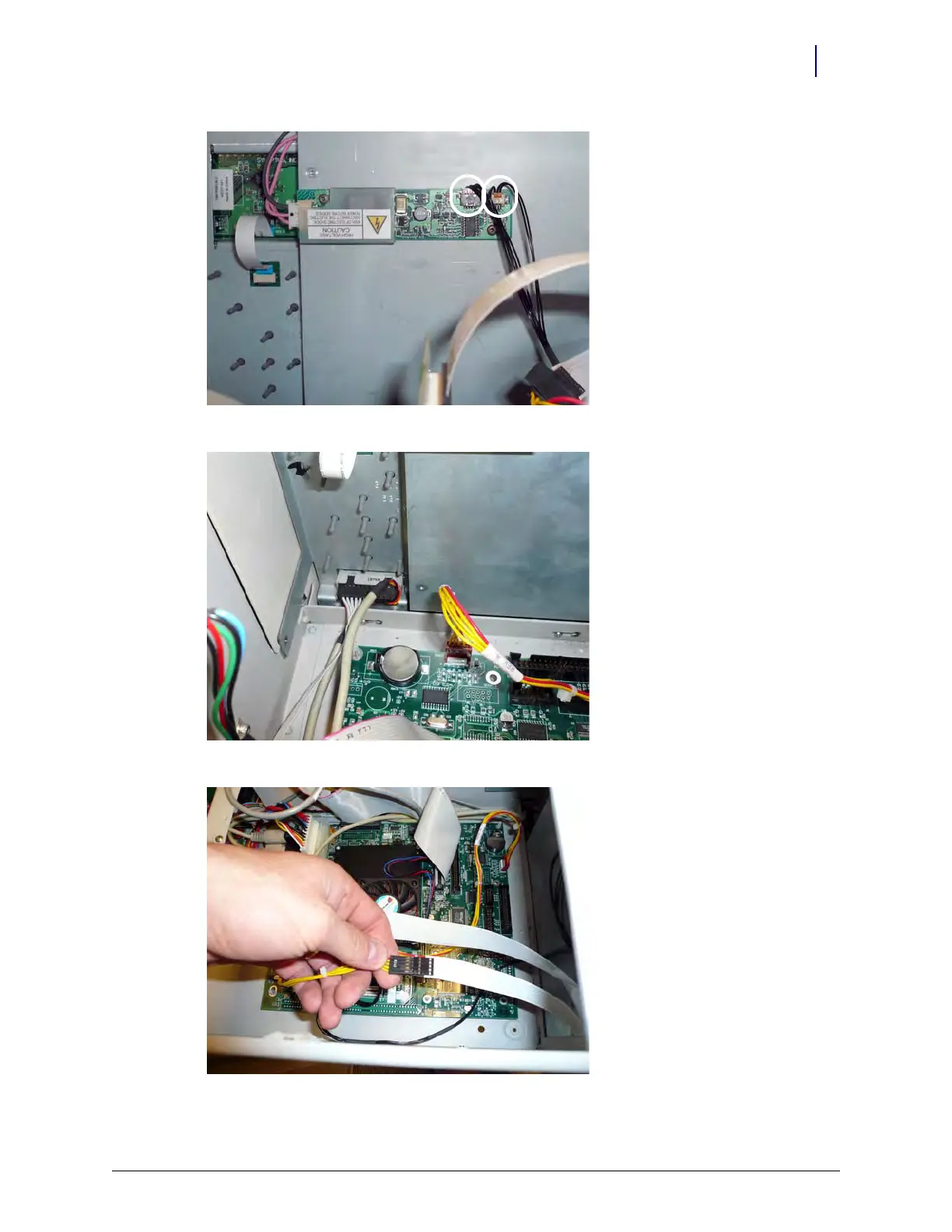

Figure 1-9. Disconnect the LCD data cable and inverter cable
Figure 1-10. Disconnect the 24-pin keyboard harness assembly
Figure 1-11. Disconnect the touch screen data cable
