13-20 G4 PC Box Service
Remove and Replace the Keyboard and Printer Panel
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
4. Remove the four TORX fasteners from the right printer to remove it.

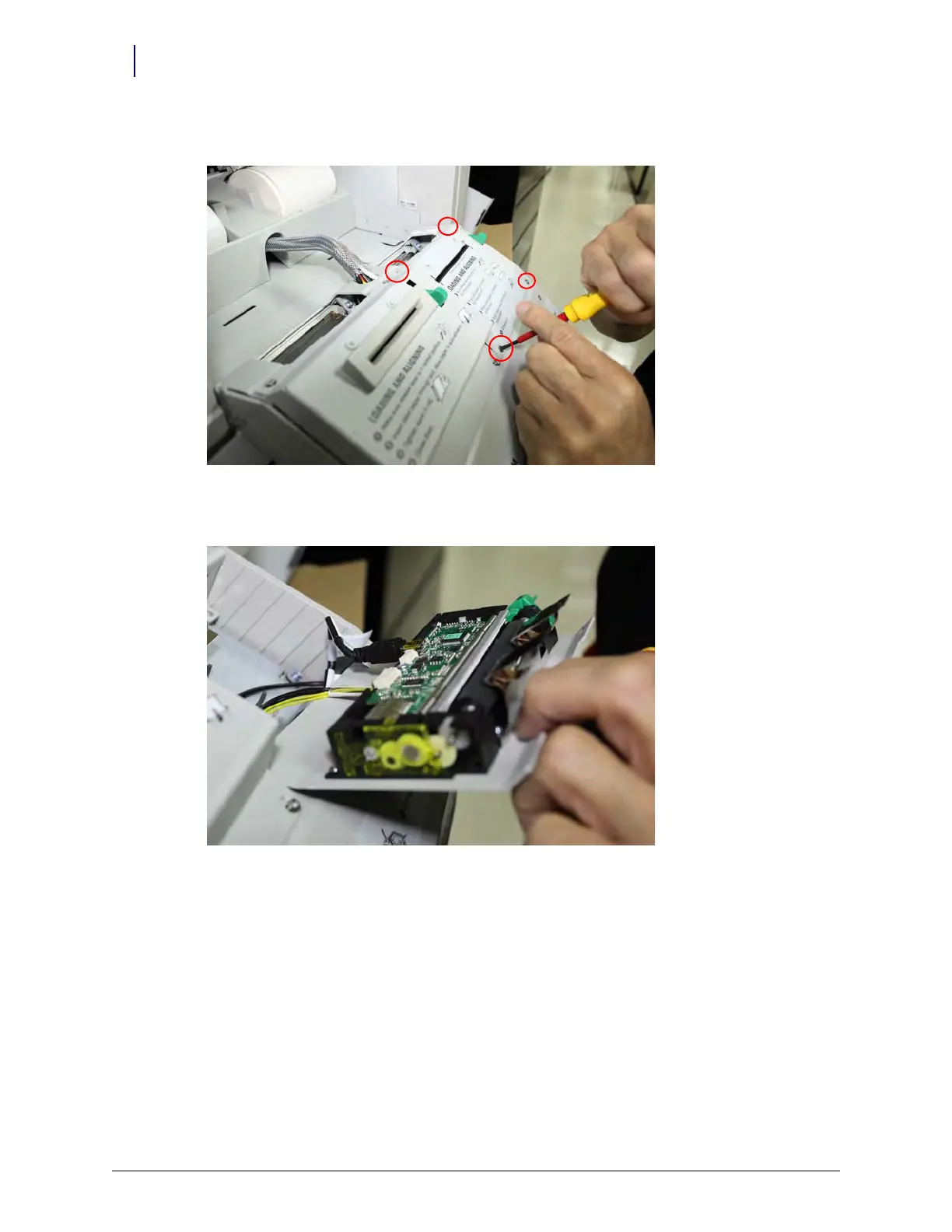

Figure 13-36. Remove the four screws from the rear of the right printer
5. Rotate the right printer forward to gain access to the connections on the rear.
Figure 13-37. Gaining access to the right printer connections
