Remove and Replace the Keyboard and Printer Panel
17. Remove the speaker cable from the keyboard chassis circuit board. The speaker connection is
hidden under the sheet metal of the chassis.

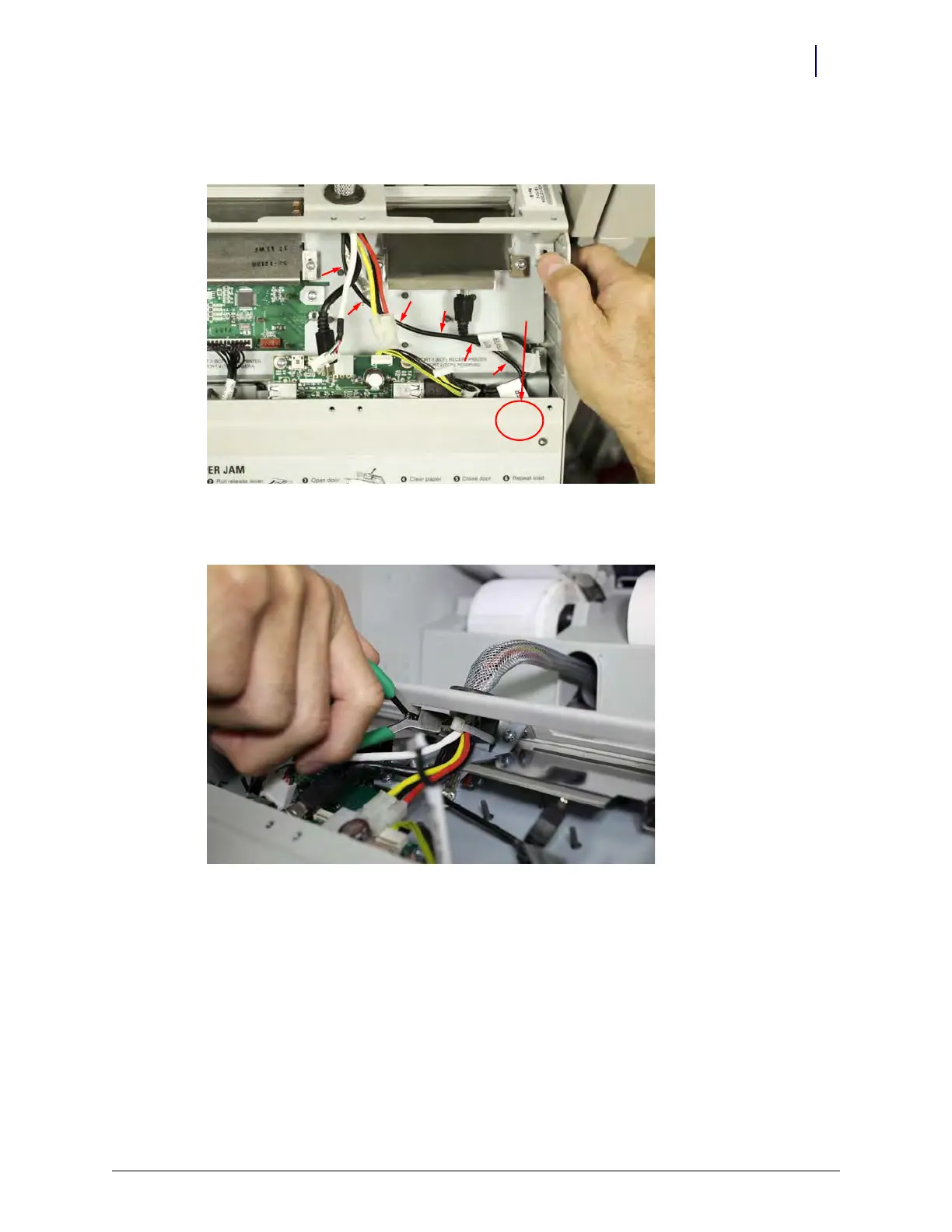

Figure 13-46. The circle highlights the location of the speaker connection
18. Cut the cable tie securing the power/data/USB cable bundle.
Figure 13-47. Removing the strain-relief zip-tie
