© 2011 Omnicell, Inc. 1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G
Manual Override 9-5
Removal Procedure
13. Remove the four screws securing the right carrier wall to the right side of the frame.

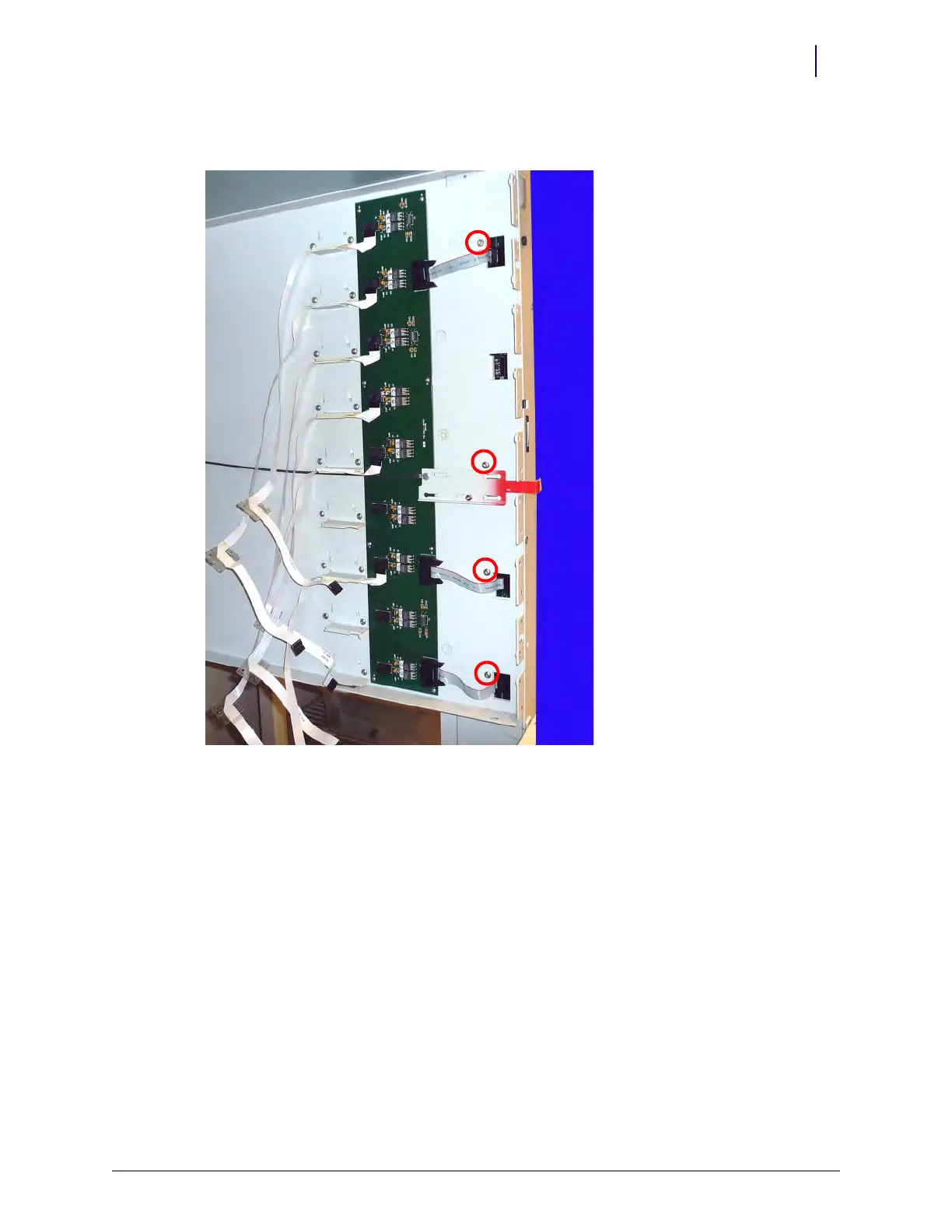

Figure 9-8. Remove the four screws securing the right carrier wall to the right side of the frame
14. Remove the right and rear carrier walls together.
