9-4 Manual Override
Removal Procedure
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
10. Remove the two screws securing the left carrier wall to the back of the frame.

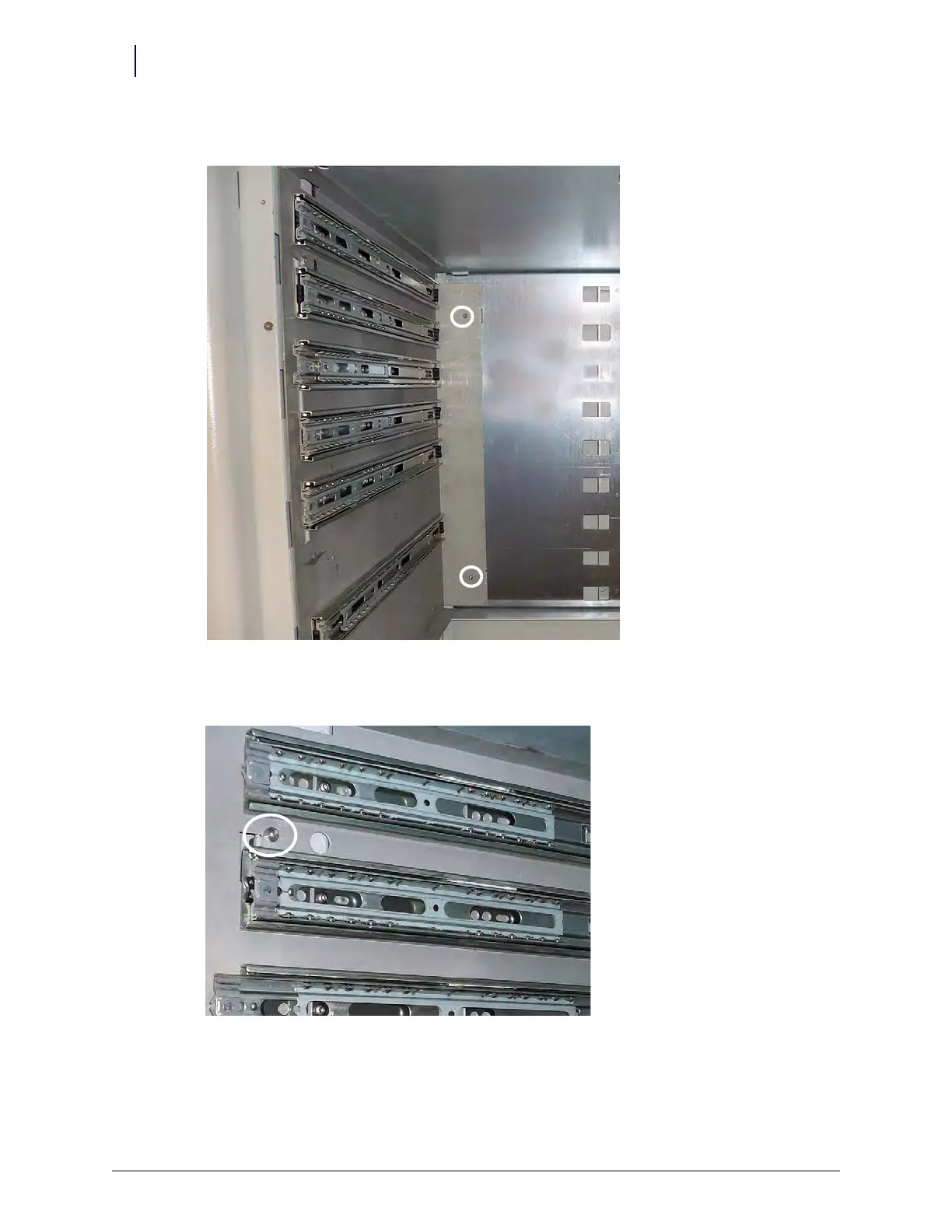

Figure 9-6. Remove the Two Screws Securing the Left Carrier Wall to the Back of the Frame
11. Remove the buttonhead screw securing the left carrier wall to the left side of the frame.
Figure 9-7. Remove the buttonhead screw securing the left carrier wall to the left side of the frame
12. Remove the left carrier wall.
