4-40
4-2 Function Mode
4
Functions

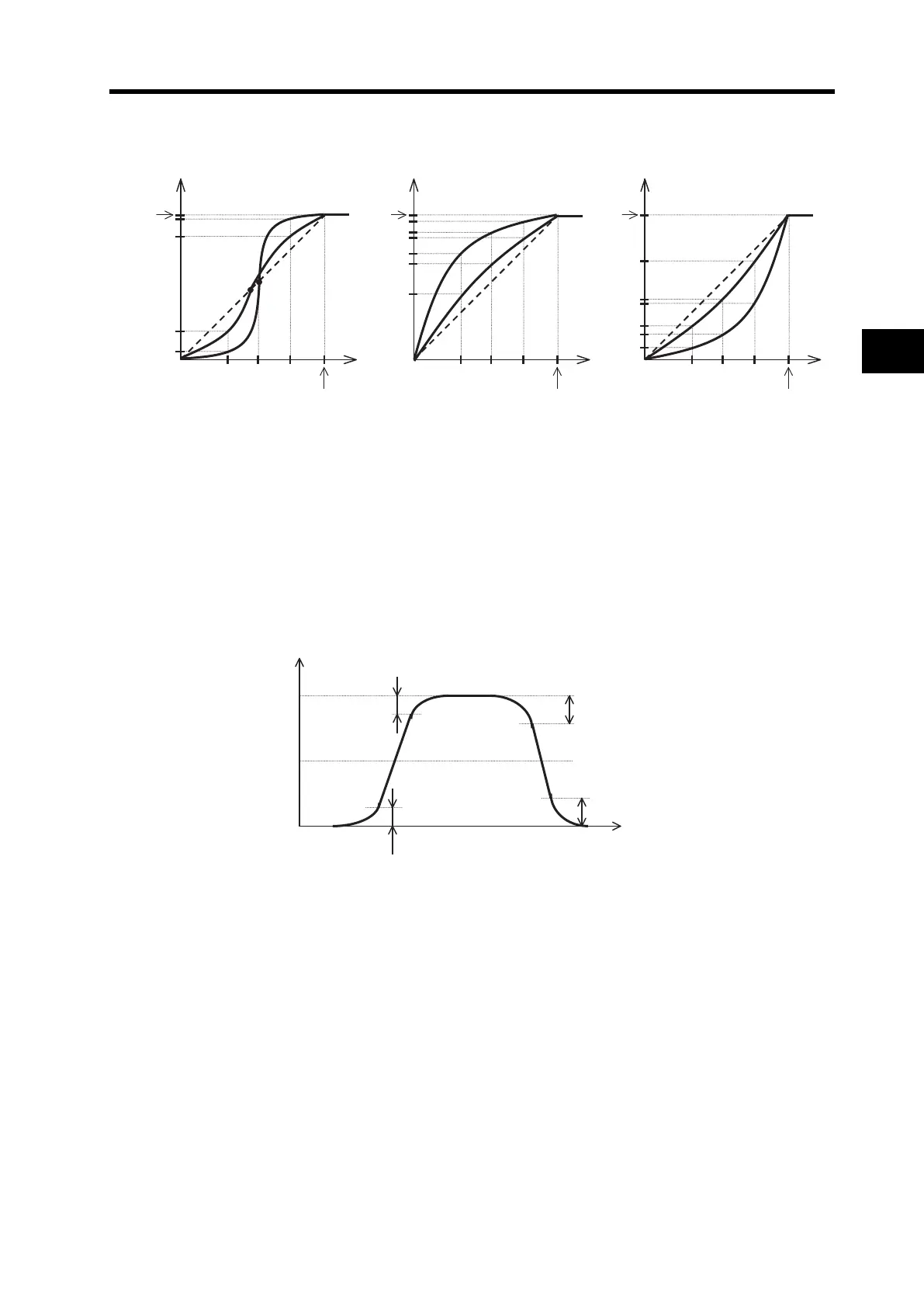

Pattern Curve Parameter (Curve Factor)
Determine a curve factor with reference to the figures below.
The S pattern has an intermediate section where acceleration/deceleration time is shortened.
If LAD cancel (LAC) is selected for a multi-function input and that input is turned on, the
acceleration/deceleration pattern is ignored, and the output frequency instantaneously follows the
reference frequency.
EL-S Curve Ratio
If the EL-S pattern is used, you can set a curve ratio (A151 to A153) individually for acceleration and
deceleration.
If all settings are "50 (%)", the Inverter operates in the same manner as with the S curve.
Output frequency (Hz) Output frequency (Hz) Output frequency (Hz)
Target
frequency
(100%)
Target
frequency
(100%)
Target
frequency
(100%)
96.9
82.4
17.6
3.1
02
25
50 75
10
10 02
Time
Acceleration time before reaching the
output frequency set value (100%)
99.6
93.8
87.5
68.4
64.6
35
25
50 75
Time
Acceleration time before reaching the
output frequency set value (100%)
65
35.4
31.6
12.5
6.25
0.39
25
50 75
Time
Acceleration time before reaching the
output frequency set value (100%)
10
02
10
10
02
Output frequency ratio (%)
100
50
Curve ratio 2 during
acceleration (A151)
Curve ratio 1 during
acceleration (A150)
Curve ratio 1 during
deceleration (A152)
Curve ratio 2 during
deceleration (A153)
Time(s)
