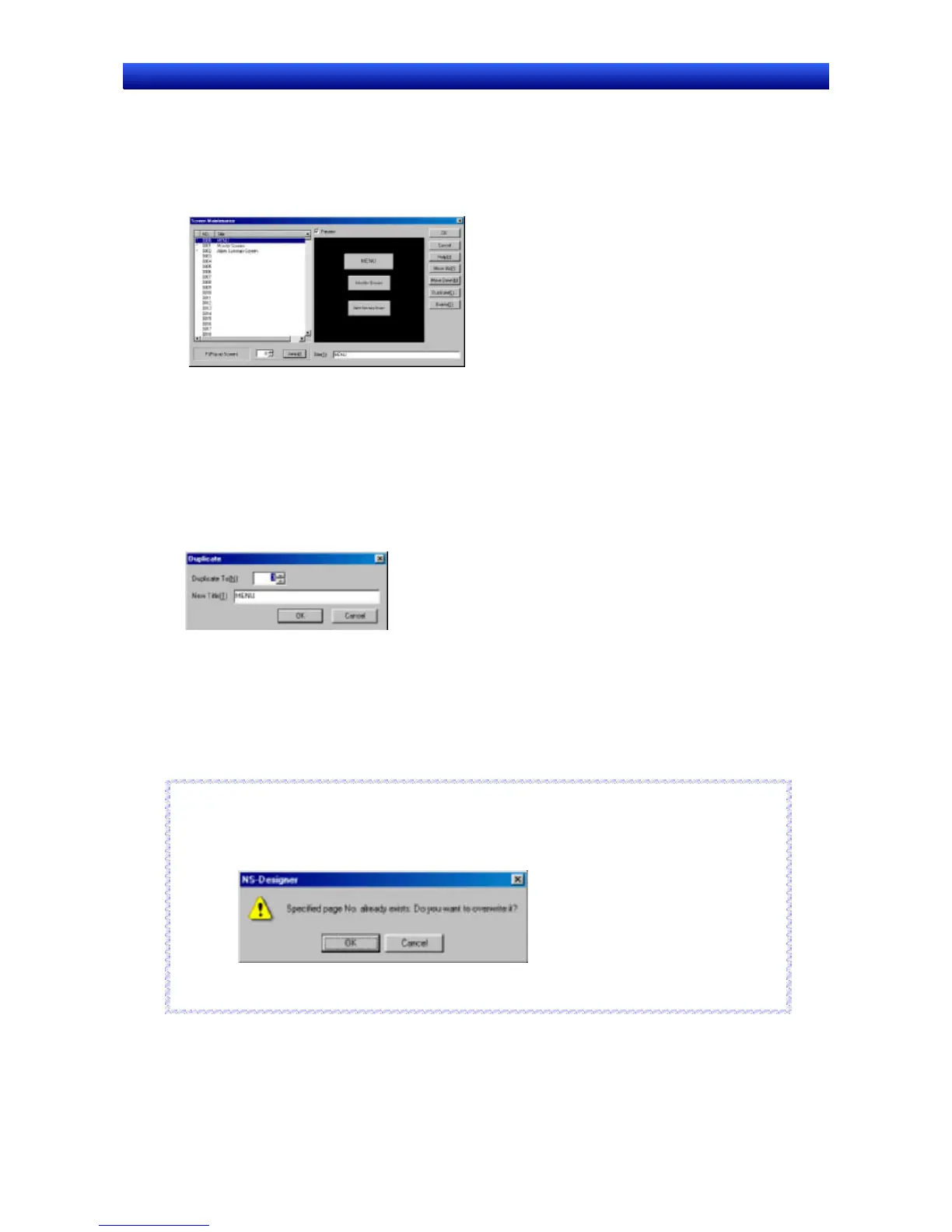

Section 4 Screen Types and Operations 4-2 Creating and Saving Screens
NS-Designer Operation Manual
4-2-3 Procedure
The screen maintenance procedure is as follows:
1. Select Tools - Screen Maintenance.
The Screen Maintenance Dialog Box will be displayed.
2. Select the screen on which maintenance will be performed.
3. Perform maintenance as follows:
Switching Screen Page Numbers
Click the Move Up and Move Down Buttons to switch to higher or lower page numbers.
Copying
Click the Duplicate Button to display the following dialog box, and then set the destination screen
page number and the new screen title.
Deleting
Click the Delete Button.
Changing Titles
Enter the new title in the title column.
4. Click the OK Button.
Reference
If the screen page number to be copied is already being used, the following dialog box will be dis-
played. Click the Cancel Button and specify a different screen page number to stop the screen
being overwritten.
Screens that have been deleted cannot be restored. Therefore, check the screen page number
carefully before deleting it.
