Section 1 Overview 1-3 Basic Configuration and Functions
NS-Designer Operation Manual

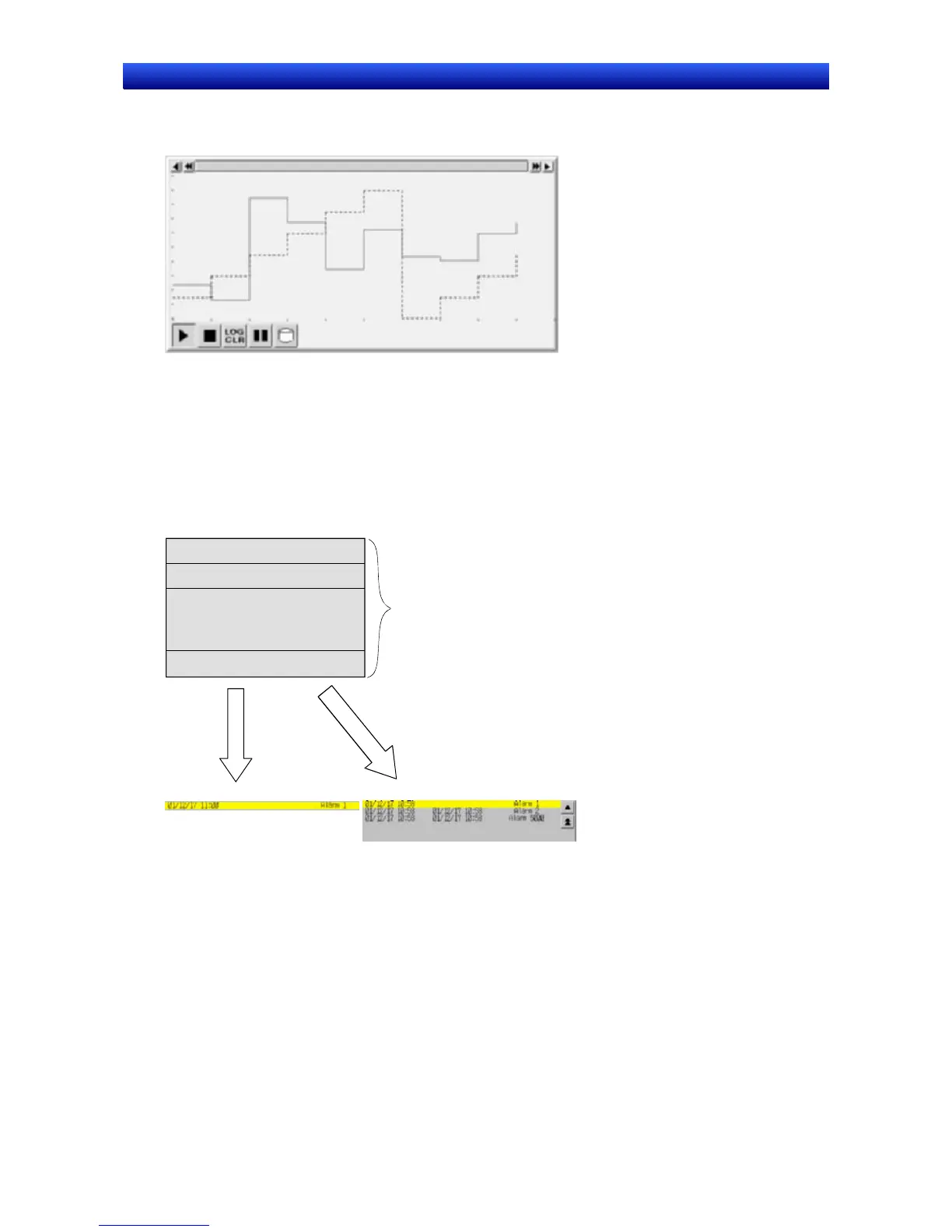

1-3-8 Data Log
The stored data for specified addresses is displayed as a graph.
Up to 100 groups can be registered for each project. Up to 16 addresses can be registered for each
group.
Up to 50 addresses can be registered for constant logging.
1-3-9 Alarms/Events
Addresses can be registered for alarm monitoring to provide notification for alarms from the specified
addresses. Registration can also be used to display events, such as operation startup.
Alarm-related functional objects can be used to display alarms and events that have occurred or to
display alarm/event histories.
List
Alarm 1
Alarm 2
•
•
•
•
•
Alarm 500
Up to 5,000 alarms can be registered.
Simple Display
1-13

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
