Section 4 Screen Types and Operations 4-4 Frames
NS-Designer Operation Manual
4-4 Frames
Frames are used to switch a part of the display contents in screens.
Frames consist of more than one page. The display contents can be switched by switching the pages
according to their address value.
The following objects can be arranged in the frames.
Fixed objects •
•
•
Functional objects (Except Video Displays and Data Block Tables)
Table s

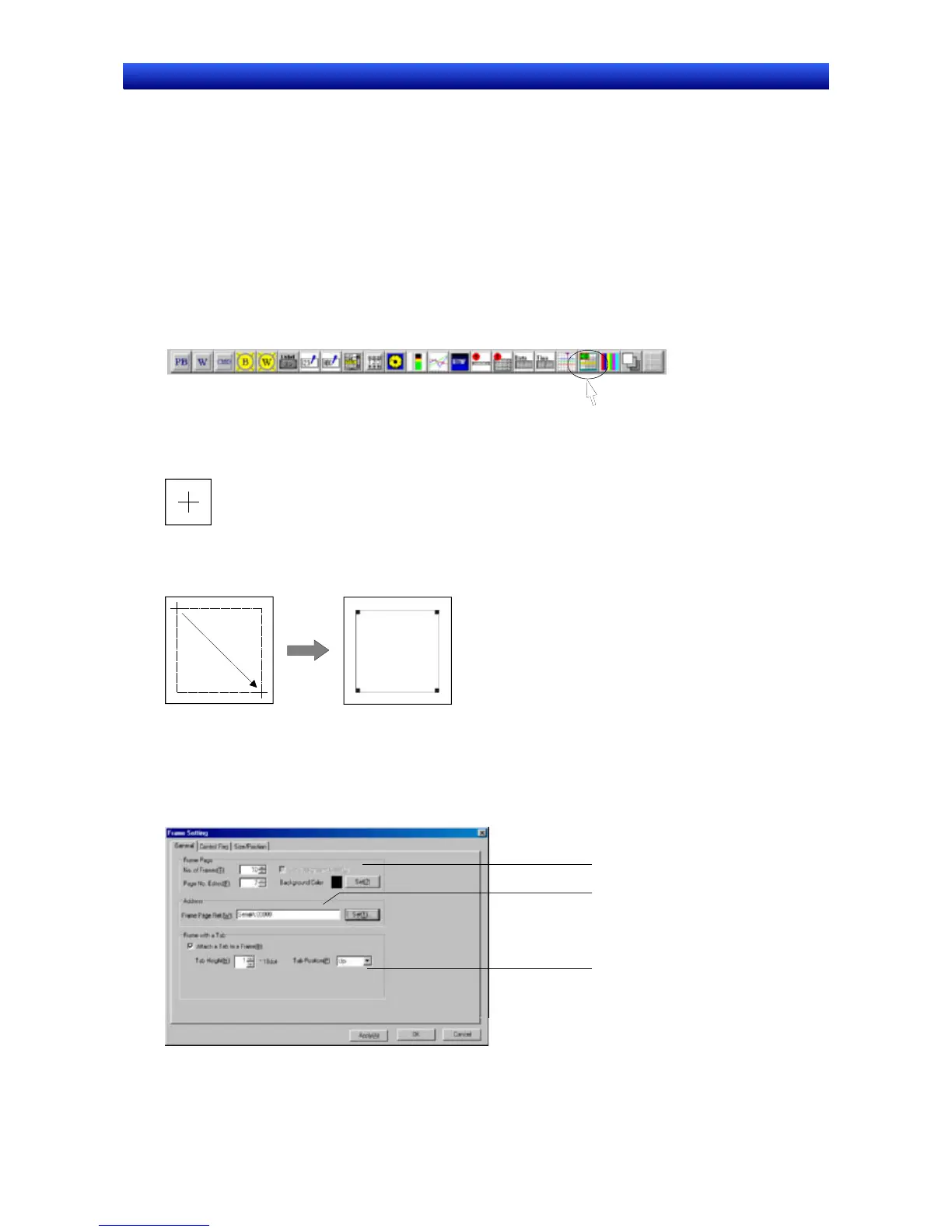

1. Select Functional Objects - Frame or click the Frame Button in the toolbar.
Toolbar
2. The cursor display will change to the following shape.
3. Move the cursor to the position of the frame’s first point.
4. Drag the cursor (by clicking the left mouse button and keeping it pressed while moving the mouse)
until it is positioned at the end point of the frame display area.
Drag
5. Select the frame, and then select Settings - Object Properties or click the right mouse button to
display the pop-up menu and select Frame Properties.
The Frame Setting Dialog Box will be displayed.
General Tab Page
1
2
3
4-28
To Next Page
