Omron NS User Manual

Section 3 Manipulating Project Files 3-7 Opening Template Projects
NS-Designer Operation Manual
3-7-1 Specifying Template Projects (Flowchart Step 1)
1. Select File – Select Template Project.

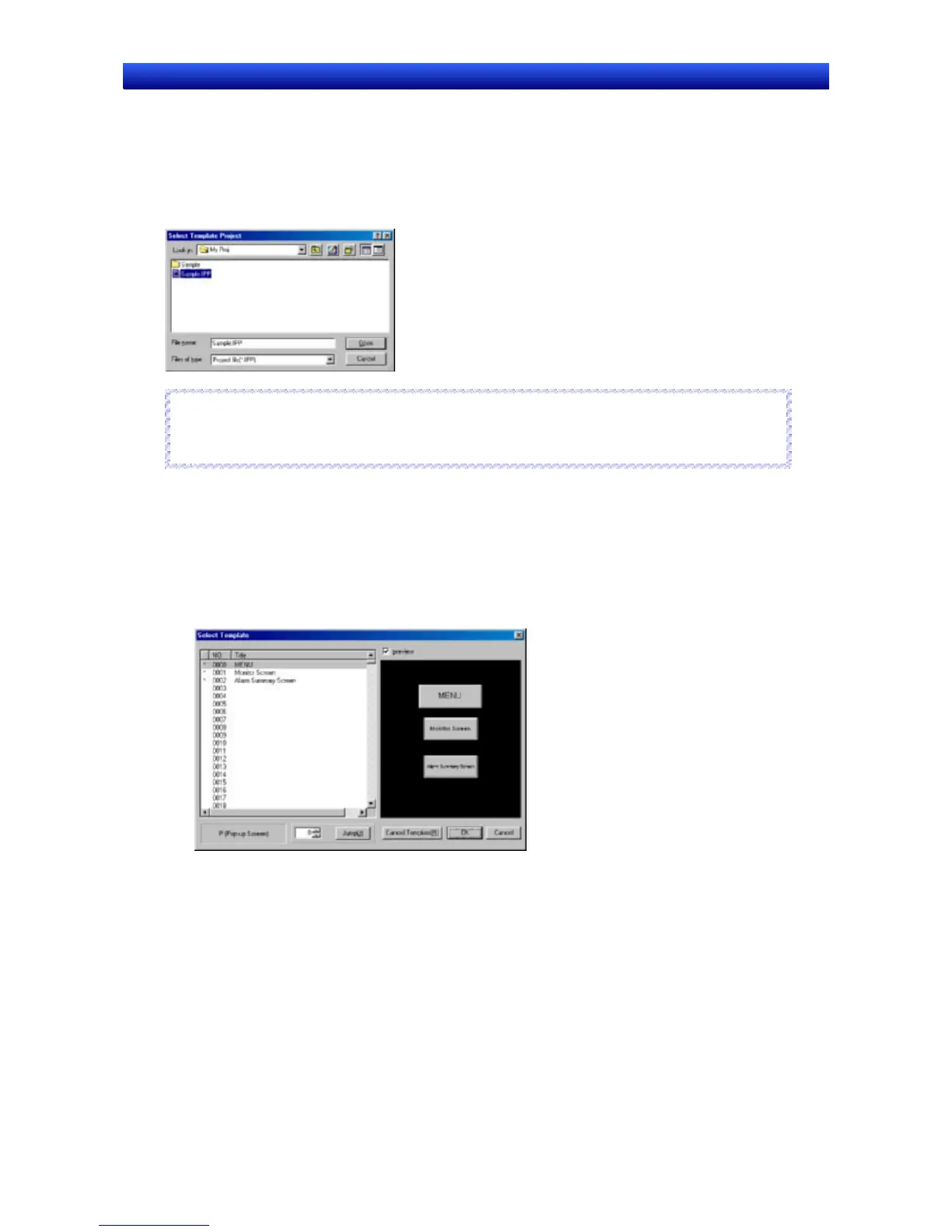

2. The Select Project Dialog Box will be displayed. Select the project to be specified as a template
project and click the Open Button.
Reference
♦ When changing template projects, specify the project again by selecting File – Select Template
Project.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
3-7-2 Reusing Screens (Flowchart Steps 2 to 4)
1. The Select Template Dialog Box will be displayed each time a new screen is created. (Flowchart
steps 2 and 3)
Select the screen to be reused. (Flowchart step 4 (a))
When not reusing the screen, click the Cancel Button to return to the standard procedure for cre-
ating a new screen. (Flowchart step 4 (b))
2. Click the OK Button.
3. The selected screen will be reused as the new screen.
3-10

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
