Section 5 Object Operations 5-6 Colors
NS-Designer Operation Manual NS-Designer Operation Manual NS-Designer Operation Manual
5-6 Colors

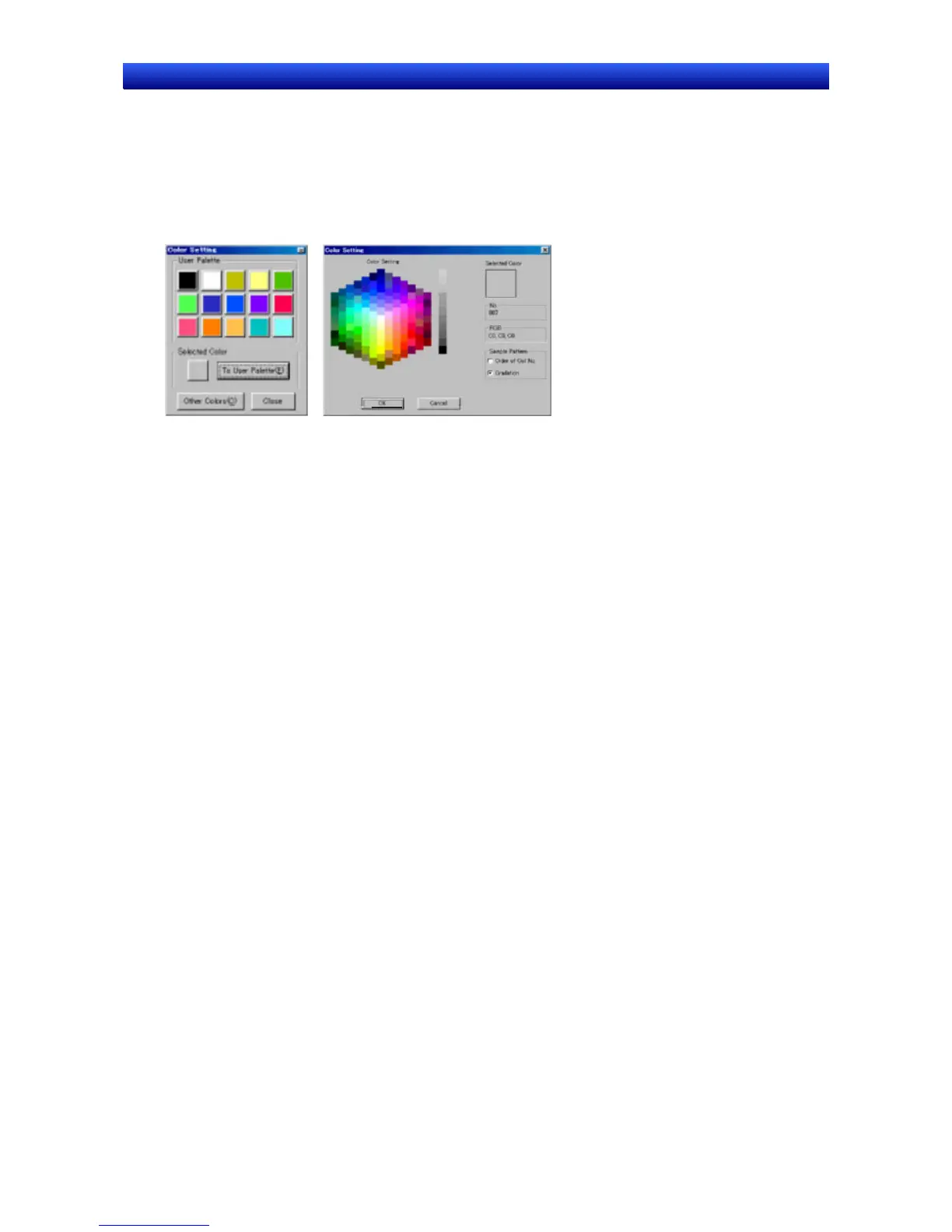

Display colors for functional and fixed objects and other colors are selected in the Color Setting Dialog
Box. There are two kinds of Color Setting Dialog Boxes. Select the Color Setting Dialog Box that will
normally be used from the Color Dialog Tab Page under Tools – Options. Refer to 5-16 Options for de-
tails.
The method for displaying the Color Setting Dialog Box is described below. Refer to Setting Colors
under 2-8 Common Functional Object Functions in the NS Series Programming Manual for details on
the dialog box.
Property Setting Dialog Boxes
Click the Setting Button next to the color settings column in each Property Setting Dialog Box to dis-
play the Color Setting Dialog Box.
Toolbar
Select the object and click the ▼ Button on the color toolbar to display the Color Setting Dialog Box.
5-35

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
