Section 4 Screen Types and Operations 4-3 Sheets
NS-Designer Operation Manual
1
2
3
4

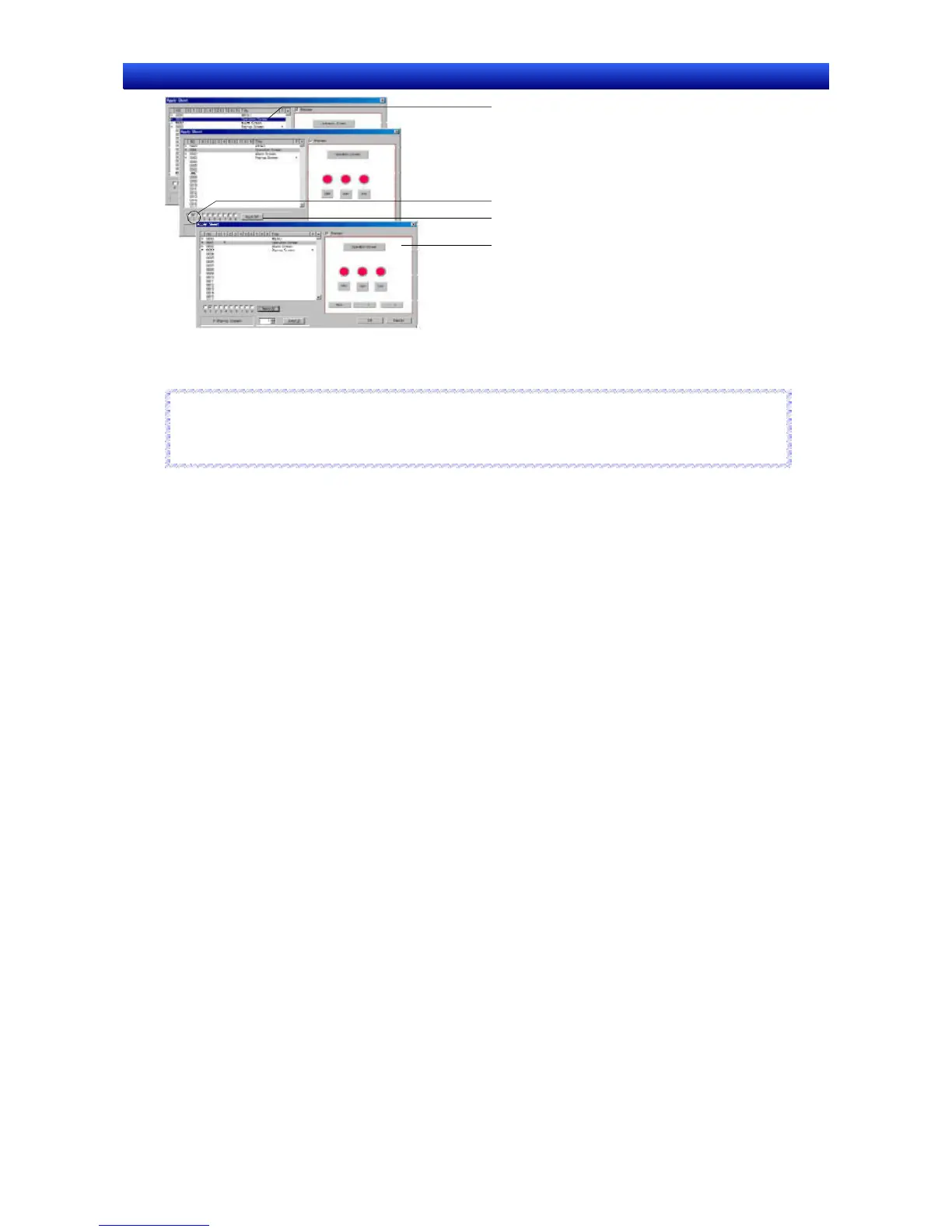

5. Apply the settings and then click the OK Button.
Reference
♦ If the sheet has not been saved, it will not be reflected in the preview display even when the Apply
Button is pressed.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
4-3-6 Sheet Maintenance
This function is used to display the list of sheets, copy and delete sheets, switch sheet page numbers,
and change sheet titles.
Procedure
The sheet maintenance procedure is as follows:
1. Select Tools - Sheet Maintenance.
2. The procedure is the same as for Screen Maintenance. Refer to Screen Maintenance under 4-2
Creating and Saving Screens for details.
4-27

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
