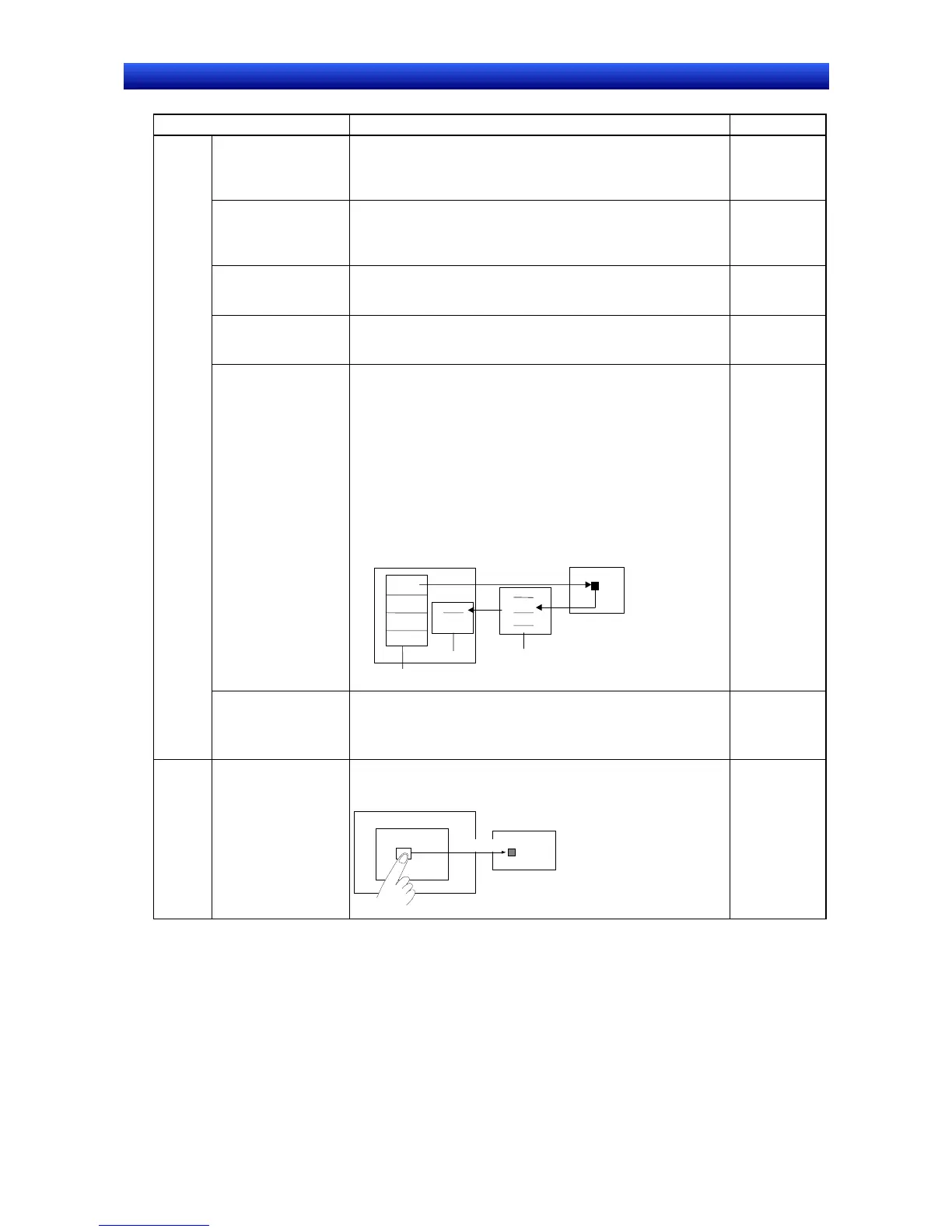

Appendices Appendix 1 Quick Reference
A-4
N
S
-
Desi
g
ner O
p
eration Manual
Item Procedure Reference
PLC
word
status
display
Displaying a broken-
line graph
Create a broken-line graph object (Functional Object - Bro-
ken-line Graph).
Programming
Manual Sec-
tion 2-15
Displaying text string
data
Create a String Display and Input object (Functional Object -
String Display & Input). To prevent input, turn ON Display
Expansion Tab on the Control Flag Tab Page of the Property
Setting Dialog Box and disable input.
Programming
Manual Sec-
tion 2-11
Displaying a data log
graph
Create a data log graph object (Functional Object - Data Log
Graph).
Programming
Manual Sec-
tion 2-14
Changing the color of
a lamp based on PLC
word status
Create a word lamp object (Functional Object - Word Lamp).
The lamp can be switched among 10 colors.
Programming
Manual Sec-
tion 2-10
Displaying detailed
information and coun-
termeasures by press-
ing an alarm/event
summary history ob-
ject
1. Turn ON the Write Alarm ID to the Specified Address setting
on the General Tab Page of the Property Setting Dialog Box
for an alarm/event summary history object (Functional Ob-
jects - Alarm/Event Summary History) and set a write ad-
dress for the PLC word.
2. Create text objects (Functional Object - Text).
3. Select indirect specification of the text string on the Text Tab
Page and set the same PLC word as set in step 1.
When an alarm or event occurs, an ID number will be written
to the specified address and the text will be changed accord-
ing to the value of the number.
Programming
Manual Sec-
tion 2-13
Displaying recipe data
1. Create a data block table object (Functional Object – Data
Block Table).
2. Set the data block to be displayed on the General Tab Page
of the Property Settings Dialog Box.
Programming
Manual Sec-
tion 2-16
Writing
data to
the PLC
Turning ON/OFF a
PLC from the PT
Create a button that will turn ON/OFF the specified bit using an
ON/OFF button object (Functional Object - ON/OFF Button).
Screen
ON/OFF
PL
C
Bit address
PT
Programming
Manual Sec-
tion 2-9
ID
1.
2.
ID
NS
Label
PLC
write
Alarm/Event
Summary & History
2.
3
Display
Text string file
reference

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
