Section 6 Programming Macros 6-1 Registering Macros
NS-Designer Operation Manual NS-Designer Operation Manual NS-Designer Operation Manual

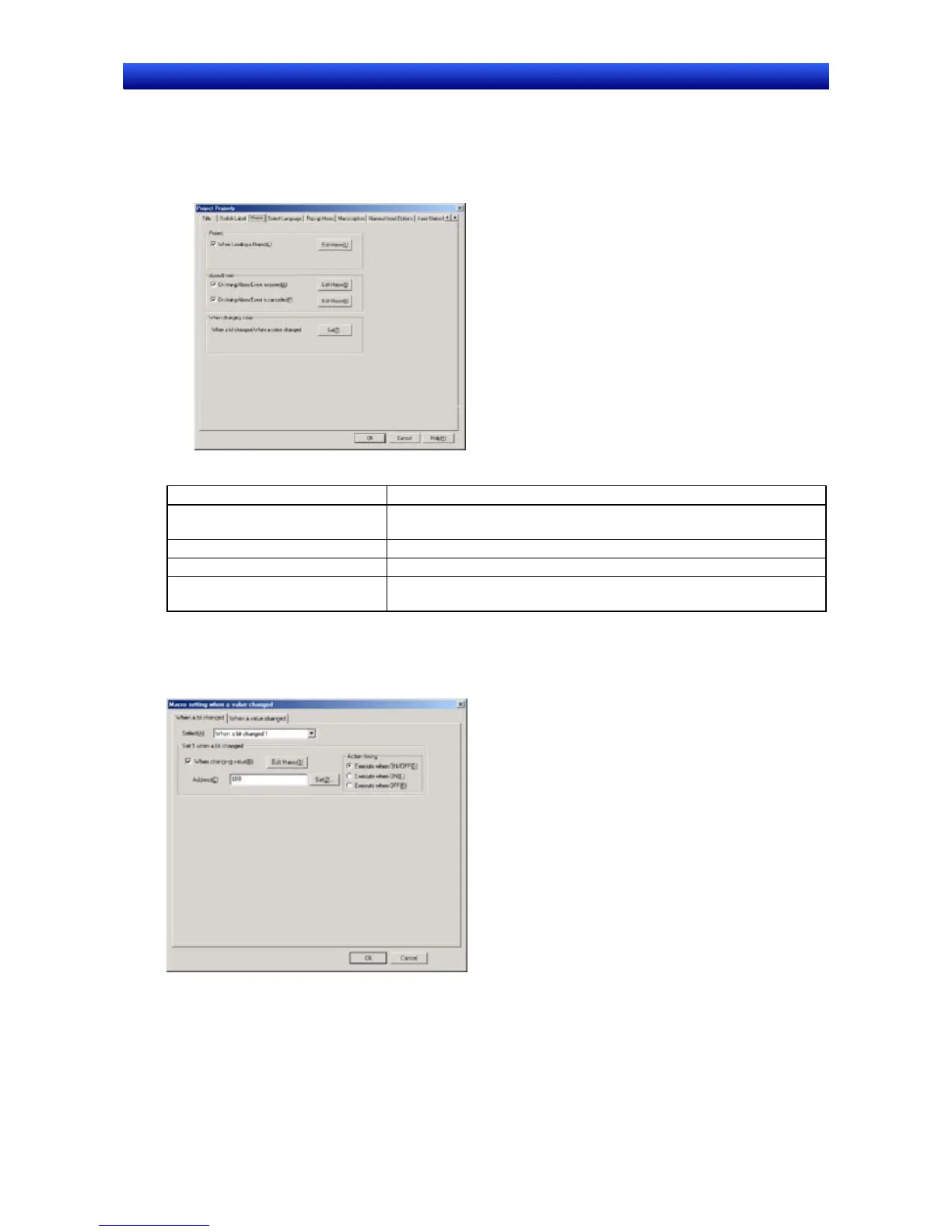

6-1-1 Registering Macros to Projects
Use the following procedure to register macros to projects.
1. Select Settings - Project properties.
2. The Project Properties Dialog Box will be displayed. Click the Macro Ta b.
3. Select from the following four execution conditions.
Macro execution condition Description
When Loading a Project Executes the macro immediately before loading the first screen after a
project is opened.
On timing Alarm/Event occurred Executes the macro when an alarm occurs.
On timing Alarm/Event is cancelled Executes the macro when the alarm is cleared.
When a bit changed/When a value
changed
Executes the macro when the bit of the specified address turns ON or
OFF or when the value of the word of the specified address changes.
4. Click the Edit Macro Button to display the Edit Macro Dialog Box.
5. Input the program and then click the OK Button.
When a Bit Changes
6-2

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
