Section 4 Screen Types and Operations 4-3 Sheets
NS-Designer Operation Manual

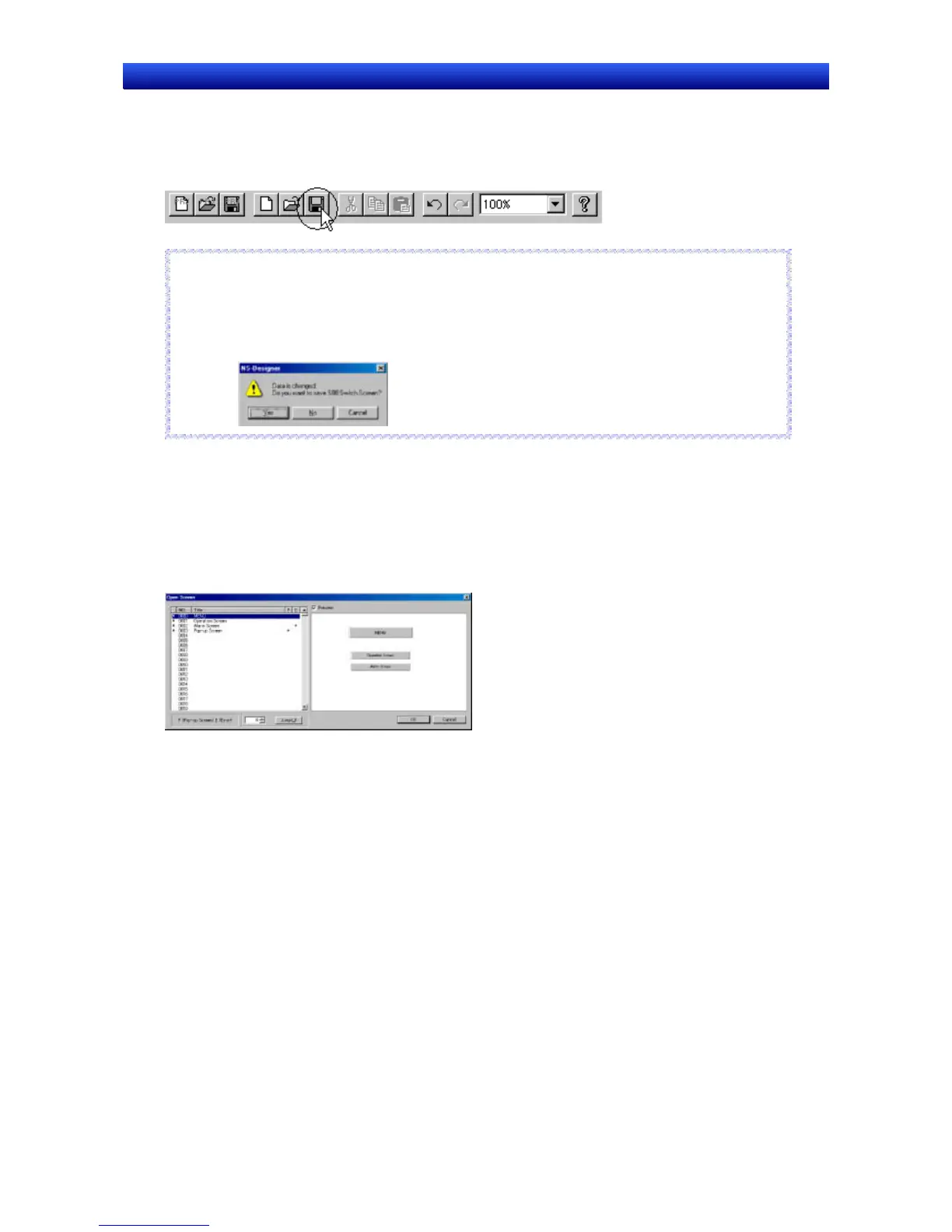

4-3-4 Saving Sheets
Select File - Save Screen or click the Save Screen Button in the toolbar.
Toolbar
Reference
♦ The shortcut keys for saving are the Ctrl + S Keys.
♦ If a sheet has been changed but not saved yet, a dialog box confirming whether to save the
changes will be displayed when the sheet is closed.
Click the Yes Button to save the changes.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
4-3-5 Applying Sheets
The methods for applying sheets to screens are described here.
1. Open the project where the sheet will be applied.
2. Select File - Apply Sheet.
The Apply Sheet Dialog Box will be displayed.
3. Apply the sheet to the screen.
a. Select the screen.
b. Select the sheet page number to be applied.
c. Click the Apply Button.
A preview will be displayed of the screen to which the sheet was applied.
4-26

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
