Section 4 Screen Types and Operations 4-3 Sheets
NS-Designer Operation Manual

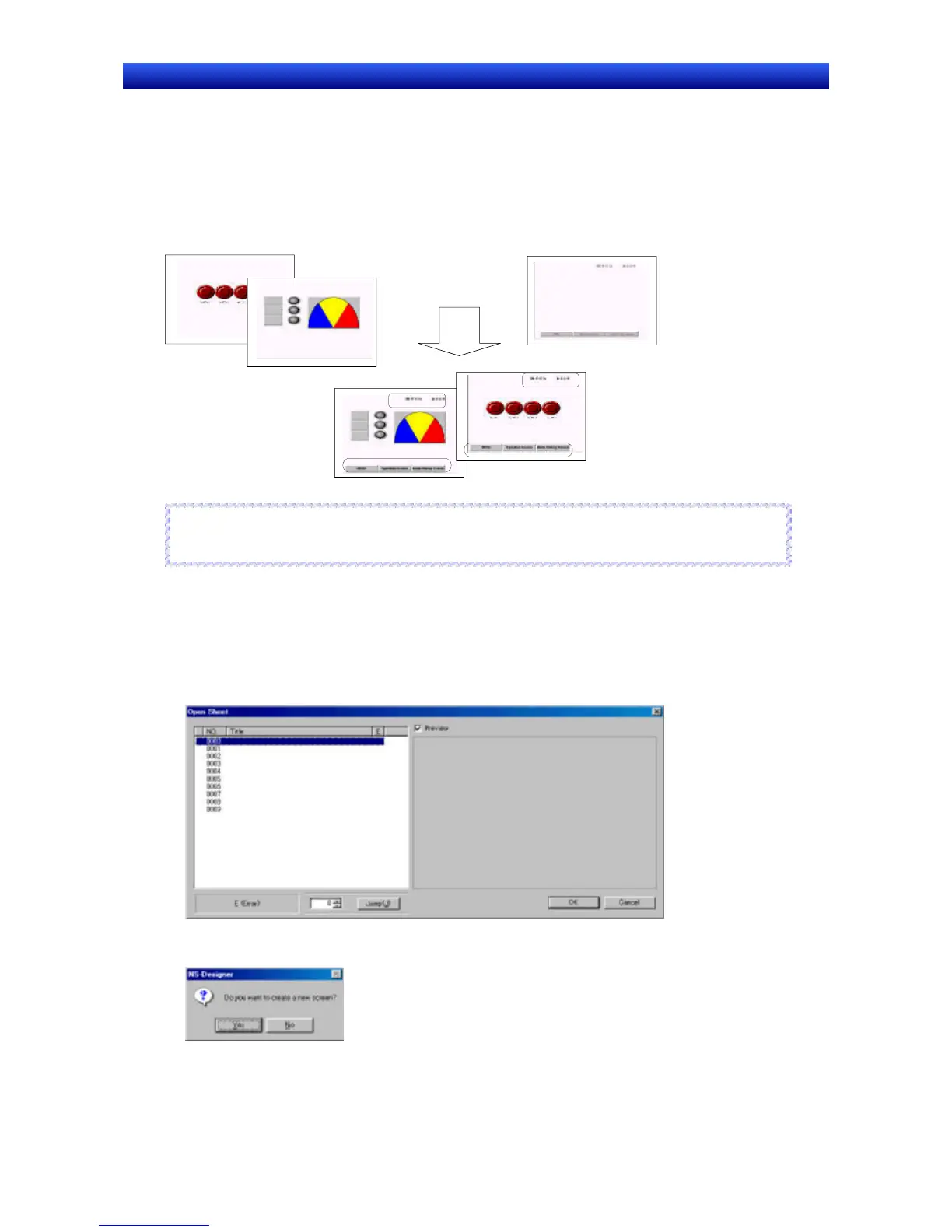

4-3 Sheets
The basic sheet operations are explained here.
Sheets are screens that can be displayed in layers on multiple user screens. If, for example, objects
common to each screen such as the date, time, and screen switching objects are created as a sheet,
they can be used in more than one screen by performing some simple settings.
Base Screen/Pop-up Screen Sheet Screen
Applied
Reference
♦ Video Displays and Data Block Tables cannot be created on sheets.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
4-3-1 Creating New Sheets
1. Open the project that will be used to create the sheet.
2. Select File - Open Sheet.
3. The Open Sheet Dialog Box will be displayed.
Select the sheet page number to be created and then click the OK Button.
4. The following dialog box will be displayed.
Click the Yes Button.
The new sheet will be displayed.
4-24

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
