Section 3 Manipulating Project Files 3-1 Projects
NS-Designer Operation Manual
3-1 Projects

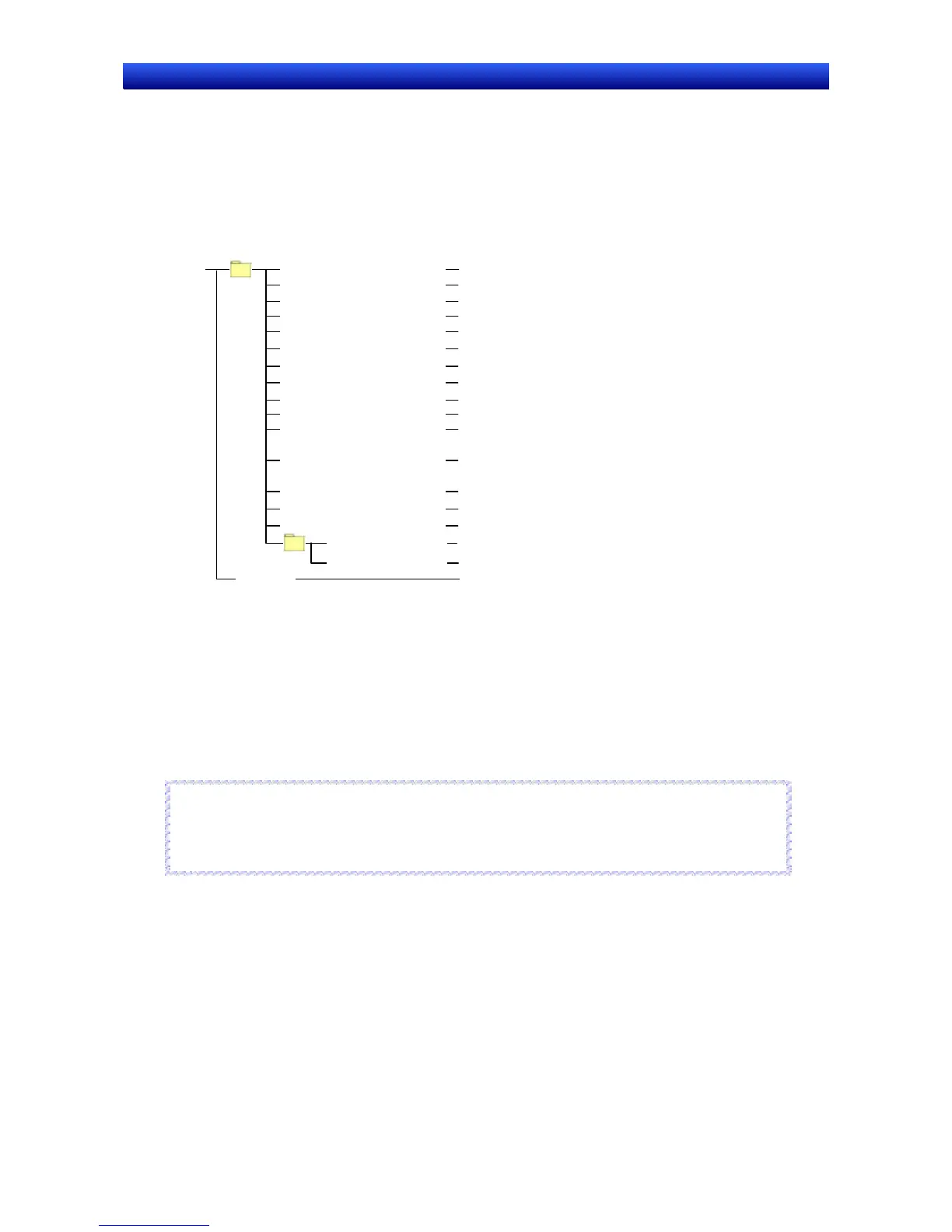

The NS-Designer designates and handles PT screen data as one project. A project consists of data
that can be broadly divided into project folders where files such as bitmap files and project files (exten-
sion.ipp) are stored.
Screen file
Sheet file
Unit and scale setting file
Write confirmation message file
Alarm/event setting file
Data log setting file
Host setting file
Bitmaps and JPEG files for displaying background and bitmap objects
Data block data files
Communications conditions setting file
Text files for displaying text objects and indirectly specifying
character strings
Text files for list selection object display and storing character
strings
Figure specification graphic data files
Print setting files
Validation result files
Logging files
Internal logging files
Project files
sample.ipp
*.log*2
*.csv*2
log
errlist.txt*3
print.cfg*2
*.vec
*.lst*1
*.txt*1
1, *.jpg*1 *.bmp*
*.ini*1
*.csv
*.bmp*1, *.jpg*1
*.bmp*1, *.jpg*1
datalog.cfg
omron.hst
datalog.cfg
unitcom.txt
message.jpm
pnlalarm.alm
pnlpg###.ipw(### = FFF-FF6)
pnlpg###.ipw(### = 000-F9F)
Sample
Note 1. The user can edit these files with a text editor. The other files are created by NS-Designer and must not
be edited using a text editor or other means.
2. These files are created when printing or executing a test and are not transferred when transferring data
to the PT.
3. These files are created when validating and are not transferred when transferring data to the PT.
When files are saved under the name Sample, a file named Sample.IPP will be created in a folder
called Sample under \Temp\ in the NS-Designer install directory. To open an existing project, select the
file with the IPP extension.
Reference
♦ To move or copy the project data to a floppy disk or other storage area, select both the folder and
project file, and execute the operation. The project consists of these two data types and cannot be
opened if only one of them is selected.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
3-1

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
