Section 11 Printing 11-1 Printing Project Information
NS-Designer Operation Manual NS-Designer Operation Manual NS-Designer Operation Manual
11-1 Printing Project Information
Project information can be printed. The information that can be printed is given below.
Information Details
Screen Title List Prints a list of screen titles.
Sheet Title List Prints a list of sheet screen titles.
Alarm Setting List Prints a list of registered alarms and events.
Unit & Scale List Prints a list of registered numeric units and scales.
To print only registered items turn ON Print Set Item Only.
Password Setting Prints a list of registered passwords.
System Data (Labels, System Setting) Prints a list of label switch names and system settings.
1. Select File - Print.

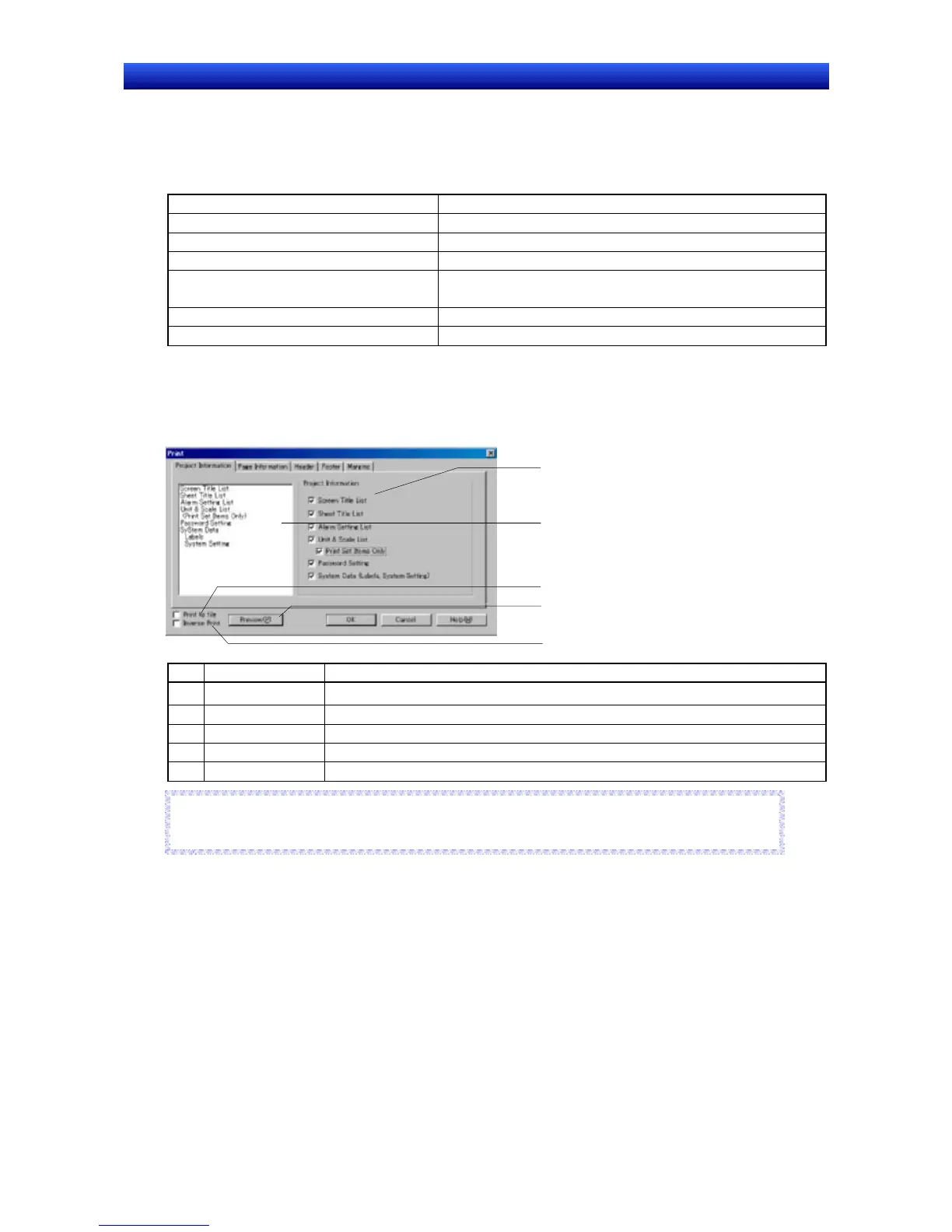

2. The Print Dialog Box will be displayed. Select the Project Information Ta b.
3. Select the information to be printed.
2
1
3
5
4
No. Item Details
1
Include Select the information to be printed.
2 Printing Items List Lists the items selected in No. 1, above.
3 Print to File Outputs the selected items to an RTF (rich text format) file instead of a printer.
4 Inverse Print Reverses black and white when printing.
5 Preview Button Click this button to see a preview of the printed image.
Reference
♦ Project information will be printed normally even if Reverse black and white is selected.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
4. Click the OK Button.
The Print Dialog Box will be displayed.
5. Click the OK Button to start printing.
11-1
