Section 4 Screen Types and Operations 4-4 Frames
NS-Designer Operation Manual
Reference
♦ If a message that overlapping objects is prohibited is displayed, select Tools - Options, and then
select the Edit/Disp. Tab and deselect Prohibit functional objects from overlapping.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
4-4-2 Switching Frame Pages
The methods used to switch frame pages when working in NS-Designer are explained here.
Switching Frame Pages Backward and Forward
This function is used to switch to the previous or next frame page.

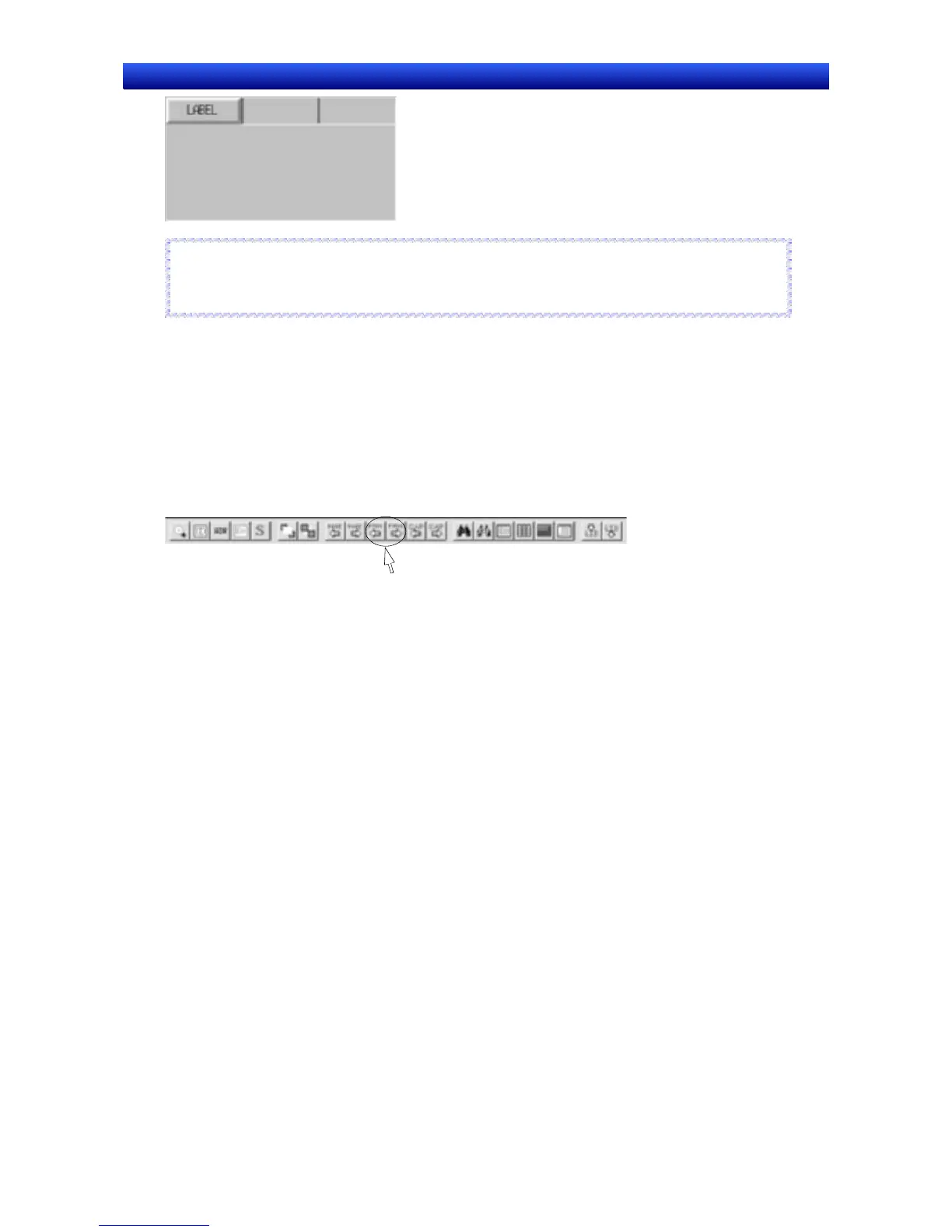

Select View - Previous/Next Frame Page or click the Previous/Next Frame Page Button in the tool-
bar.
Toolbar
Switching to Any Frame Page
This function is used to display a user-specified frame page.
1. Display the Frame Setting Dialog Box.
2. Specify the page number to be edited.
3. Click the OK Button.
4-31

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
