Section 5 Object Operations 5-7 Address Settings
NS-Designer Operation Manual NS-Designer Operation Manual NS-Designer Operation Manual
5-7-1 Setting Addresses

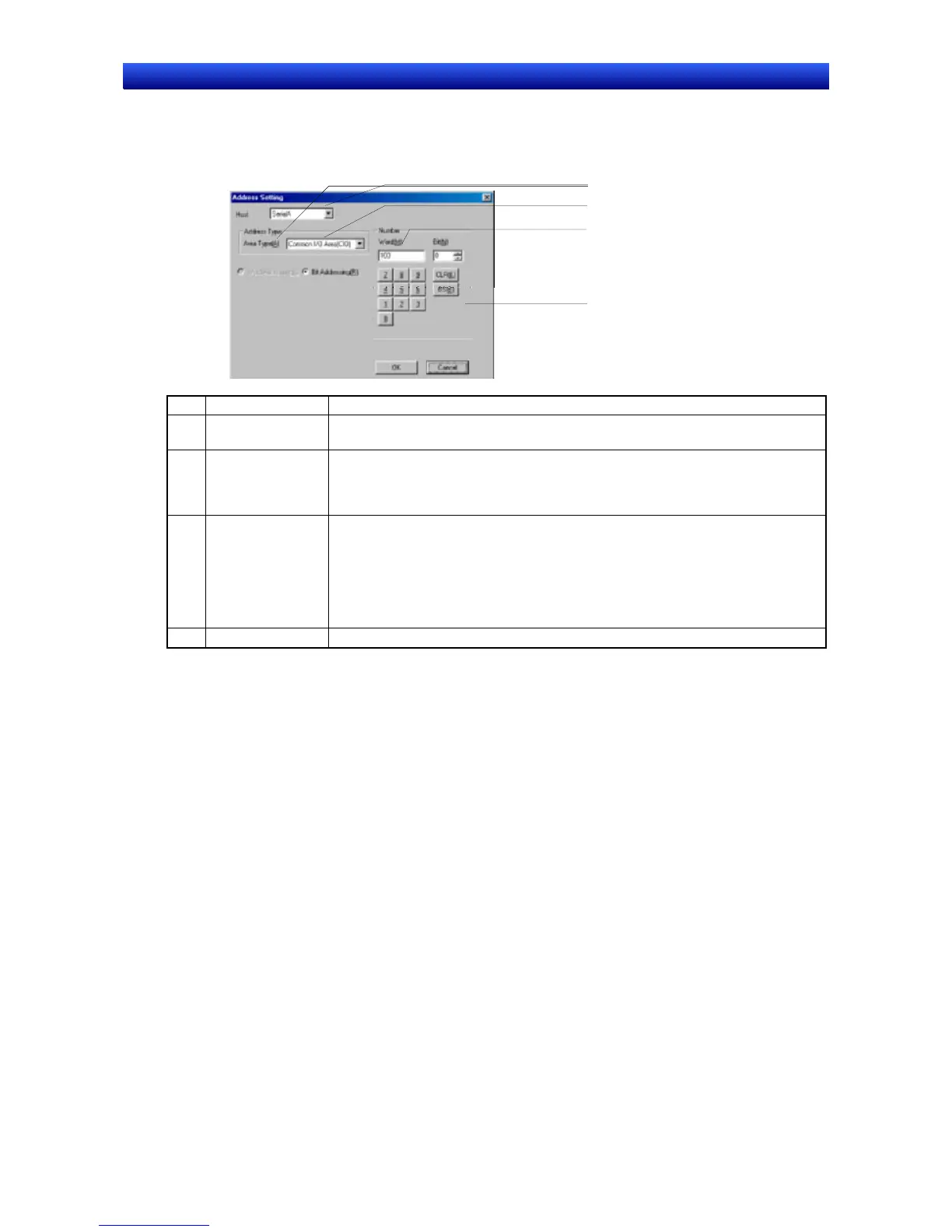

Click the Setting Button to the right of the setting column to display the Address Setting Dialog Box.
This section describes how to enter addresses using this dialog box.
1
4
2
3
No. Setting Details
1 Host name
Select the registered host name under Settings – Register Host or select the host
from PT memory.
2 Area Type Select the communications area.
Word or Bit specification are only displayed when those address types can be set.
For example, the Word option will not be displayed when making address settings
for ON/OFF Buttons.
3 Address Displays and sets the communications address.
The host address is expressed as a 5-digit word address or 5-digit word address
and 2-digit bit address. If the address entered here does not have enough digits,
the number of digits are automatically adjusted and the address written to the ad-
dress setting column.
Example: If word “1” is entered as the address:
“00001” will be entered in the address setting column.
4 Input Button
Click the Input Button to enter the word or bit.
5-37

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
