Editing Properties of Grouped Objects
Edit the properties of grouped functional or fixed objects using the following procedure.
1. Move the cursor over the functional or fixed object to be edited, and double-click the left mouse
button.

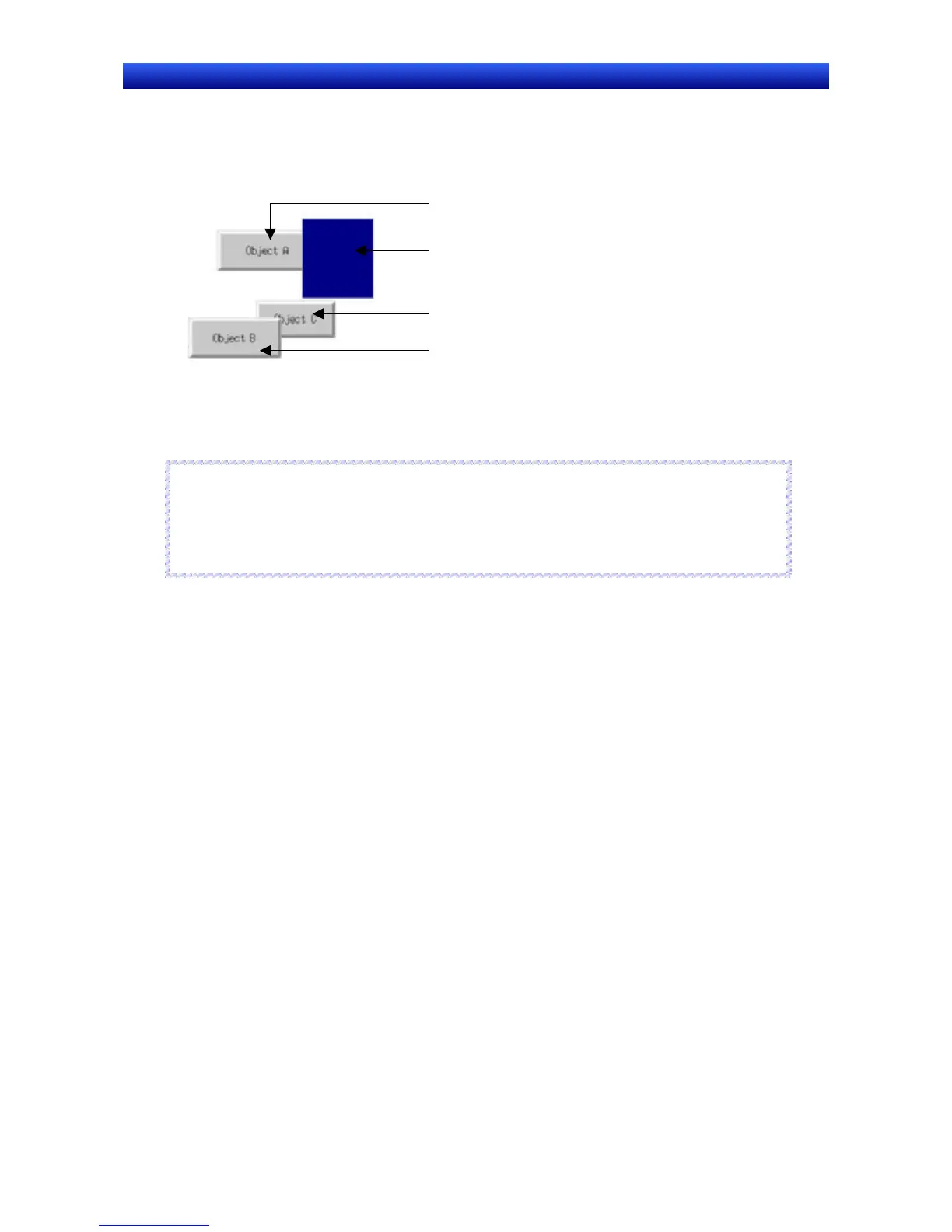

Double-click here to open the
Property Dialog Box for object A.
Double-click here to open the
Property Dialog Box for the box.
Double-click here to open the
Property Dialog Box for object C.
Double-click here to open the
Property Dialog Box for object B.
2. The Property Dialog Box for that functional or fixed object will open. Edit the properties as required.
Reference
♦ If the mouse button is double-clicked at a position where two or more functional or fixed objects
overlap, the Property Dialog Box for the top object will be opened.
To edit grouped functional or fixed objects as a device library object, select Edit Smart Active Parts
in the Edit/Disp Tab Page opened from the Options Dialog Box (Tools – Options).
