Section 1 Overview 1-3 Basic Configuration and Functions
NS-Designer Operation Manual

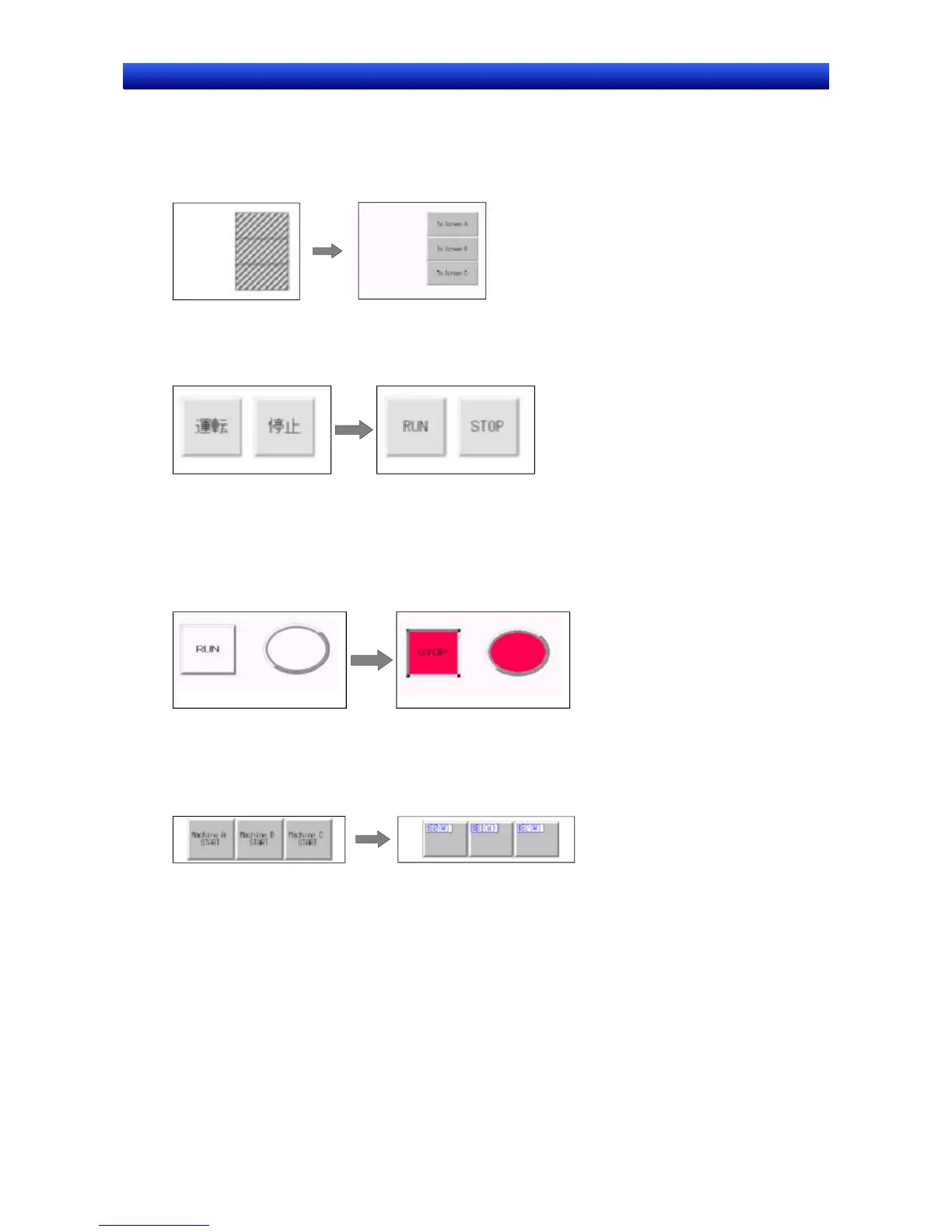

Displaying Sheet Objects
The sheet objects overlapped on base screens can be displayed.
Refer to Show Sheet Object under Switching Items Displayed for Objects under 4-1 Basic Operations
for details.
•
Sheet Objects Hidden Sheet Objects Displayed
Displaying Switch Labels
The specified switch labels can be displayed.
Refer to Switch Label under 4-1 Basic Operations for details.
•
Simulating ON/OFF Status •
The functional objects can be displayed in their ON status.
Refer to Displaying ON Status under Switching Items Displayed for Objects under 4-1 Basic Opera-
tions for details.
ON Status OFF Status
Displaying Addresses
The communications addresses set for each functional object can be displayed. Refer to Show Ad-
dress under Switching Items Displayed for Objects under 4-1 Basic Operations for details.
•
Normal Displa
y
Address Display
1-12

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
