Section 1 Overview 1-3 Basic Configuration and Functions
NS-Designer Operation Manual
Selecting Fixed Objects for Buttons and Lamps

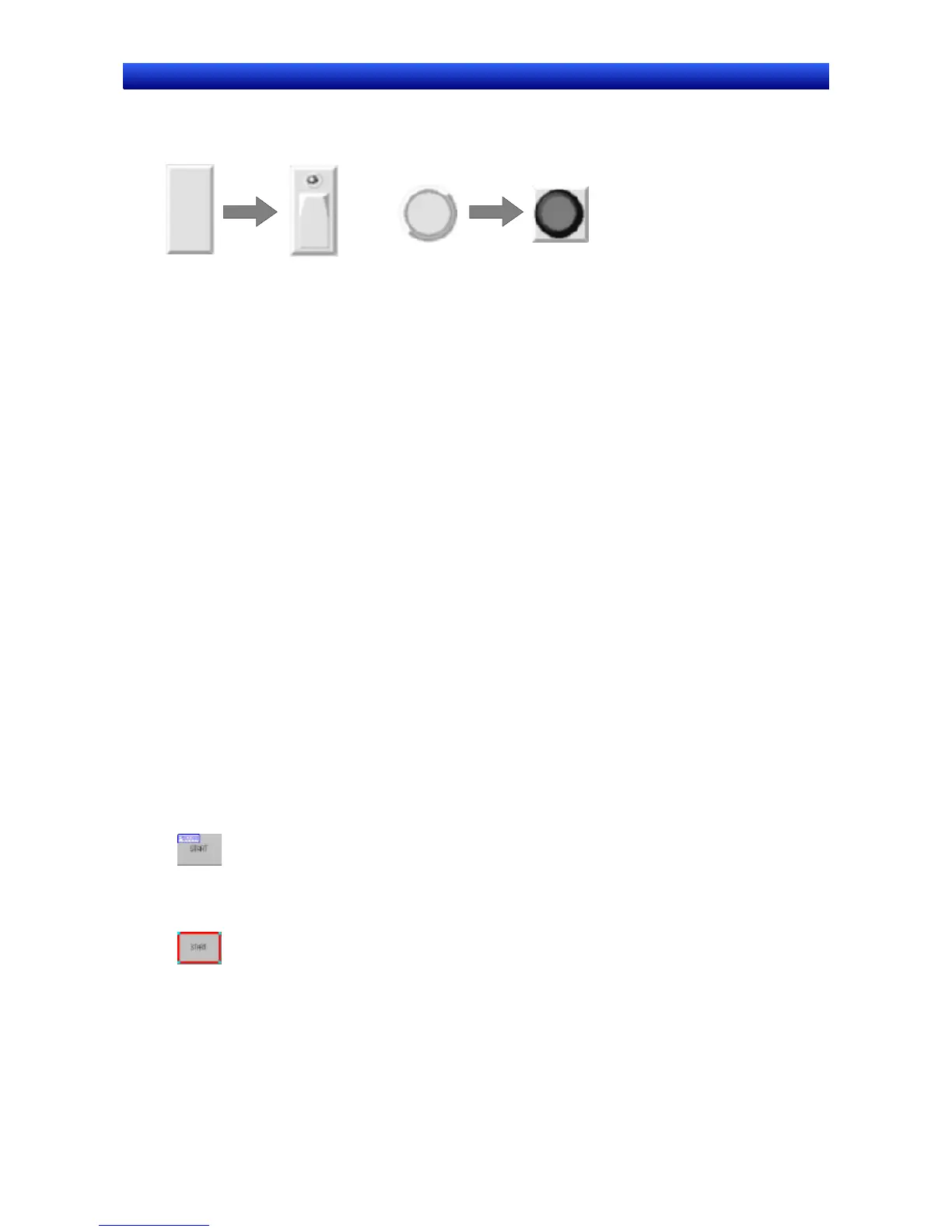

Specified fixed objects can be displayed for ON/OFF buttons, word buttons, bit lamps, and word lamps
to create more graphic displays.
Object
selected.
Object
selected.
Drawing Fixed Objects
Fixed objects, which do not provide any functions themselves, can be drawn on a screen. The following
fixed objects can be drawn. Rectangles, circles, ovals, straight lines, polylines, polygons, sectors, and
arcs
Creating Backgrounds
General-purpose image data can be used as backgrounds for user screens. The following file types
can be used.
•
•
•
•
•
•
Bitmap files (.BMP)
JPEG files (.JPG)
Switching Displays
Displays can be switched to check the operation of screens created offline.
The following switching functions can be used.
Switching Screens
Switching Frame Pages
Edited frame pages can be switched forward and backward.
Refer to Switching Frame Pages under 4-4 Frames for details.
Switching Screens
Edited screens can be switched forward and backward.
Refer to Switching Screens under 4-1 Basic Operations for details.
Zooming
Screens can be zoomed in and out.
Refer to Zoom under 4-1 Basic Operations for details.
Switching Object Displays
ID Displays
Object ID numbers can be displayed.
Refer to Switching Items Displayed for Objects under 4-1 Basic Operations for details.
Error Object Displays
Objects for which errors were detected in validating are displayed with red borders.
Refer to Show ID under 4-1 Basic Operations for details.
•
1-11

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
