Section 5 Object Operations 5-9 Listing Functional Objects Used
NS-Designer Operation Manual NS-Designer Operation Manual NS-Designer Operation Manual

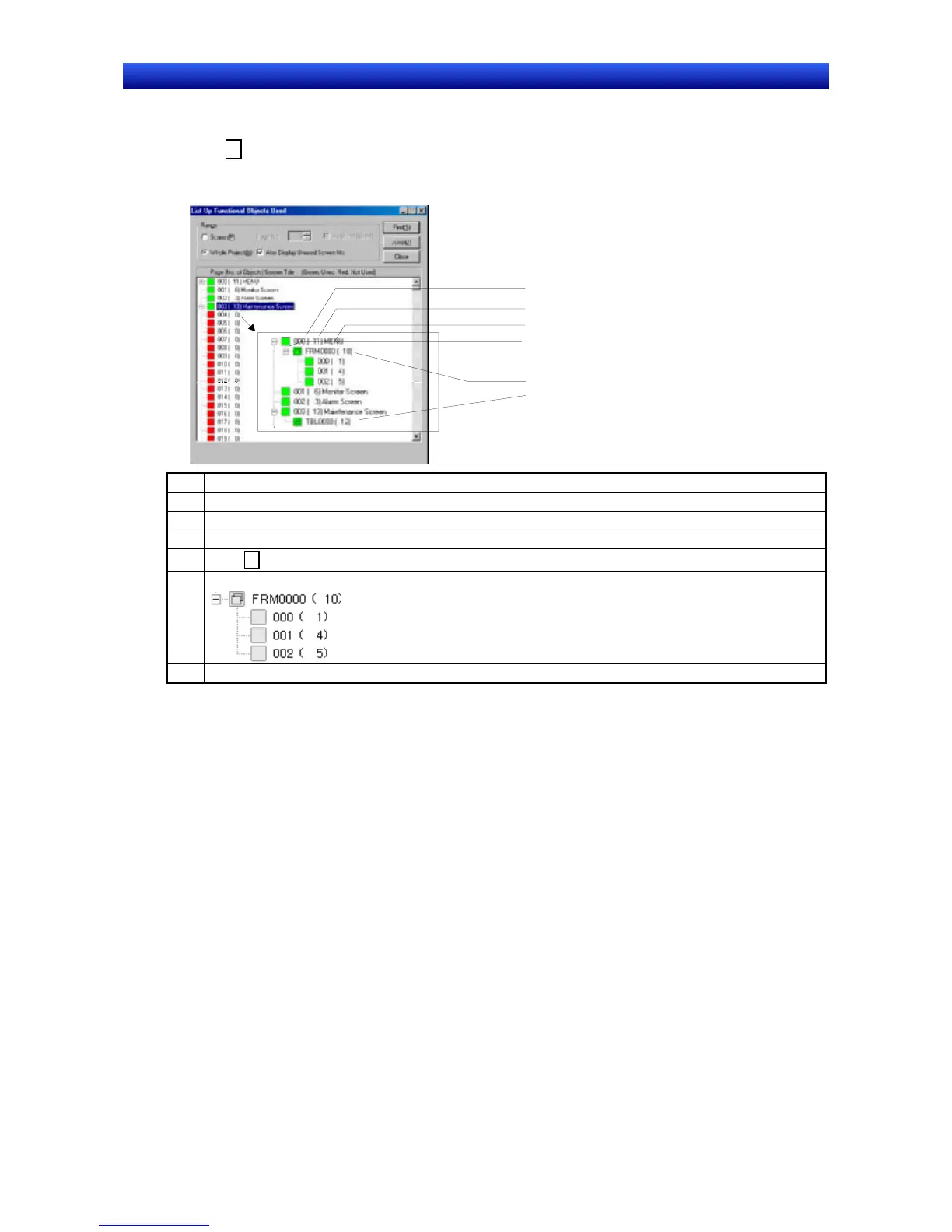

3. The number of functional objects used are displayed in a tree structure for each screen, frame, and
table.
Click + to expand the tree.
Screens with the functional object are displayed in green and those without the functional object
are displayed in red.
1
2
3
5
6
4
No. Details
1 Displays the screen page number.
2 Displays the number of functional objects in each screen.
3 Displays the screen title.
4
Click
+ to expand the tree.
5 The number of functional objects in the frame are displayed for each frame page.
6 Displays the number of functional objects in tables.
5-47

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
