Section 5 Object Operations 5-11 Listing Addresses Used
NS-Designer Operation Manual NS-Designer Operation Manual NS-Designer Operation Manual

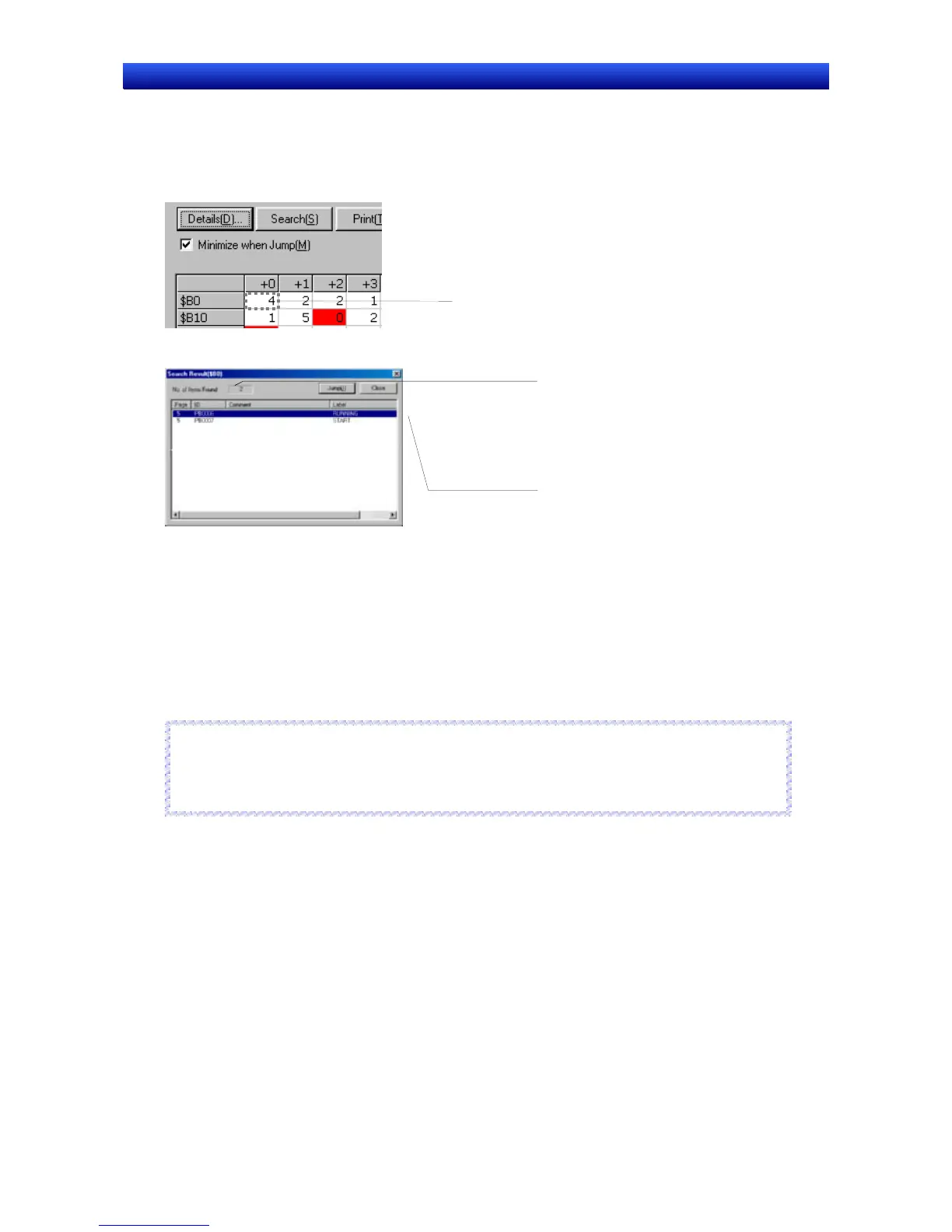

Displaying Lists of Used Functional Objects
Displays a list of the functional objects that use the selected addresses.
1. Click the cell for the target address. The functional objects using that address will be displayed.
2. Click the Details Button or double-click the cell.
Double-click the cell.
A list of the functional objects using the specified address will be displayed.
No. of searches
Displays a list of the screen
page number where address
located, functional object ID
number, comment, and label.
Jumping to Functional Objects
The display can be changed (using the jump function) from the list to the position on the screen of a
selected functional object.
1. Select the target functional object.
2. Click the Jump Button or double-click the selected row.
The screen where the selected functional object is found will be displayed and the functional object
will flash because it is selected.
Reference
♦ If Minimize when Jump is deselected (turned OFF) in the List Up Addresses Used Window, the
window will not be minimized when the jump function is used, but the destination functional object
will flash because it is selected.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
5-58
