Omron NS User Manual

Section 11 Printing 11-2 Printing Page Information
NS-Designer Operation Manual NS-Designer Operation Manual NS-Designer Operation Manual

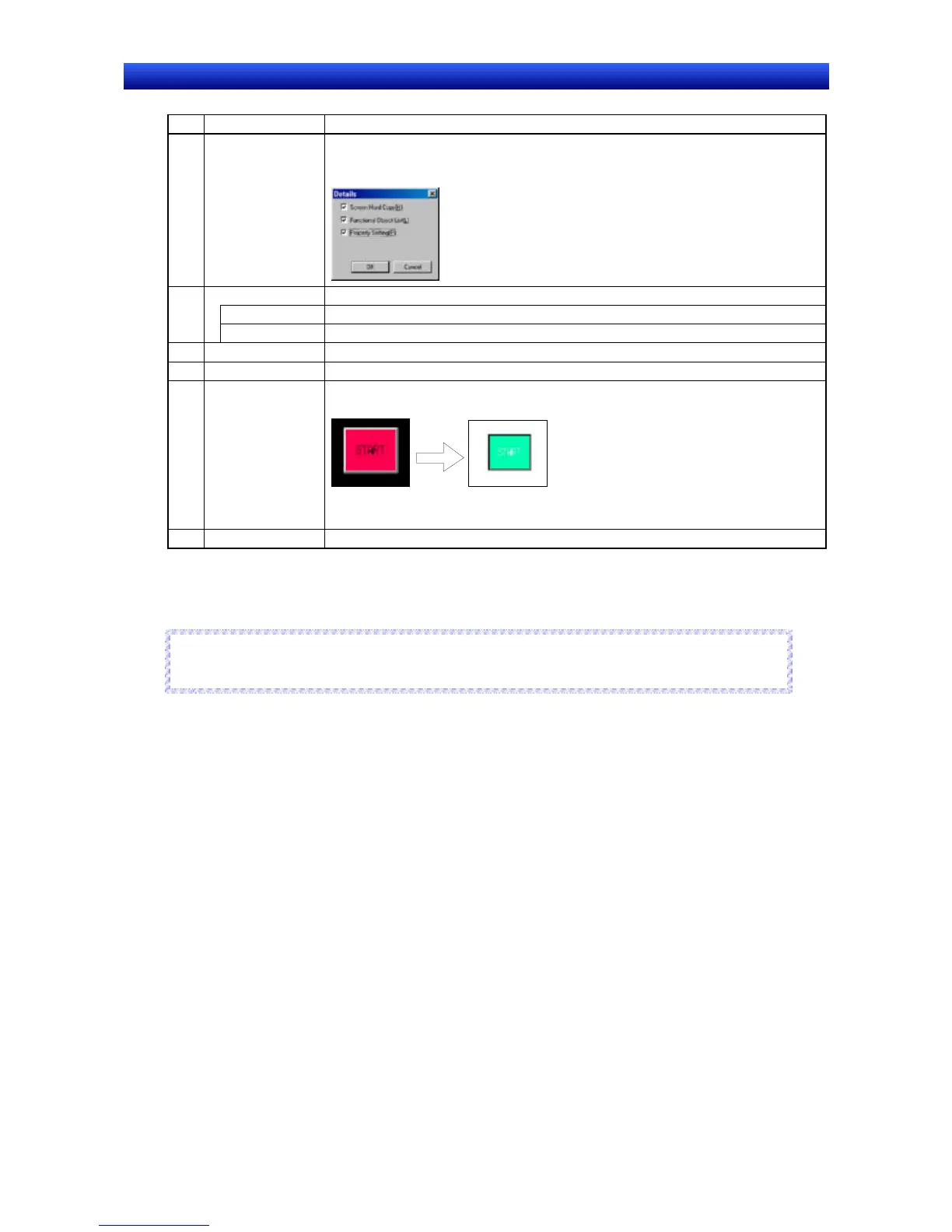

No. Item Details
1 Include Select the information to be printed.
Click the Details Button to display the following dialog box and select the informa-
tion to be printed.
2 Print Select the range of screens to be printed from the following options.
All Prints information on all screens that are used.
Pages Prints information on the specified screens.
3 Printing Items List Lists the items selected in No. 1, above.
4 Print to File Outputs the selected items to an RTF (rich text format) file instead of a printer.
5 Inverse Print Reverses black and white when printing.
Example:
Normal
displa
y
Reverse black
and white display
6 Preview Button Click this button to see a preview of the printed image.
4. Click the OK Button.
The Print Dialog Box will be displayed.
5. Click the OK Button to start printing.
Reference
♦ Project information will be printed normally even if Inverse Print is selected.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
11-5

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
