Section 12 Importing/Exporting CSV Files 12-3 Importing CSV Files
NS-Designer Operation Manual NS-Designer Operation Manual NS-Designer Operation Manual

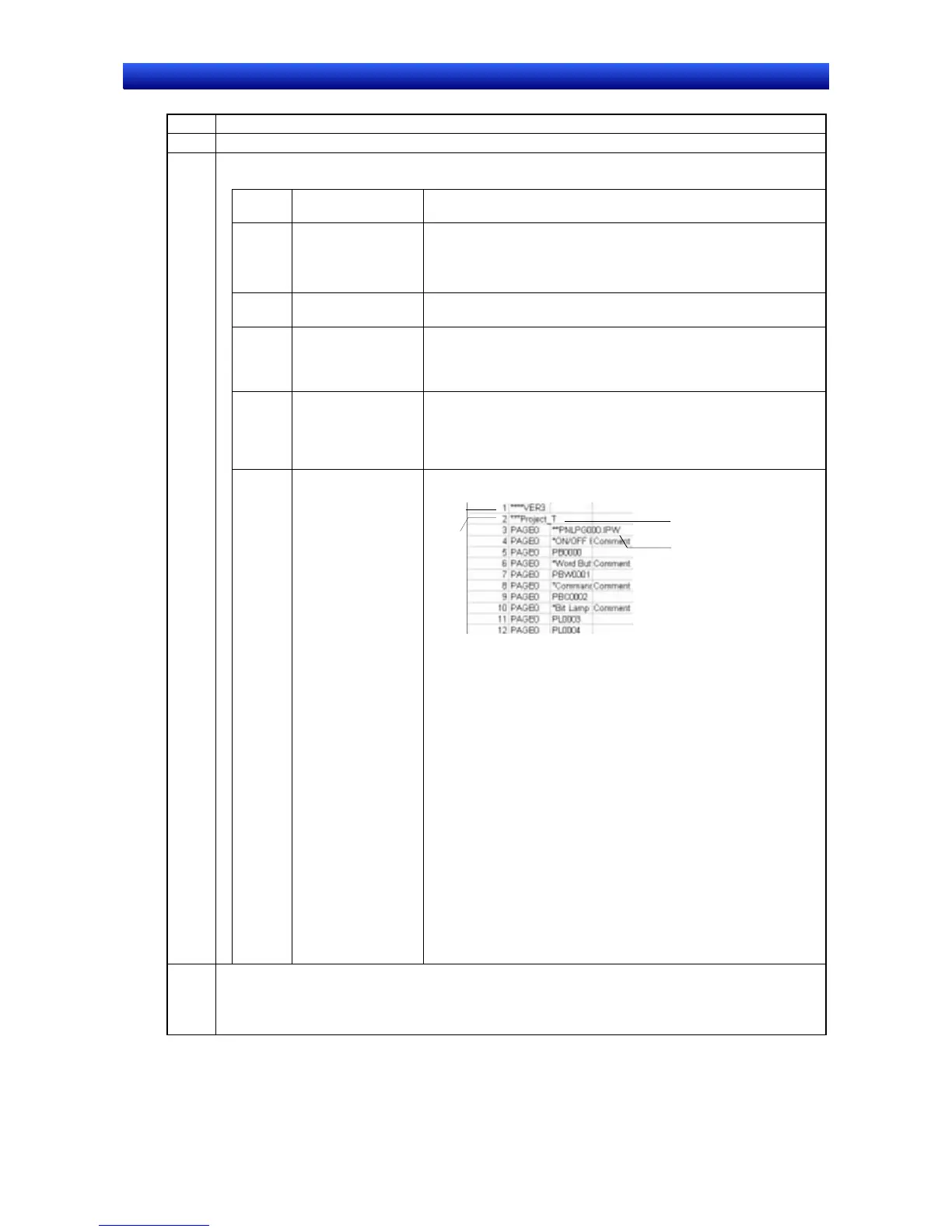

No. Details
1 Displays the line number in the CSV file data where the error was found.
Displays the error number. Refer to the following table for details. 2
Error
No.
Details Countermeasure
1 Address or label
setting is not cor-
rect.
1. Confirm that addresses are set within the range of the number
of addresses set in the System Settings.
2. Confirm that the format of address settings is correct.
3. Confirm that none of the labels are too long.
2 Format error in im-
ported CSV file.
Check that the imported file is in CSV format.
3 Insufficient mem-
ory. Settings con-
tained in CSV file
cannot be imported.
Close any unnecessary applications and re-execute the import
operation.
4 Could not open the
CSV file. CSV file
could not be im-
ported.
Check that the file is not being used by another application. If the
file is being used by another application, close the file and then
re-execute the import operation.
5 A project file name
or screen file name
specified in the
CSV file does not
exist.
Refer to the following and insert the project file names or screen file names.
1
2
Row 1
Column A Column CColumn B
Row 2
Columns are A, B, and C in order from the left. Rows are 1, 2, and
3 in order from the top.
1. The project file name is specified in the B column in the rows
with a "1" in the A column. (The version is specified in row 1 of
the B column, however, so the project file name is specified in
row 2.)
Format: ***project name
Example: If the project name is "Test": ***Test
2. The screen file name is specified in the C column in the rows
with a "2" in the A column. (The project file name is specified in
row 1 of the B column, however, so the screen file name is
specified in row 3.)
Format: **PNLPG screen page number/sheet page num-
ber.IPW
Screen page numbers are 3-digit hexadecimal numbers start-
ing from 000.
Sheet page numbers are 3-digit hexadecimal numbers in the
range FFF (page number 0) to FF6 (page number 9).
Example: If the screen page number is 16:
**PNLPG010.IPW
Example: If the sheet page number is 3: **PNLPGFFC.IPW
3 Details on the error that was detected will be displayed. The format is as follows:
Row number, screen page number, ID number, and error detection identifier
For the previous dialog box, there is a mistake in the CSV format of the Numeral Display Object with
ID number NUM0003 located on screen page number 0 on line 9.
12-5
