Section 3 Manipulating Project Files 3-3 Opening Existing Projects
NS-Designer Operation Manual
Reference
♦
Screen data that was edited or saved with NS-Designer Ver. 2.X can be converted using the
NS-Designer’s Settings Menu. The procedure for converting to NS-Designer Ver. 6.X screen data is
given below.
1. Open the NS-Designer Ver. 2.X data in NS-Designer Ver. 6.X.
2. Select Settings – Conversion – Project – To Ver6.2. This will convert the data to NS-Designer
Ver. 6.2 data.
∗
∗
∗
Converting screen data for the NS7 to NS-Designer Ver. 6 or higher data will convert it as data
for the NS8-TV1@-V1.
Depending on the combination of system program, NS-Designer version, and data version, it
may not be possible to use converted data. Refer to Appendix 9 Converting Data between Dif-
ferent Versions of NS-series Products.
NS-Designer Ver. 5.0 or later can also convert screen data created with NS-Designer Ver. 1.X.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
Reference
♦ Project data created with NS-Designer from Ver. 1.X to Ver. 5.X can be edited and saved on
NS-Designer Ver. 6.X.

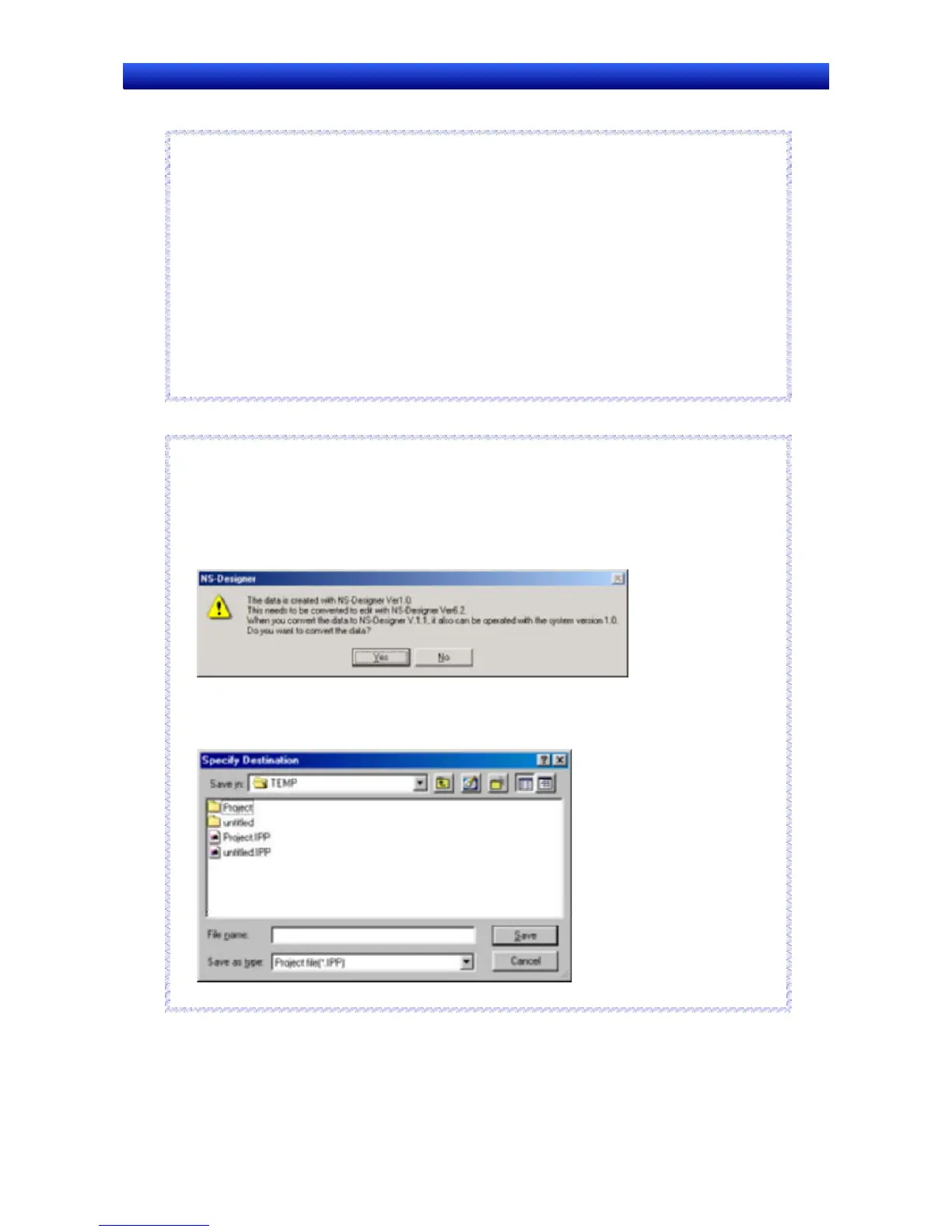

If project data that was edited or saved with NS-Designer Ver. 1.0 is opened with NS-Designer Ver.
6.X, the following data conversion confirmation message, which indicates making a copy of the data
for Ver. 1.1 will be displayed.
If the Yes Button is clicked, the following dialog box will be displayed and the data will be resaved
as Ver. 1.1 data under the specified project name.
If the No Button is clicked, the project will not be read or converted.
R
R
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
