Node Error Information, Registered Target Node Information, and Normal Target Node Informa-

tion. By default, the target ID is automatically set to the rightmost 8 bits of the IP address. In

the example above, the target device's IP address is 192.168.250.2, so the target node ID is

#002. If a target node ID is duplicated and you want to change the target node ID, click the

Change Target Node ID

Button and change the target ID.

Editing Settings for Individual Connections

You can edit each connection separately.

Refer to Editing Settings for All Connections on page 9-36 for information on how to edit all the

connections in a table format.

1 Click the

Connections Tab and then the click the

New Button.

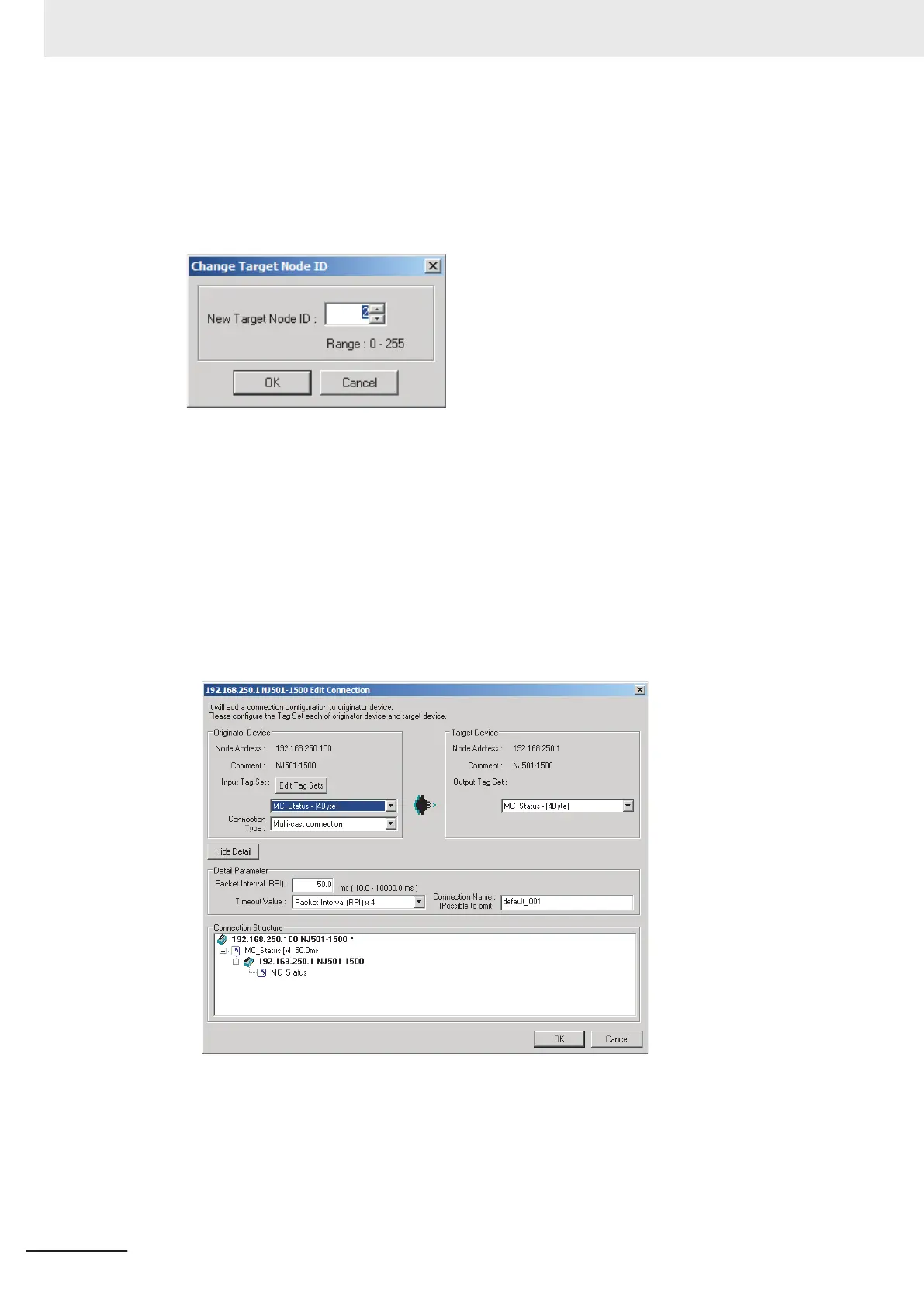

The following Edit Connection Dialog Box is displayed according to the type of device that is

selected.

• (A) Using EtherNet/IP Ports as Targets (for Input Only)

• (B) Using Other EtherNet/IP Devices as Targets (for Settings Other Than Input Only)
