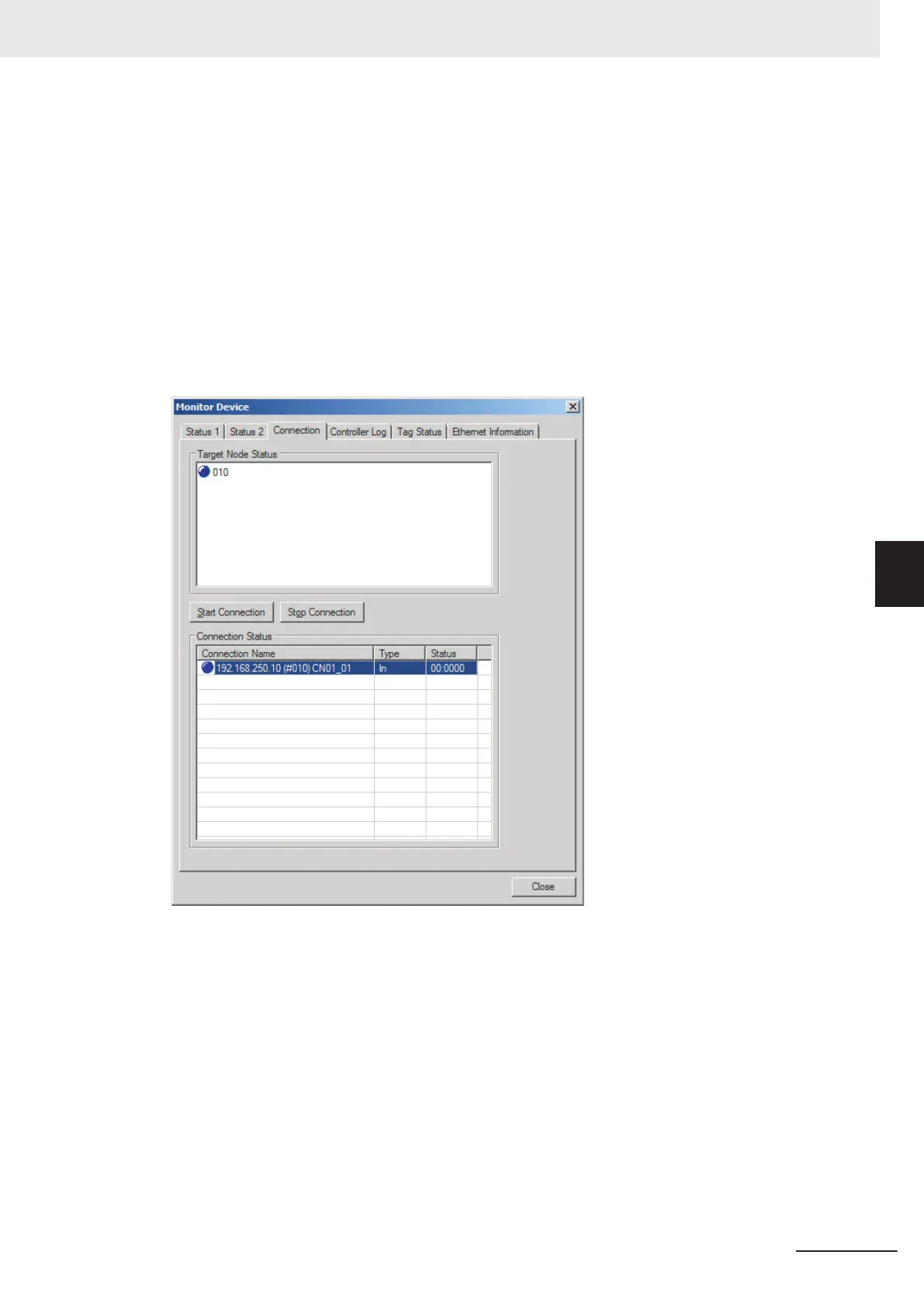

Connection Tab Page
• Target Node Status
Information about the target node that acts as the originator is displayed.
If all tag data link connections to the node are established and normal, this information is dis-
played in blue. However, if any connection is broken it is displayed in red.
However
, this information is displayed in gray if the connection to the node is stopped.
• Connection Status
The Status Column of the connection status shows the status of each connection that is set as
the originator. The connection status can be used to identify the cause of tag data link errors.
Refer to 14-6-2 Connection Status Codes and Troubleshooting on page 14-55 for details on the
connection status.
14 Troubleshooting
14-51
NX-series EtherNet/IP Unit User's Manual (W627)
14-6 Checking with the Network Configurator
14
14-6-1 The Network Configurator's Device Monitor Function

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
