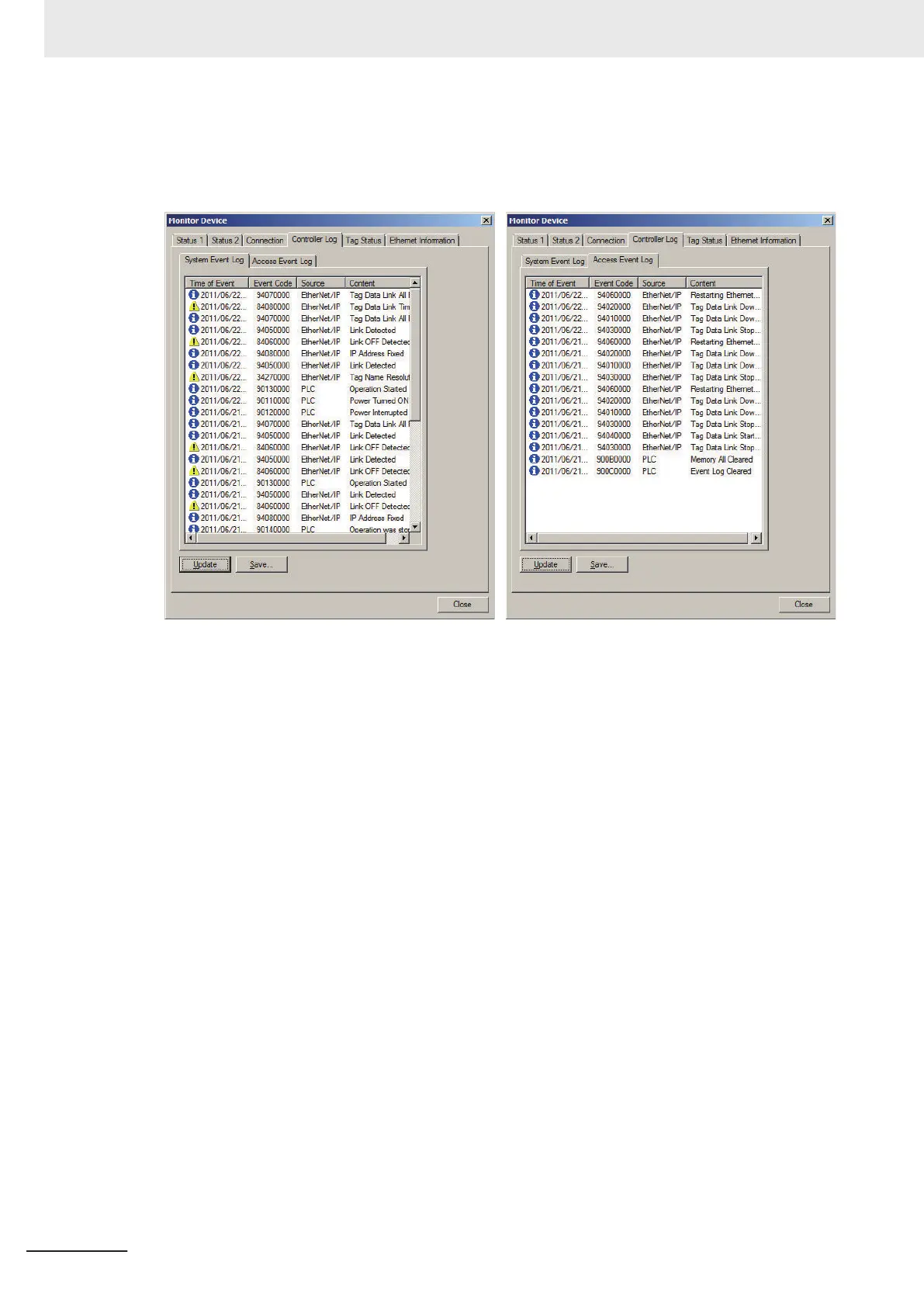

Controller Log Tab Page

This tab page displays the Controller event log that is stored in the NX-series EtherNet/IP Unit.

The error history shows errors that have occurred. It can be saved in a file in the computer.

14 Troubleshooting

14-52

NX-series EtherNet/IP Unit User's Manual (W627)
