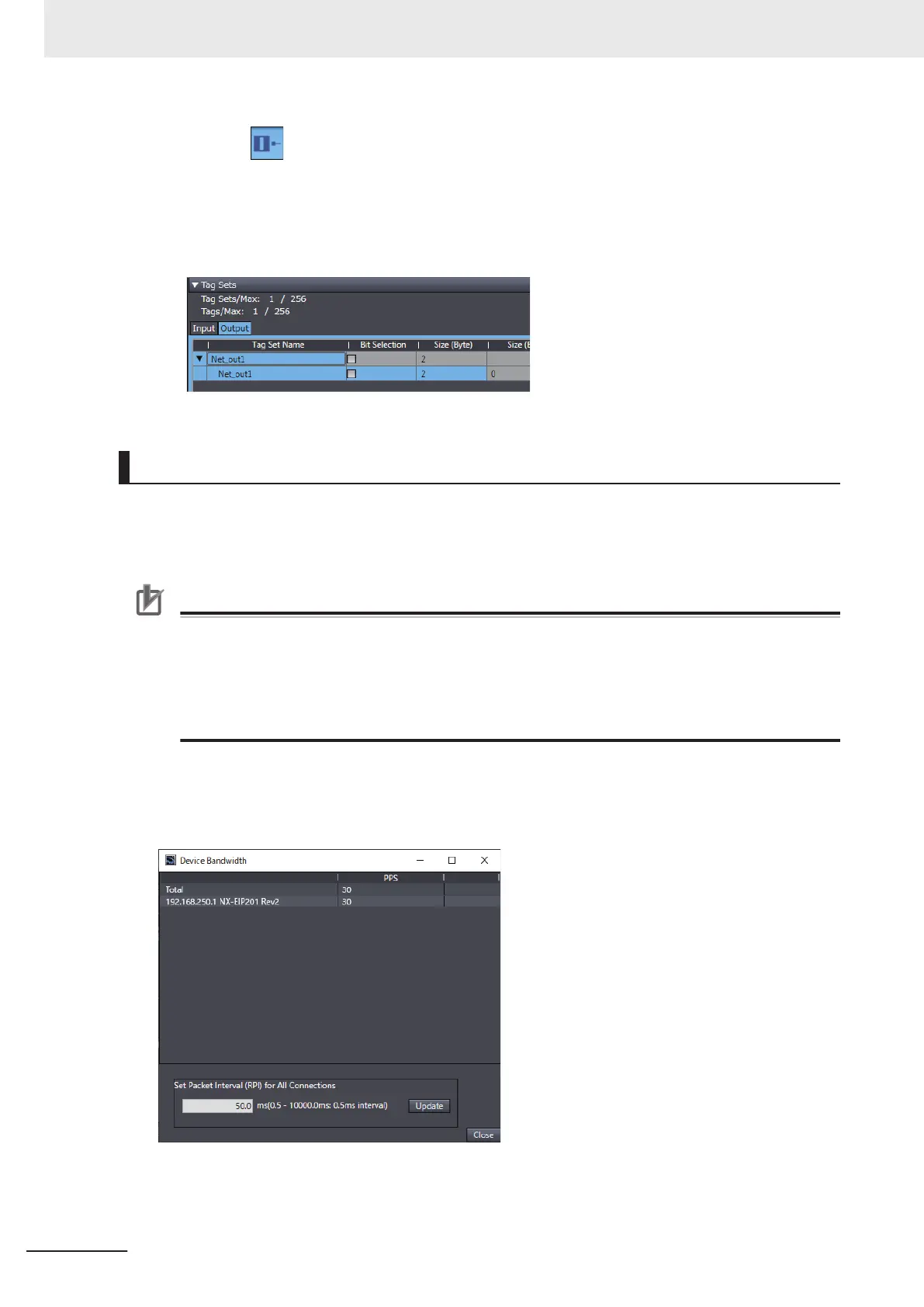

3 Click the (Show Tag Set Display) icon in the EtherNet/IP Connection Setting Tab Page.
4 Click the Output tab to switch to the
Output Tab Page. Register the following tag and tag set.
The tag and tag set can be registered in the same way as for the target device. (Refer to Reg-
istering the Tag and Tag Set on page A-14.)
Checking the Device Bandwidth Usage
The bandwidth usage for the device can be displayed from the EtherNet/IP Connection Setting Tab
Page.
This value is for when multicast filtering is used.
Precautions for Correct Use
In the Device Bandwidth Dialog Box, you can only check the bandwidth being used for the
EtherNet/IP connections from one originator device to its target devices.
The actual bandwidth used for the EtherNet/IP network must be calculated by taking into ac-
count of all bandwidths used on the EtherNet/IP network (i.e., bandwidths used for connections
for the other devices in the EtherNet/IP network than the one given on the dialog box must be
included into the calculation).
l
Procedure
Click the Device Bandwidth Button in the EtherNet/IP Connection Setting Tab Page for the target
device.
Appendices
A-26
NX-series EtherNet/IP Unit User's Manual (W627)
