Omron NX Series User Manual

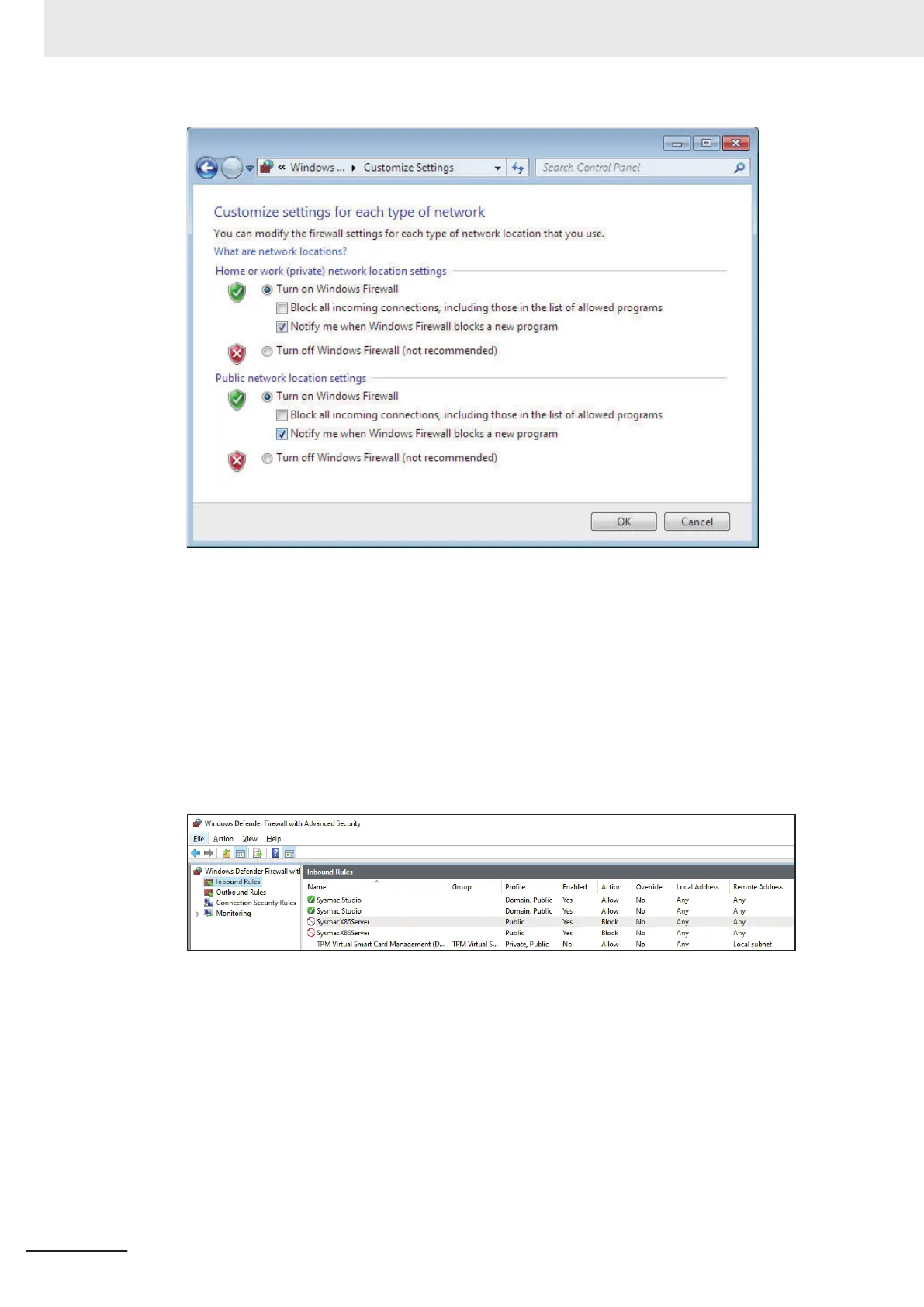

4 Select the Advanced Tab in the Windows Firewall Dialog Box.
The
Windows Firewall with Advanced Security Dialog Box is displayed.
5 Click Inbound Rules in the left pane and then double-click SysmacX86Server in the Inbound
Rules
list for Sysmac Studio version 1.31 or higher. For Sysmac Studio lower than version
1.31, double-click Sysmac Studio.
If you double-click SysmacX86Server, the SysmacX86Server Properties Dialog Box ap-
pears. If you double-click Sysmac Studio, the Sysmac Studio Properties Dialog Box is dis-
played.
6 For Sysmac Studio version 1.31 or higher, make the following settings in the
SyamacX86Server Properties Dialog Box. If Sysmac Studio version is lower than 1.31, make
the following settings in the Syamac Studio Properties Dialog Box.
• If the
Public Check Box under Profiles is not selected in the Advanced Tab Page, select it.
• If the Enabled Check Box under General is not selected in the General Tab Page, select it.
• Select Allow the connection under Action in the General Tab Page.
Appendices
A-40
NX-series EtherNet/IP Unit User's Manual (W627)

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
