Modify iSCSI Virtual Drive Properties in Legacy BIOS Boot Mode (BIOS)

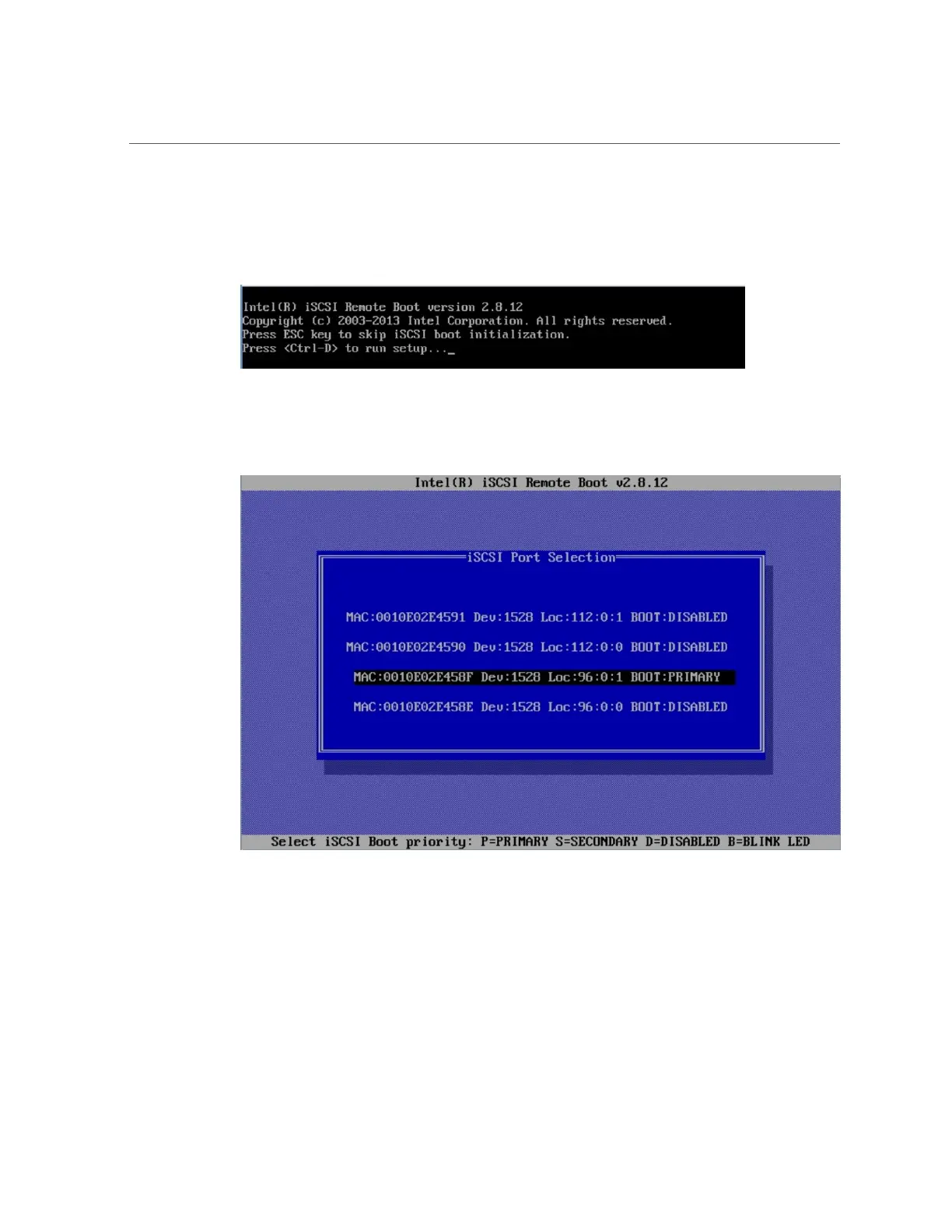

When the following messages appear, press Ctrl+D several times to access the

iSCSI option ROM.

The iSCSI Port Selection screen appears. The following figure shows an example.

Select the network adapter MAC address configured in the iSCSI server and Type

"P" to change its state to Boot:PRIMARY.

Press Return to enter the network adapter MAC address for iSCSI configuration.

68 Oracle X4 Series Servers Administration Guide • April 2016
