Modify iSCSI Virtual Drive Properties in UEFI Boot Mode (BIOS)

12.

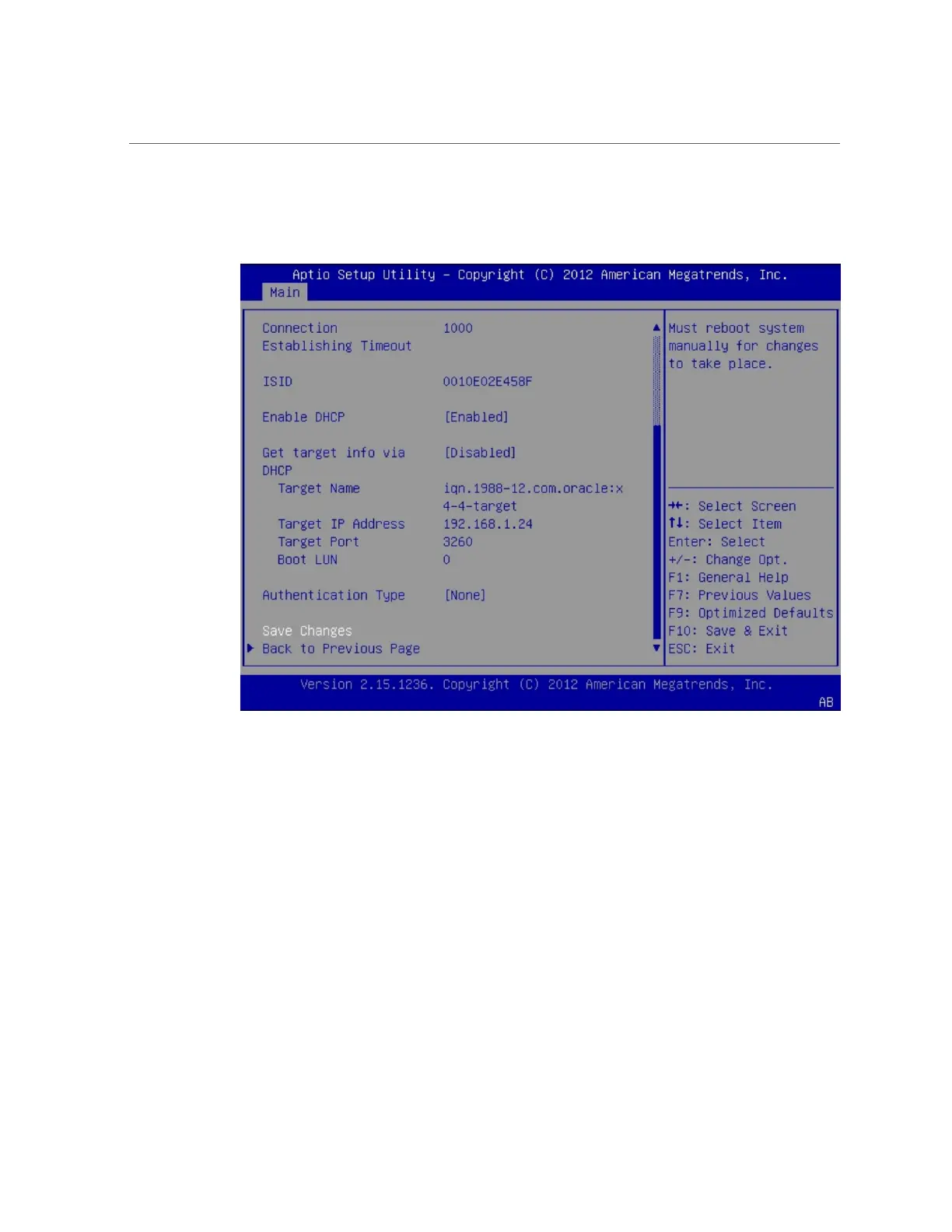

Verify that your settings match the iSCSI target information on the iSCSI server.

13.

Set the Authentication Type to CHAP or None.

14.

Save the changes and exit the BIOS Setup Utility.

15.

Restart the server.

16.

Press the F8 key (or Ctrl+P from a serial connection) when prompted while the

BIOS is running the power-on self-test (POST) checkpoints.

The Please Select Boot Device dialog box appears.

17.

Verify that the iSCSI target entry appears in the boot list.

18.

For instructions on installing an operating system on an iSCSI drive, refer to the

supported operating system installation documentation.

80 Oracle X4 Series Servers Administration Guide • April 2016
