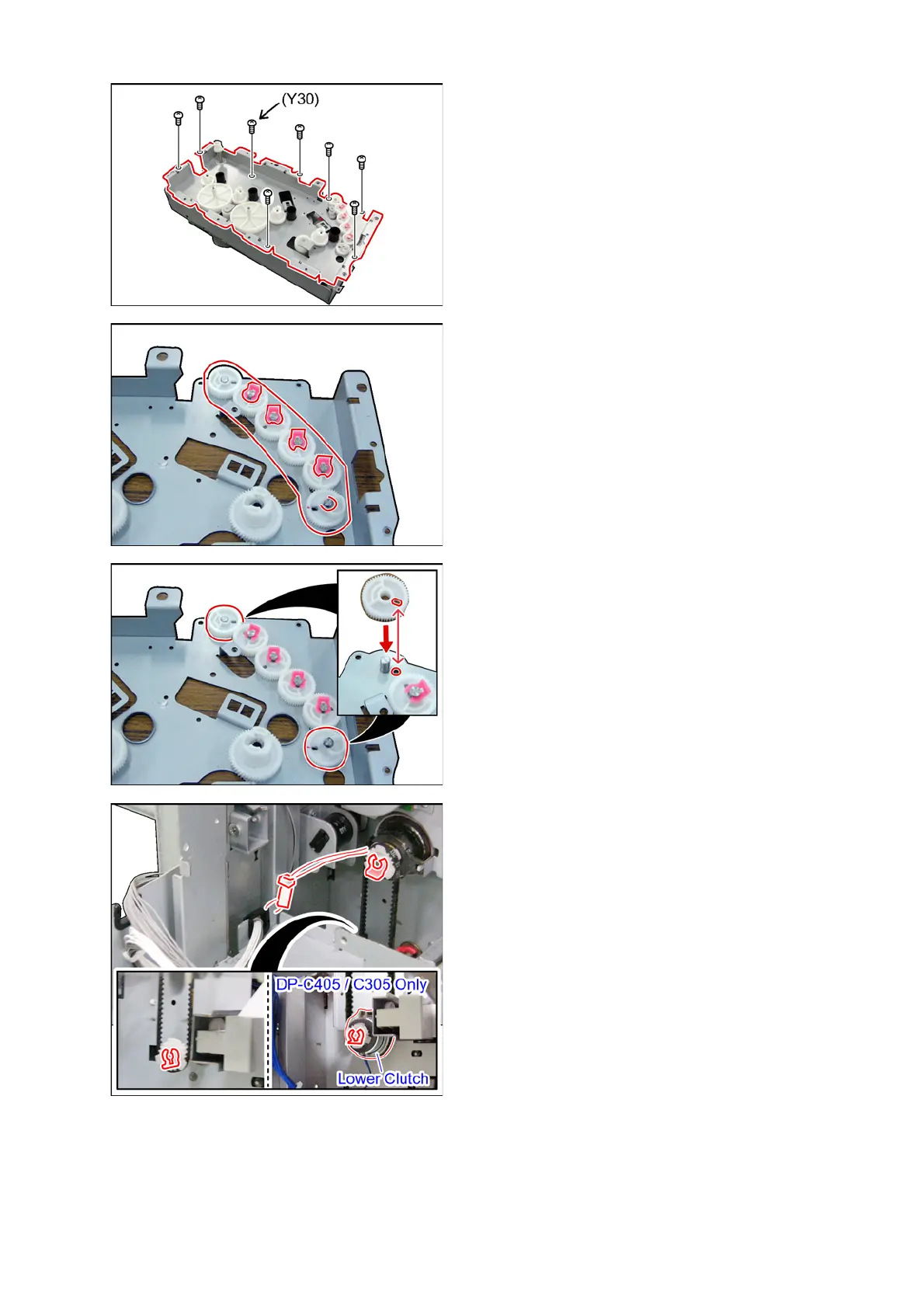

(9) Remove 7 Screws (X5).
(10) Remove 1 Screw (Y30).
(11) Remove the Gear Box Cover (5912).
(12) Remove 4 Snap Rings (H6).
(13) Remove the E-Ring (J6).
(14) Remove 6 FTR Coupling Gears (5906).
Caution:
When reinstalling, align the Gear holes and Frame
holes as illustrated.
(15) Release the Harness from the Harness Clamp.
(16) Remove the Upper Snap Ring (H6).
(17) Remove the Lower Snap Ring (H6).
Note:
For DP-C405 / C305 Only with the Lower Clutch.
