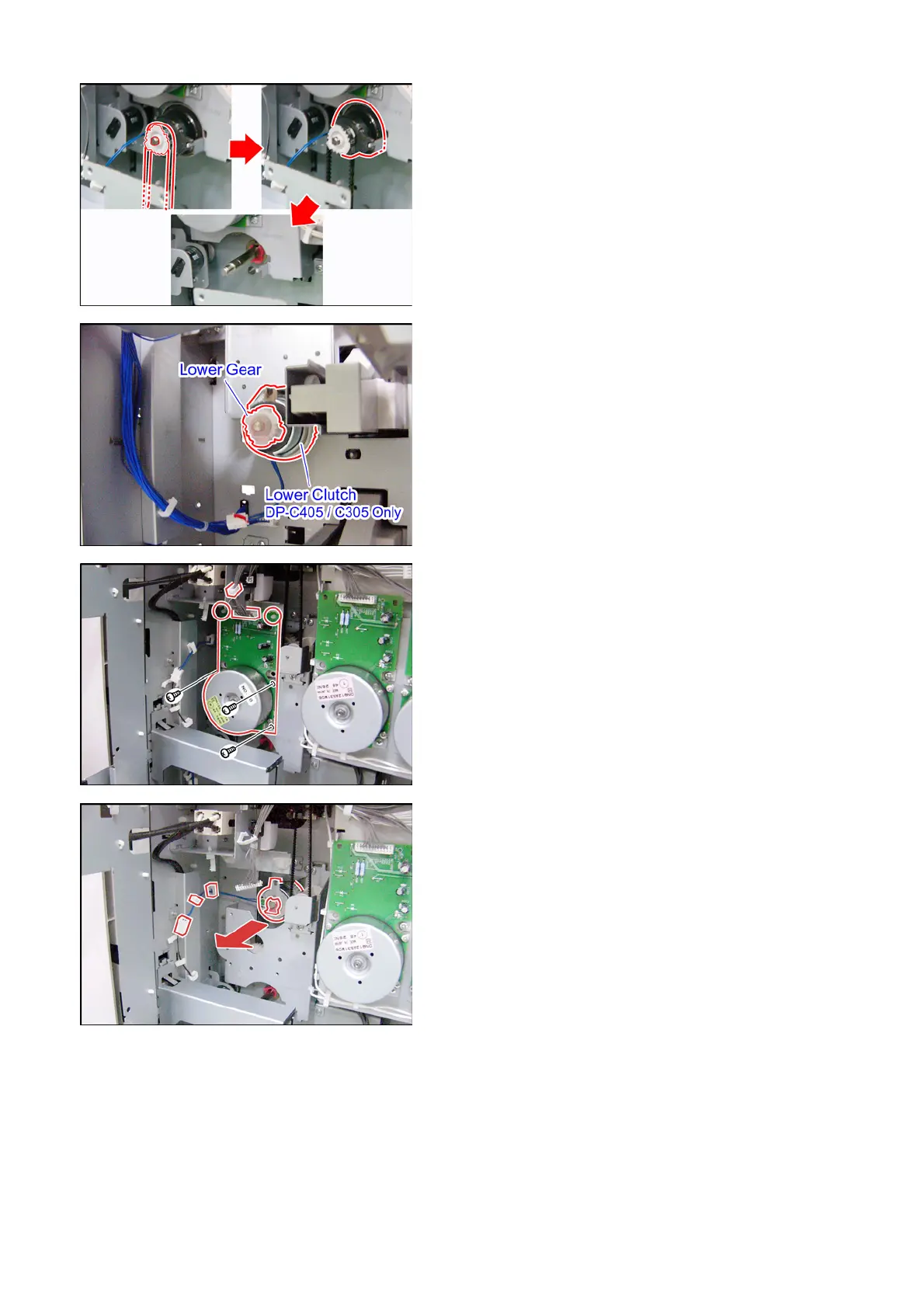

(18) Remove the Belt (6130).
(19) Remove the Upper Gear (6131).
(20) Remove the Upper Clutch (6129).
(21) Remove the Lower Gear (6131).
DP-C405 / C305 Only
(22) Remove the Lower Clutch (6128).
(23) Release the Harness from Harness Clamp.
(24) Disconnect the Motor Harness.
(25) Remove 3 Screws (X5).
(26) Remove the Motor Assembly (6126).
(27) Release the Harness from 2 Harness Clamps.
(28) Disconnect the Clutch Harness.
(29) Remove the Snap Ring (H6).
(30) Remove the Clutch (6128).
