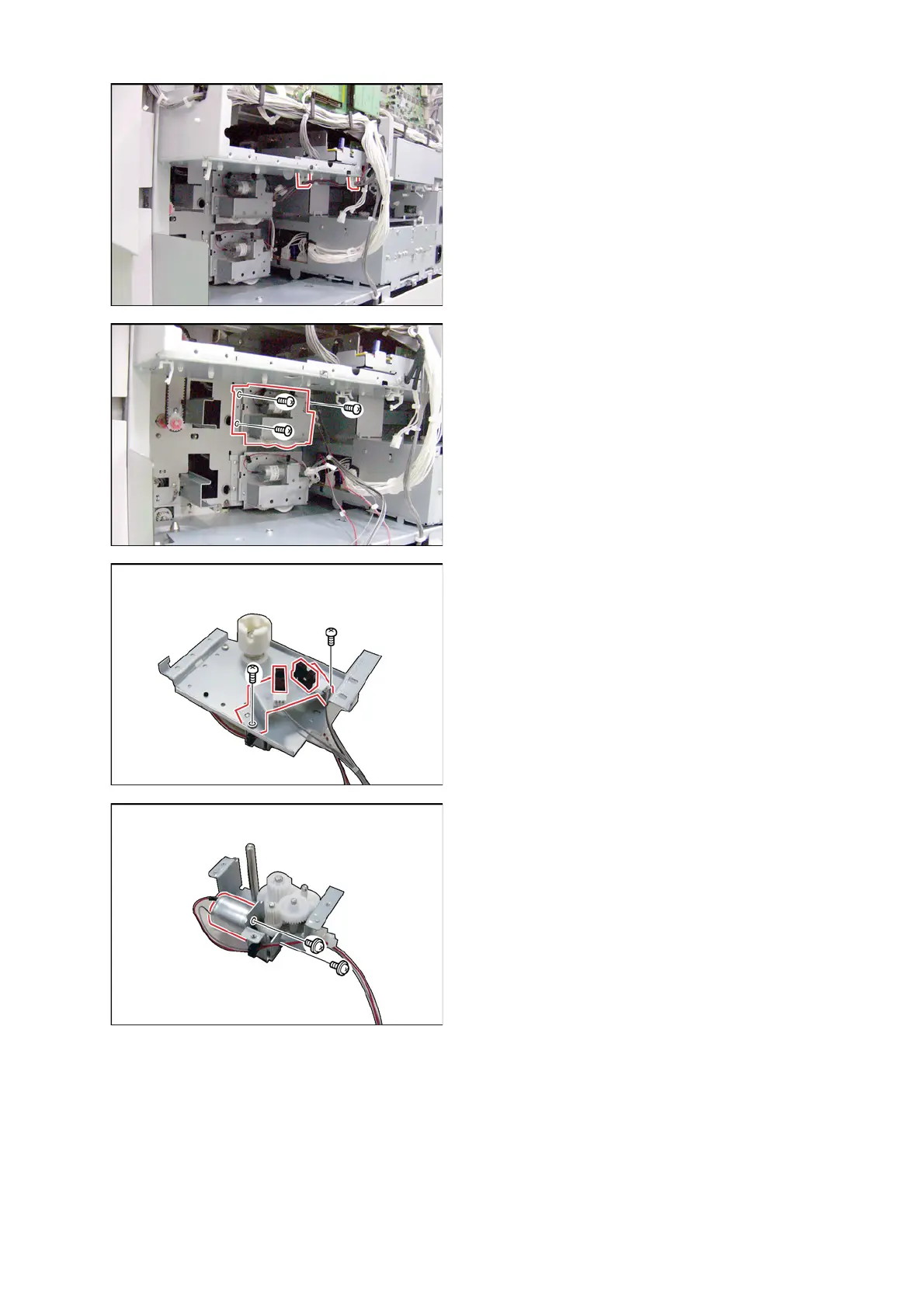

(31) Disconnect the Lift Up Motor Harness on the
SC PCB.
(32) Release the Harness from 2 Harness Clamps.
(33) Remove 3 Screws (X5).
(34) Remove the Lift Up Motor Assembly.
(35) Remove 2 Screws (X5).
(36) Remove the Lift Up Motor Bracket Assembly.
(37) Remove 2 Photo Sensors (1819-04, 1819-05).
(38) Remove 2 Screws (Y26).
(39) Remove the Lift Up Motor (2001).
