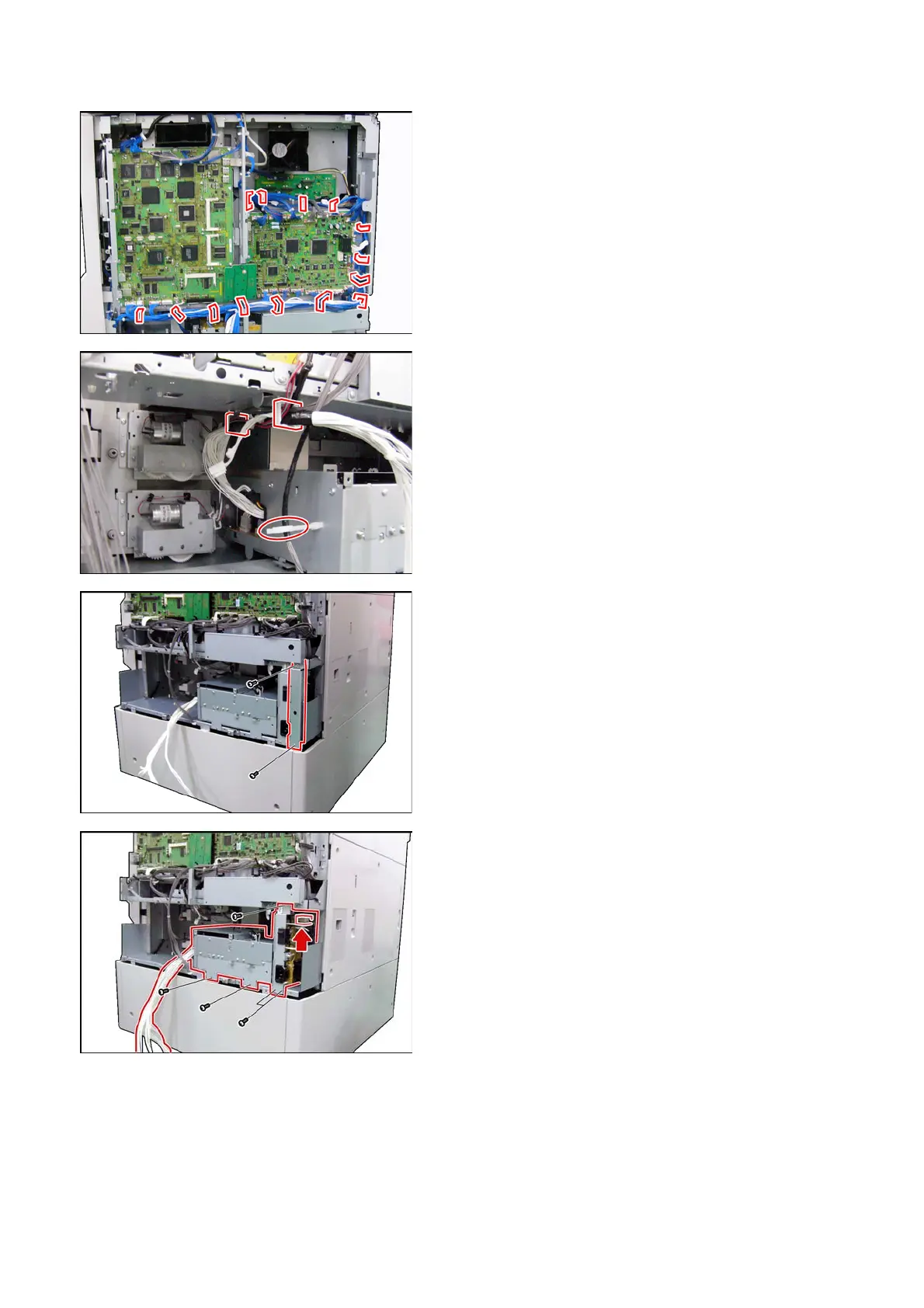

2.2.17. LVPS Unit
(1) Remove the Rear Cover Assembly.
(See sect. 2.2.15.)
(2) Disconnect 5 Harnesses; (CN52, and CN53) on
the SC PCB, (CN519, and CN520) on the EC
PCB, and the Intermediate Connector.
(3) Release the Harnesses from 14 Harness
Clamps.
(4) Release the Harnesses from 3 Harness
Clamps.
(5) Remove 2 Screws (X5).
(6) Remove the NFL 2 Bracket (4107).
(7) Disconnect 1 Harness on the NFL PCB
(CN132).
(8) Remove 5 Screws (X5).
(9) Remove the LVPS Unit.
