282
FEB 2008Ver. 1.1
DP-C405/C305/C265
SC PCB - CN71 (DP-C354/C322 Series Only)
Hardware Key I/F
SC PCB - CN12 (DP-C405 Series Only)
Hardware Key I/F
SC PCB - CN72 (DP-C354/C322 Series Only)
Hardware Key I/F
SC PCB - CN13 (DP-C405 Series Only)
Hardware Key I/F
SC PCB - CN73 (DP-C354/C322 Series Only)
Hardware Key I/F
SC PCB - CN99 (DP-C405 Series Only)
Hardware Key I/F
SC PCB - CN10 (DP-C405 Series Only)
SATA I/F
SC PCB - CN74 (DP-C354/C322 Series Only)
SC PCB

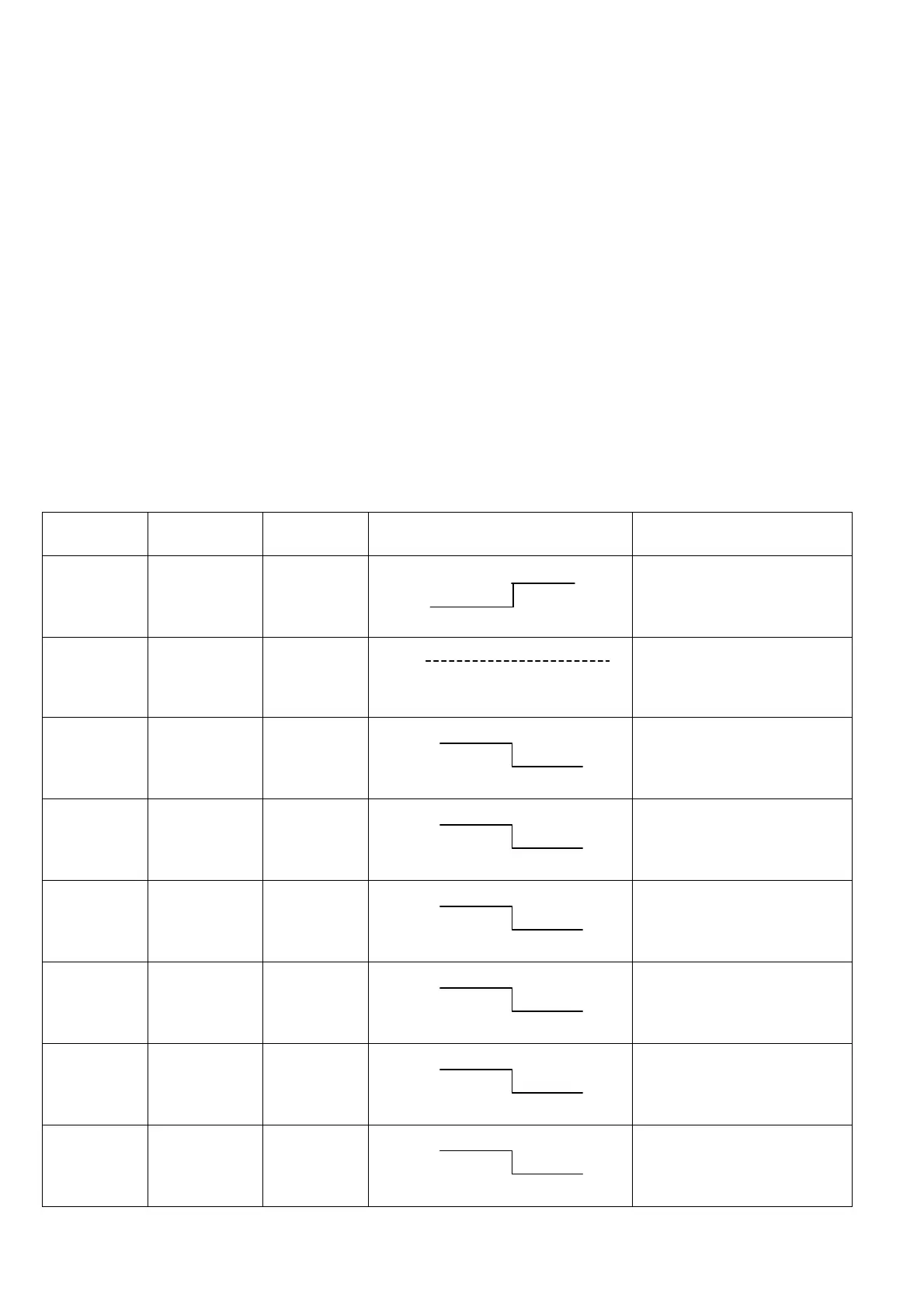

Pin No.
Signal Name Destination Signal Waveform Function
CN74-1 ATRST HDD Reset Signal
CN74-2 GND HDD Ground
CN74-3 ATD 7 HDD HDD Data Bus
CN74-4 ATD 8 HDD HDD Data Bus
CN74-5 ATD 6 HDD HDD Data Bus
CN74-6 ATD 9 HDD HDD Data Bus
CN74-7 ATD 5 HDD HDD Data Bus
CN74-8 ATD 10 HDD HDD Data Bus
0V
5V
RESET
0V
0V
5V
0V
5V
0V
5V
0V
5V
0V
5V
0V
5V
