Panasonic DP-C305 - Page 326

326
FEB 2008Ver. 1.1
DP-C405/C305/C265

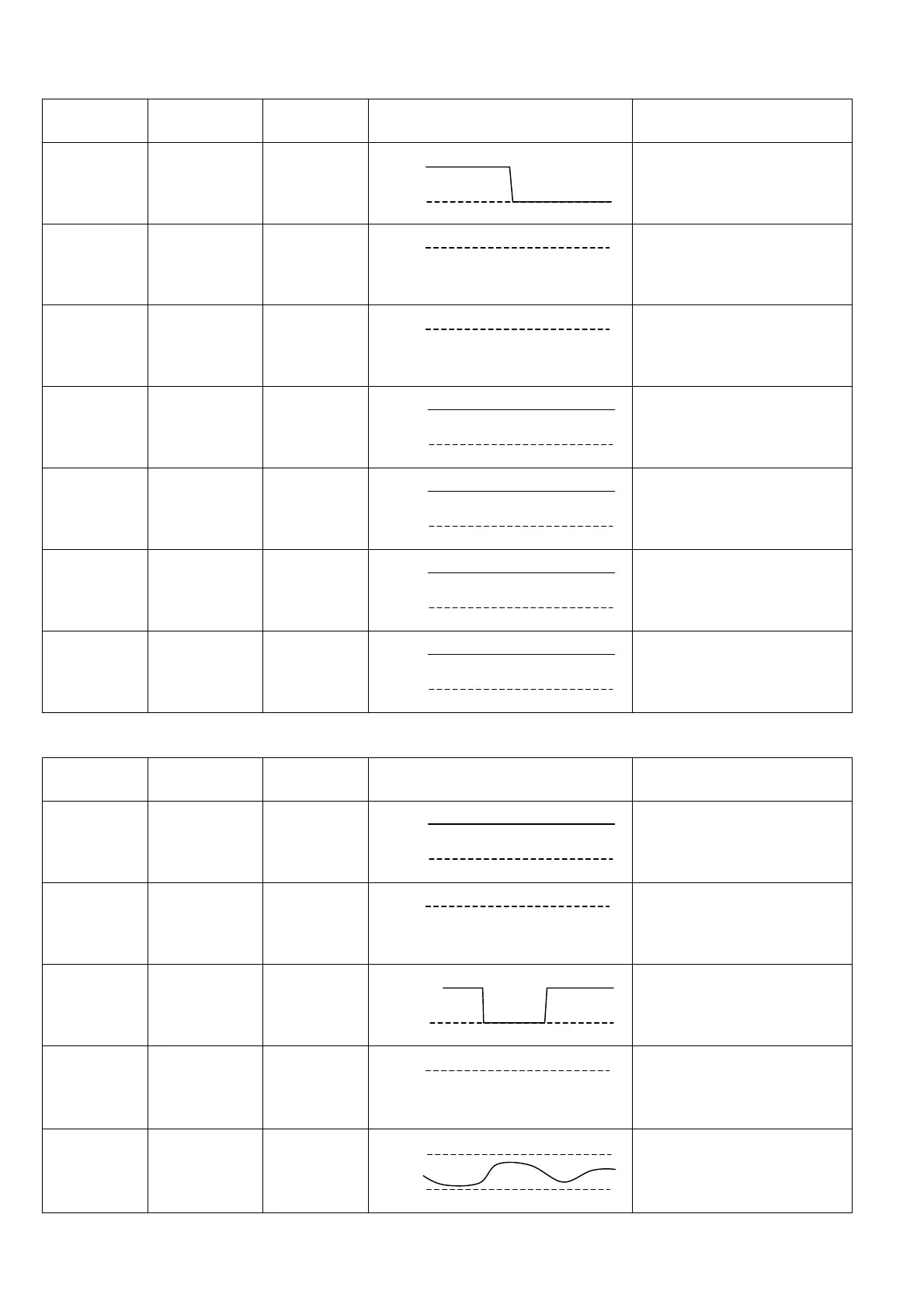

EC PCB - CN520
EC PCB - CN521
EC PCB
Pin No.
Signal Name Destination Signal Waveform Function
CN520-1 100V_200V
LVPS
CN5-7
100V/200V Identifying
Signal
CN520-2 GND_1
LVPS
CN5-6
Ground
CN520-3 GND_2
LVPS
CN5-5
Ground
CN520-4 +5V_1
LVPS
CN5-4
+5V DC Power Supply
CN520-5 +5V_2
LVPS
CN5-3
+5V DC Power Supply
CN520-6 +5VLSU_IN
LVPS
CN5-2
+5V DC Power Supply
CN520-7 +5VP
LVPS
CN5-1
+5V DC Power Supply
EC PCB
Pin No.
Signal Name Destination Signal Waveform Function
CN521-1 LDSHT
Shutter
Detection
Sensor
Shutter Open and Close
Detection Sensor Power
Supply
CN521-2 GND_1
Shutter
Detection
Sensor
Ground
CN521-3 nSHTSN
Shutter
Detection
Sensor
Open and Close Shutter
Detection Sensor
CN521-4 GND_2
Density &
Color
Deviation
Sensor
Ground
CN521-5 VO2R
Density &
Color
Deviation
Sensor
Diffuse Reflection Right
Input
+5V
0V
0V
0V
+5V
0V
+5V
0V
+5V
0V
+5V
0V
+5V
0V
0V
+5V
0V
0V
+5V
0V
