Panasonic DP-C305 - Page 332

332
FEB 2008Ver. 1.1
DP-C405/C305/C265

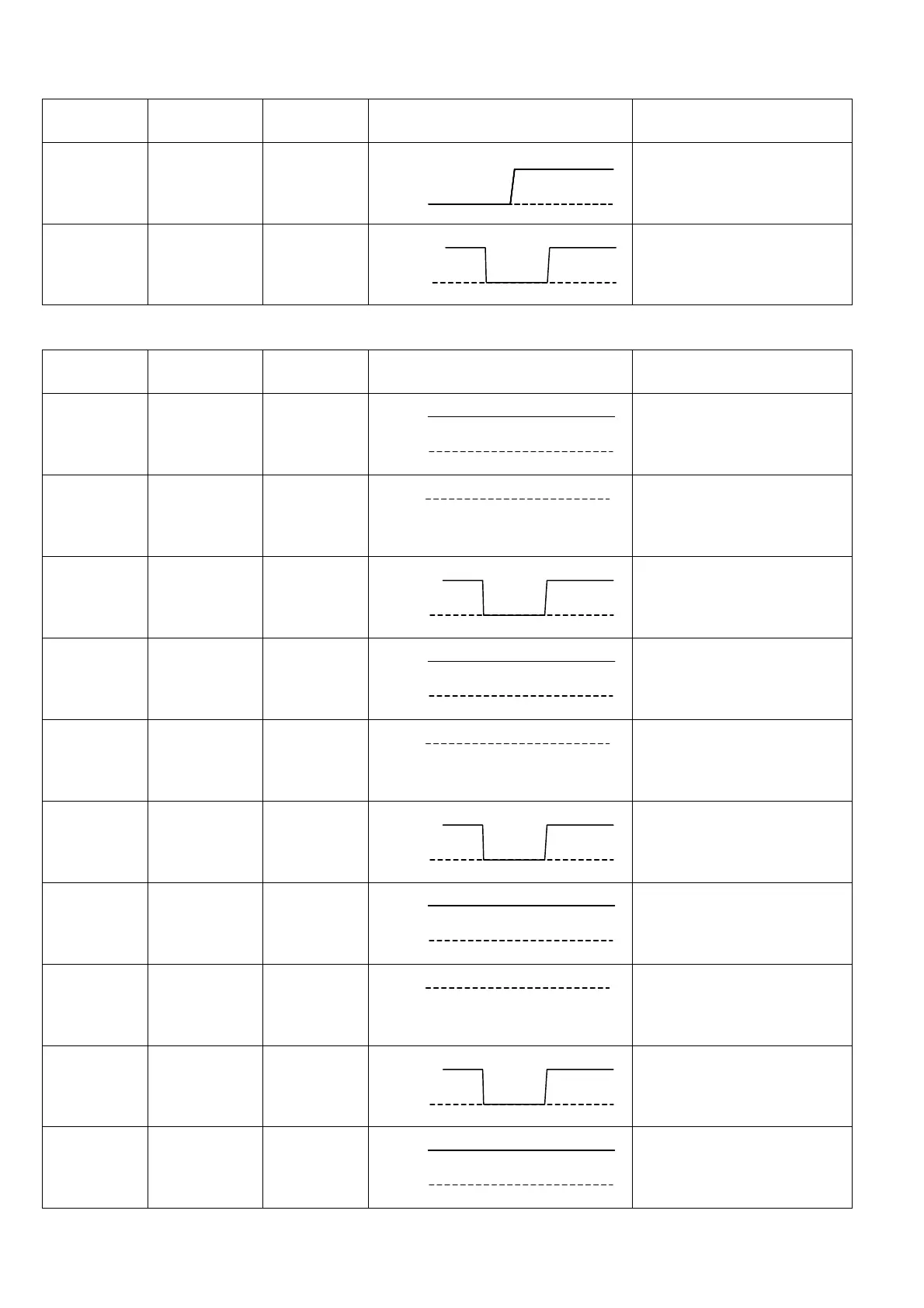

EC PCB - CN523
EC PCB - CN524
EC PCB
Pin No.
Signal Name Destination Signal Waveform Function
CN523-1 +24VM
Lift Motor
(Tray1)
+24V DC Power Supply
CN523-2 nLUM1
Lift Motor
(Tray1)
Lift Up Motor 1
EC PCB
Pin No.
Signal Name Destination Signal Waveform Function
CN524-1 LDCST1a
Paper Tray
Sensor 1
(Tray1)
Tray 1 Sensor a Power
Supply
CN524-2 GND_1
Paper Tray
Sensor 1
(Tray1)
Ground
CN524-3
Paper Tray
Sensor 1
(Tray1)
Tray 1 Detection Sensor
CN524-4
Paper Tray
Sensor 2
(Tray1)
Tray 1 Sensor b Power
Supply
CN524-5
Paper Tray
Sensor 2
(Tray1)
Ground
CN524-6 nCSTSN1b
Paper Tray
Sensor 2
(Tray1)
Tray 1 No Paper Sensor
(Paper Tray Sensor : Tray 1)
CN524-7 LDCST2a
Paper Tray
Sensor 1
(Tray2)
Tray 2 Sensor a Power
Supply
CN524-8 GND_3
Paper Tray
Sensor 1
(Tray2)
Ground
CN524-9 nCSTSN2a
Paper Tray
Sensor 1
(Tray2)
Tray 2 Detection Sensor
CN524-10 LDCST2b
Paper Tray
Sensor 2
(Tray2)
Tray 2 Sensor b Power
Supply
+24V
0V
+24V
0V
+5V
0V
0V
+5V
0V
+5V
0V
0V
+5V
0V
+5V
0V
0V
+5V
0V
+5V
0V
