EC PCB - CN525 (DP-C405 Series Only)
CN524-11 GND_4
Paper Tray
Sensor 2
(Tray2)
Ground
CN524-12 nCSTSN2b
Paper Tray
Sensor 2
(Tray2)
Tray 2 No Paper Sensor
(Paper Tray Sensor : Tray 2)
CN524-13 N.C. No Connection
CN524-14
(DP-C354/
C322 Series
Only)
N.C. No Connection
CN524-15
(DP-C354/
C322 Series
Only)
N.C. No Connection
EC PCB

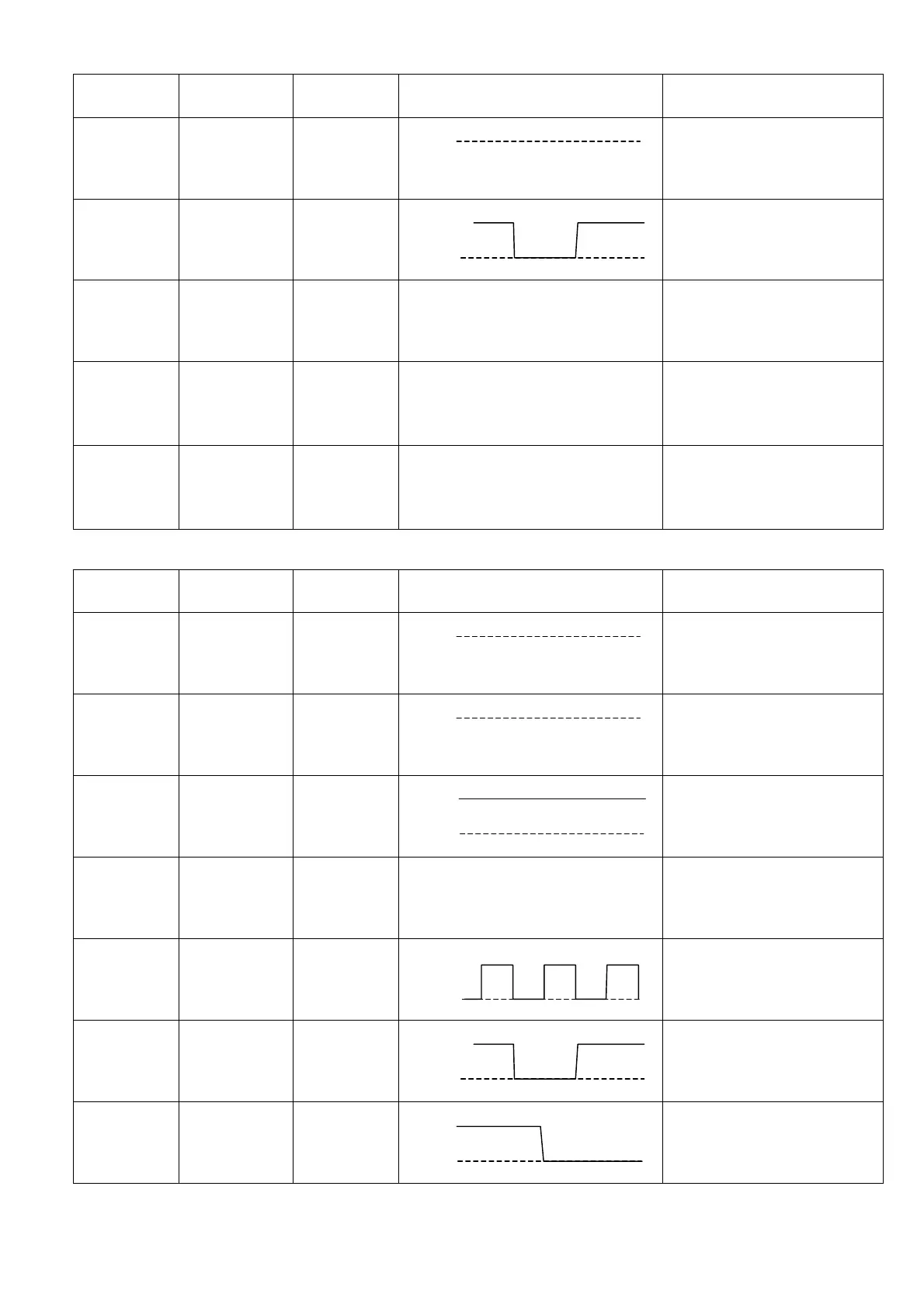

Pin No.
Signal Name Destination Signal Waveform Function
CN525-1 GND_2
CST PCB
CN601-14
Ground
CN525-2 GND_1
CST PCB
CN601-14
Ground
CN525-3 +5V
CST PCB
CN601-13
+5V DC Power Supply
CN525-4 N.C. No Connection
CN525-5 APFMCLK
CST PCB
CN601-12
APF Motor Clock
CN525-6 APFSIIN
CST PCB
CN601-11
APF Serial Data Input
CN525-7 APFLD
CST PCB
CN601-10
AFP Serial Load
EC PCB
Pin No.
Signal Name Destination Signal Waveform Function
0V
+5V
0V
0V
0V
+5V
0V
+5V
0V
+5V
0V
+5V
0V
To Next Page
