Panasonic DP-C305 - Page 334

334
FEB 2008Ver. 1.1
DP-C405/C305/C265

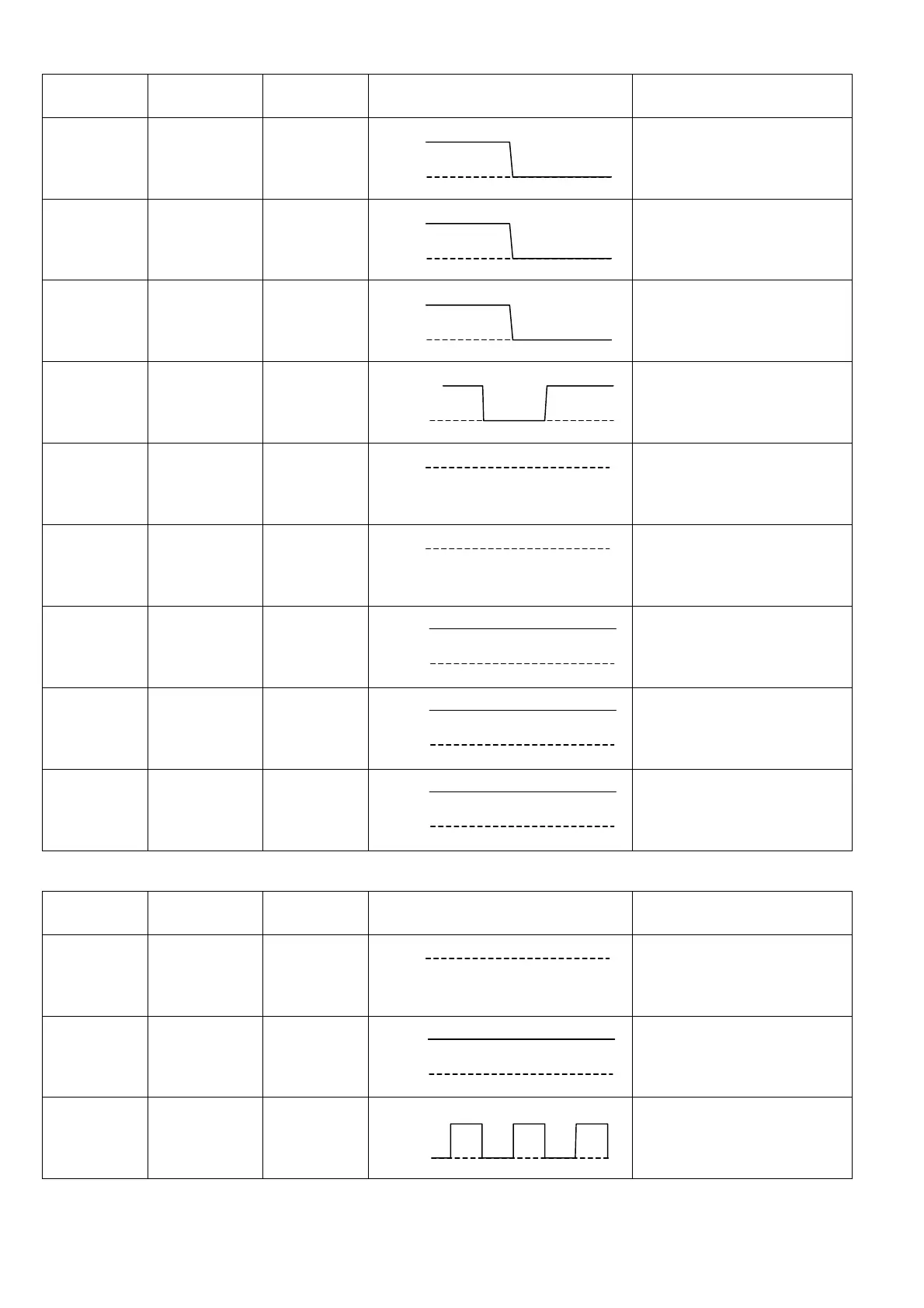

EC PCB - CN525 (DP-C354/C322 Series Only)
CN525-8 APFSICLK
CST PCB
CN601-9
APF Serial Clock
CN525-9 APFLT
CST PCB
CN601-8
AFP Serial Latch
CN525-10 nAPFENB
CST PCB
CN601-7
Serial Interface Enable
CN525-11 APFSIOUT
CST PCB
CN601-6
APF Serial Data Output
CN525-12 PGND_2
CST PCB
CN601-5
Power Ground
CN525-13 PGND_1
CST PCB
CN601-4
Power Ground
CN525-14 24VM_3
CST PCB
CN601-3
+24V DC Power Supply
CN525-15 +24VM_2
CST PCB
CN601-2
+24V DC Power Supply
CN525-16 +24VM_1
CST PCB
CN601-2
+24V DC Power Supply
EC PCB
Pin No.
Signal Name Destination Signal Waveform Function
CN525-1 GND
CST PCB
CN601-14
Ground
CN525-2 +5V
CST PCB
CN601-13
+5V DC Power Supply
CN525-3 APFMCLK
CST PCB
CN601-12
APF Motor Clock
EC PCB
Pin No.
Signal Name Destination Signal Waveform Function
+5V
0V
+5V
0V
+5V
0V
+5V
0V
0V
0V
+24V
0V
+24V
0V
+24V
0V
0V
+5V
0V
+5V
0V
