Panasonic DP-C305 - Page 335

335
FEB 2008Ver. 1.1
DP-C405/C305/C265

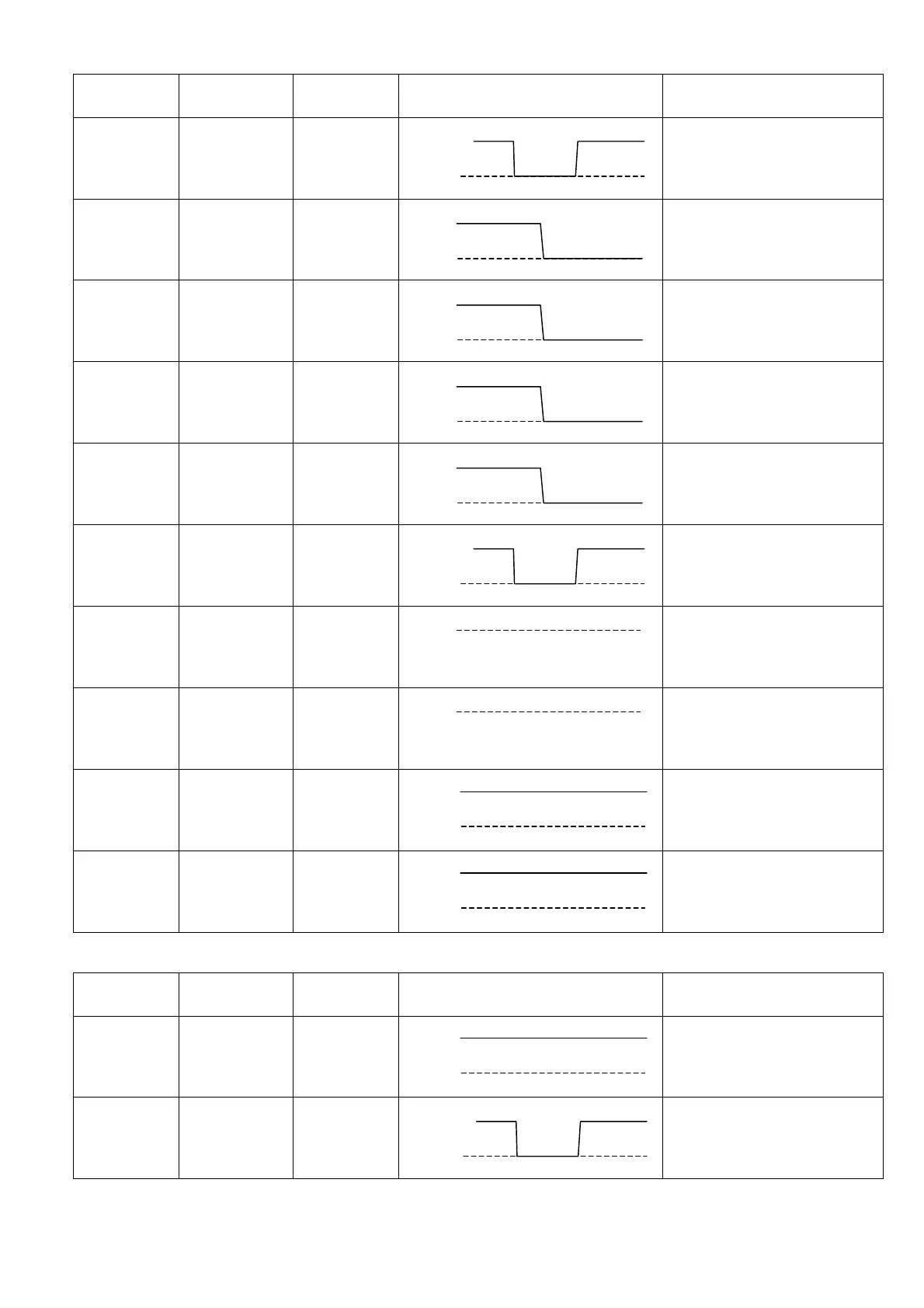

EC PCB - CN526
CN525-4 APFSIIN
CST PCB
CN601-11
APF Serial Data Input
CN525-5 APFLD
CST PCB
CN601-10
AFP Serial Load
CN525-6 APFSICLK
CST PCB
CN601-9
APF Serial Clock
CN525-7 APFLT
CST PCB
CN601-8
AFP Serial Latch
CN525-8 nAPFENB
CST PCB
CN601-7
Serial Interface Enable
CN525-9 APFSIOUT
CST PCB
CN601-6
APF Serial Data Output
CN525-10 PGND_1
CST PCB
CN601-5
Power Ground
CN525-11 PGND_2
CST PCB
CN601-4
Power Ground
CN525-12 +24VM_1
CST PCB
CN601-3
+24V DC Power Supply
CN525-13 +24VM_2
CST PCB
CN601-2
+24V DC Power Supply
EC PCB
Pin No.
Signal Name Destination Signal Waveform Function
CN526-1 +24VF_1
Paper Feed
Roller Clutch
(Tray2)
+24V DC Power Supply
CN526-2 nPFCL2
Paper Feed
Roller Clutch
(Tray2)
Tray 2 Feed Clutch Control
Signal
EC PCB
Pin No.
Signal Name Destination Signal Waveform Function
+5V
0V
+5V
0V
+5V
0V
+5V
0V
+5V
0V
+5V
0V
0V
0V
+24V
0V
+24V
0V
+24V
0V
+24V
0V
