63
DP-C405/C305/C265
FEB 2008Ver. 1.1

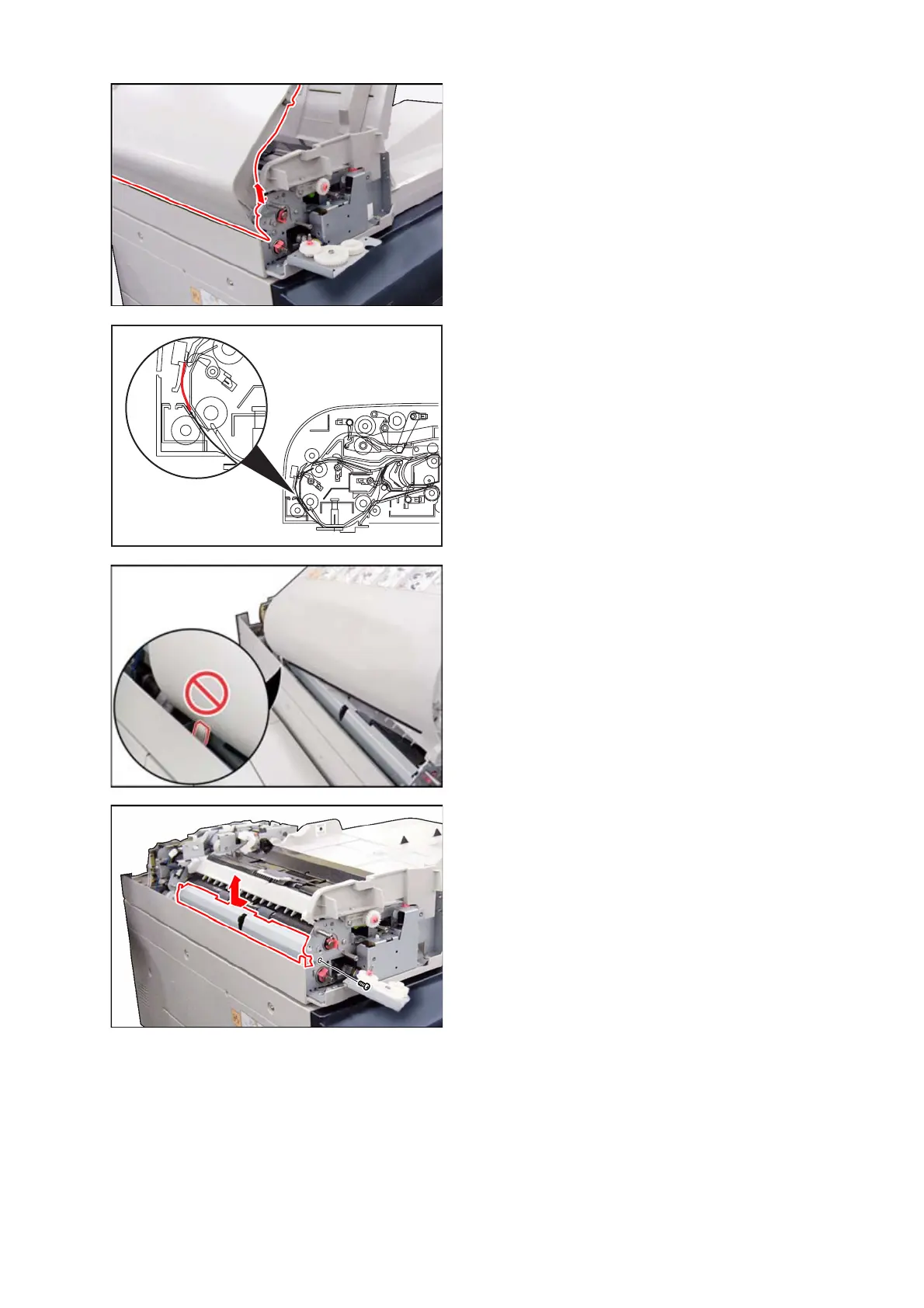

(34) Release the ADF Cover Arm (624).
(35) Remove the ADF Cover Assembly.
Note:
When reinstalling the ADF Cover Assembly, make
sure that the Vibration Guide Sheet 1 and 2 are
reinstalled properly as illustrated.
Note:
When reinstalling the ADF Cover Assembly, make
sure that the lever is positioned on the inside of the
ADF Cover.
The illustration on the left shows the incorrect lever
position.
(36) Remove 1 Screw (X5).
(37) Remove the Registration Guide 2 (721).
To Next Page
