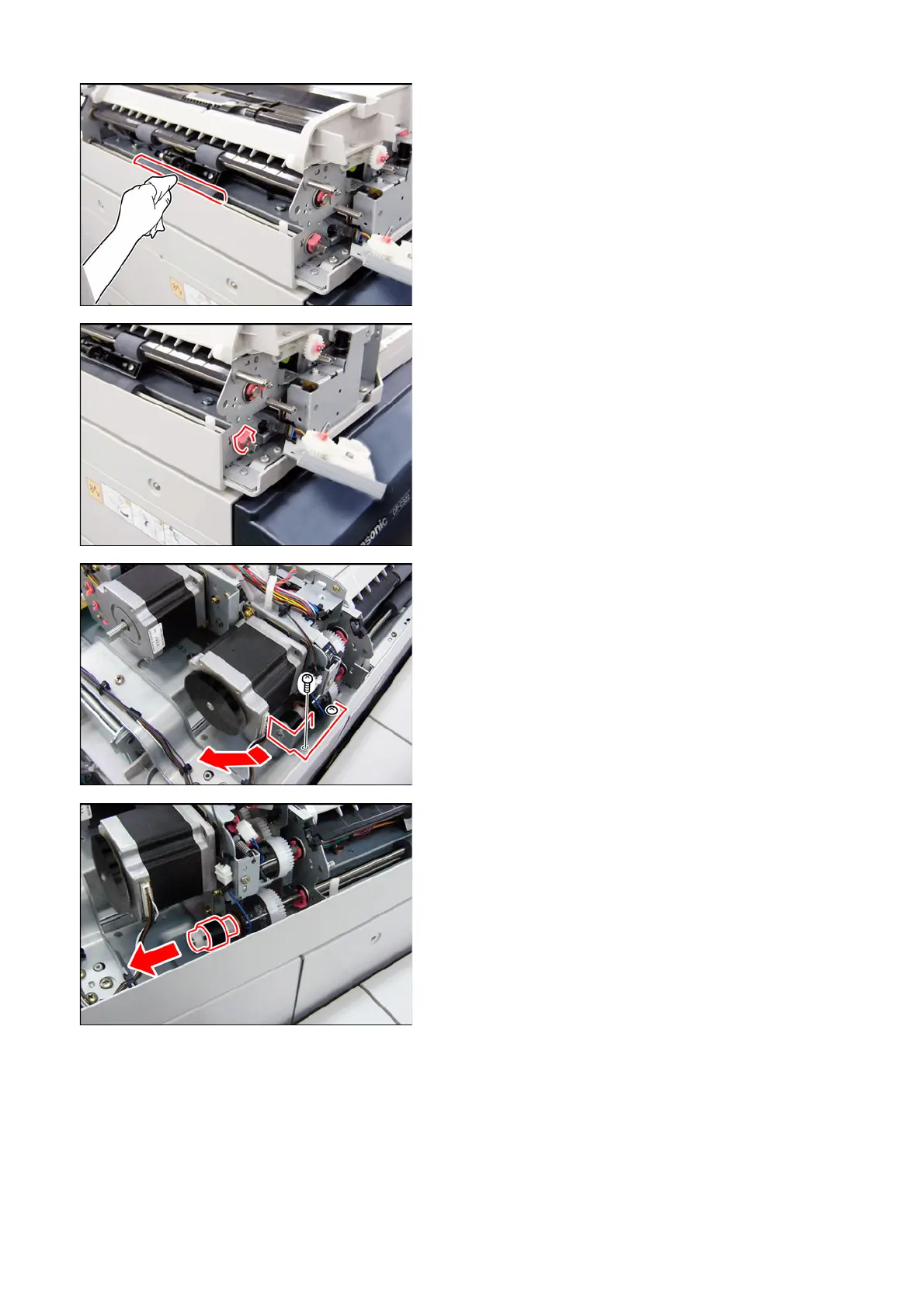

(38) Clean the Registration Roller 2 (818).
(39) Remove the Snap Ring (G6).
(40) Remove 1 Screw (X5).
(41) Loosen 1 Screw.
(42) Remove the Registration Limiter Bracket (829)
as illustrated.
(43) Remove the Limiter Joint (828).
(44) Remove the Registration Roller Torque
Limiter (827).
(45) Remove the Registration Joint (826).
