Panasonic DP-C305 - Page 65

65
DP-C405/C305/C265
FEB 2008Ver. 1.1

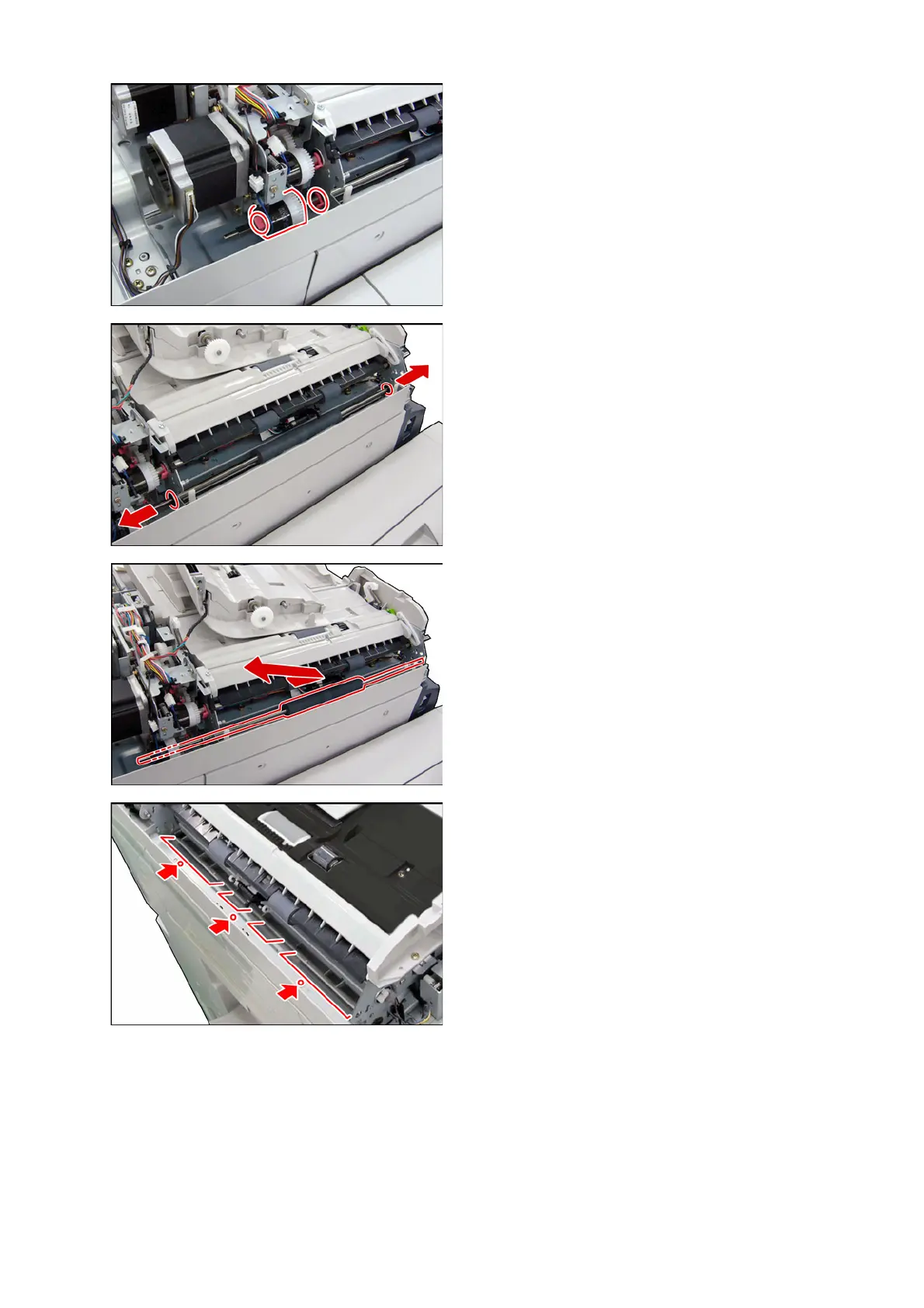

(46) Remove 2 Snap Rings (G6).
(47) Remove the Clutch 1 (801).
(48) Remove 2 D8 Bearings (822).
(49) Remove the Registration Roller 2 (818).
(50) Remove 2 Registration Guide Sheets 1 (1119),
and 2 Registration Guide Sheets 2 (1120).
Caution:
Do not remove the illustrated 3 Screws.
