Note:
When reinstalling the Registration Guide Sheet 1
and 2, make sure that the Sheets are placed on
the marks as illustrated.

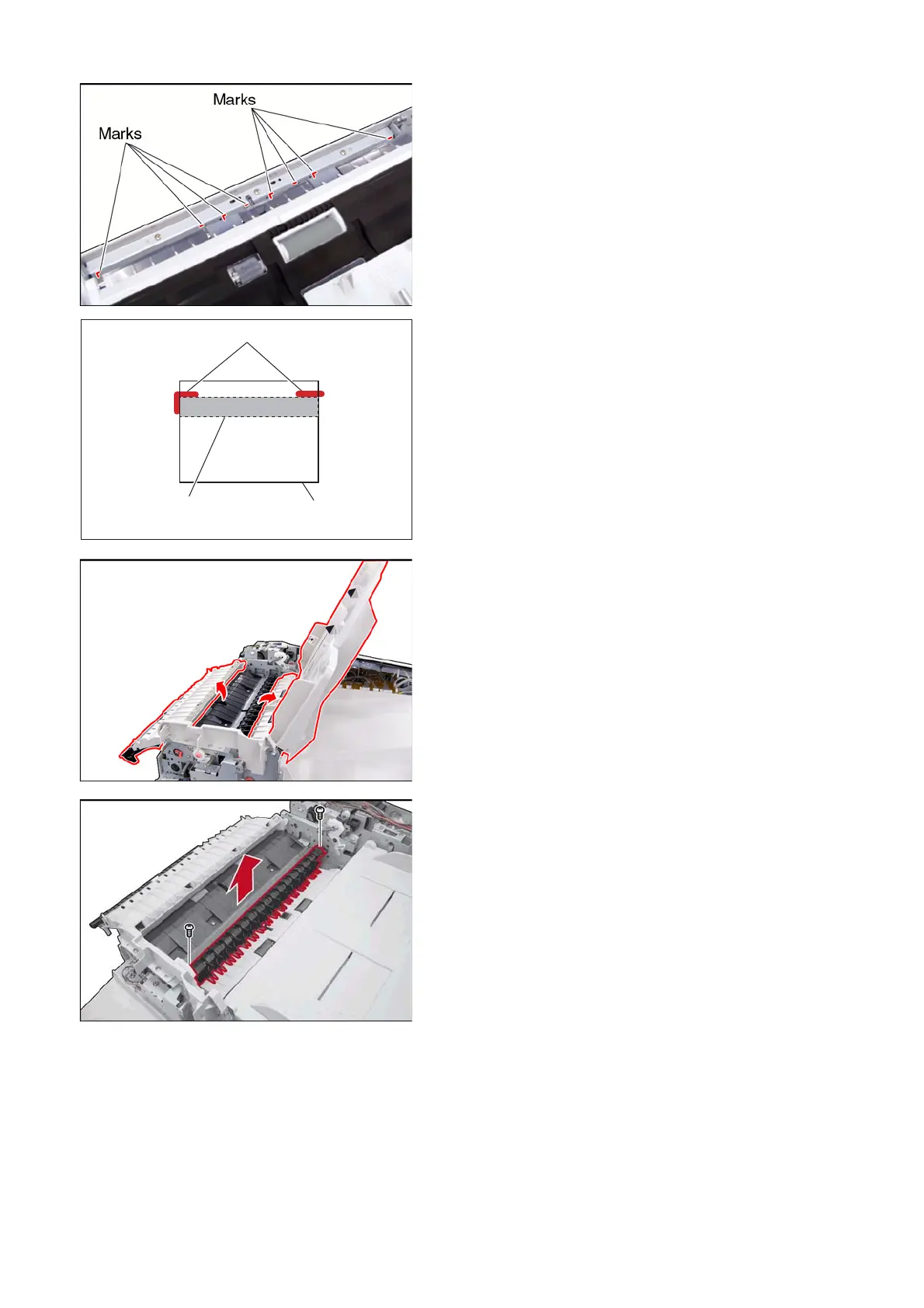

(51) Open the Lower Opening and Shutting Guide
Assembly.
(52) Lift the Original Tray Assembly.
(53) Lower the Inverting Guide Assembly.
(54) Remove 2 Screws (X5).
(55) Remove the Inverting Guide Assembly.
Mark
Registration
Guide Sheet
Double Coated
Adhesive Tape
To Next Page
