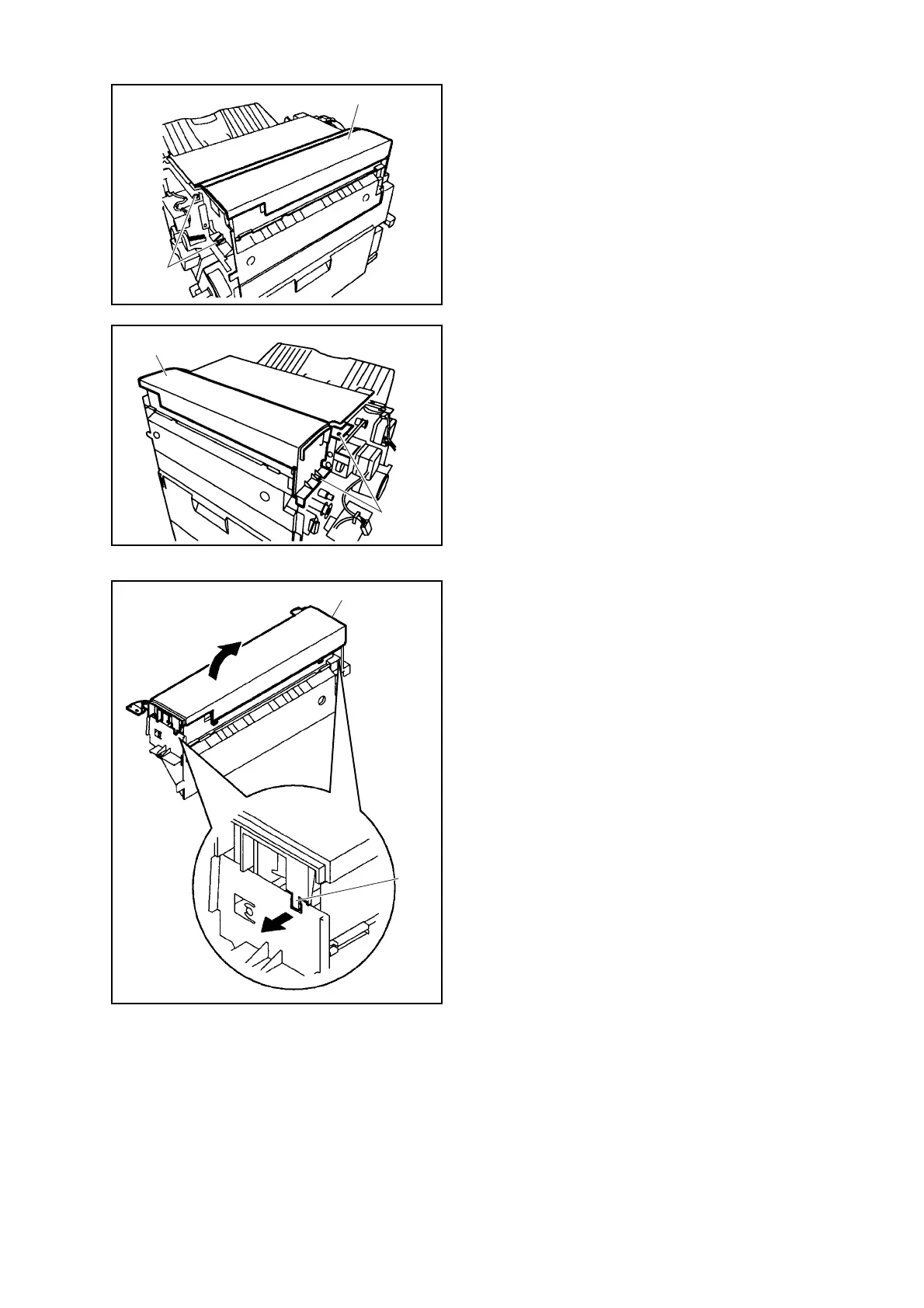

(10) Remove 2 Screws at the front of the Finisher.
(11) Remove 2 Screws on the back of the Finisher,
and detach the Upper-Right Cover Assembly.
3. Attaching to the Finisher
(1) Unlock the Latches, and remove the
Upper-Right Cover Assembly outward, then
remove the Upper-Right Cover.
Upper-Right Cover Assembly
Screws
Screws
Upper-Right Cover Assembly
Upper-Right Cover
Latch
To Next Page
